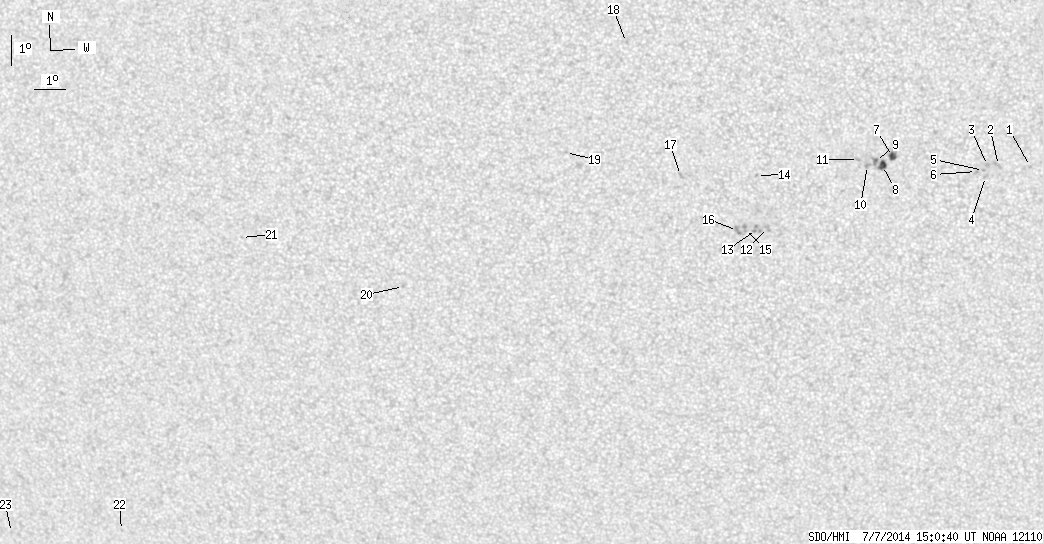

SDO HMI 2014-07-07 15:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 6.90 | 57.40 | 3.63 | 30.51 | -16.56 | 233.76 | 0.69 | 183.50 | 0.3581 | 76.9 | -8.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-07 15:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.09 | 0.00 | 0.58 | -15.58 | 241.27 | 8.20 | 202.78 | 0.3563 | 718.0 | 582.6 | |
| 0.00 | 3.09 | 0.00 | 1.63 | -15.53 | 240.24 | 7.18 | 200.23 | 0.3495 | 843.0 | 680.2 | |
| 0.00 | 2.27 | 0.00 | 1.20 | -15.53 | 239.89 | 6.83 | 199.33 | 0.3475 | 772.0 | 659.6 | |
| 0.00 | 2.27 | 0.00 | 1.20 | -15.89 | 239.84 | 6.77 | 198.84 | 0.3527 | 647.0 | 522.2 | |
| 0.00 | 1.18 | 0.00 | 0.62 | -15.69 | 239.77 | 6.70 | 198.85 | 0.3493 | 914.0 | 690.5 | |
| 0.00 | 2.36 | 0.00 | 1.25 | -15.72 | 239.55 | 6.48 | 198.24 | 0.3486 | 774.0 | 606.6 | |
| 3.18 | 5.27 | 1.67 | 2.76 | -15.22 | 236.87 | 3.80 | 191.25 | 0.3294 | 1033.6 | 766.0 | |
| 3.72 | 5.63 | 1.96 | 2.96 | -15.51 | 236.56 | 3.49 | 190.19 | 0.3331 | 989.7 | 712.1 | |
| 0.00 | 3.81 | 0.00 | 2.00 | -15.38 | 236.34 | 3.27 | 189.61 | 0.3303 | 1068.0 | 874.3 | |
| 0.00 | 2.54 | 0.00 | 1.33 | -15.50 | 236.08 | 3.01 | 188.83 | 0.3318 | 882.0 | 742.6 | |
| 0.00 | 2.00 | 0.00 | 1.05 | -15.31 | 235.80 | 2.73 | 188.08 | 0.3279 | 809.0 | 677.1 | |
| 0.00 | 3.81 | 0.00 | 2.03 | -17.51 | 232.92 | -0.15 | 179.59 | 0.3609 | -946.0 | -707.6 | |
| 0.00 | 5.36 | 0.00 | 2.85 | -17.57 | 232.56 | -0.50 | 178.67 | 0.3620 | -803.0 | -755.1 | |
| 0.00 | 1.09 | 0.00 | 0.57 | -15.82 | 232.57 | -0.50 | 178.56 | 0.3332 | -916.0 | -693.9 | |
| 0.00 | 3.18 | 0.00 | 1.69 | -17.54 | 232.18 | -0.89 | 177.65 | 0.3617 | -939.0 | -819.8 | |
| 0.00 | 4.00 | 0.00 | 2.12 | -17.61 | 231.96 | -1.11 | 177.07 | 0.3629 | -737.0 | -641.7 | |
| 0.00 | 2.72 | 0.00 | 1.43 | -15.82 | 230.16 | -2.91 | 171.63 | 0.3366 | -795.0 | -615.9 | |
| 0.00 | 1.00 | 0.00 | 0.51 | -11.58 | 228.54 | -4.53 | 163.47 | 0.2733 | -710.0 | -485.9 | |
| 0.00 | 0.91 | 0.00 | 0.48 | -15.09 | 226.53 | -6.54 | 161.00 | 0.3392 | -707.0 | -483.0 | |
| 0.00 | 1.27 | 0.00 | 0.70 | -19.52 | 221.05 | -12.01 | 153.33 | 0.4389 | -778.0 | -618.0 | |
| 0.00 | 1.09 | 0.00 | 0.61 | -17.98 | 215.80 | -17.27 | 142.23 | 0.4629 | -617.0 | -392.9 | |
| 0.00 | 0.73 | 0.00 | 0.46 | -28.11 | 209.93 | -23.13 | 146.34 | 0.6275 | -607.0 | -510.1 | |
| 0.00 | 0.73 | 0.00 | 0.48 | -28.29 | 205.67 | -27.40 | 142.16 | 0.6627 | -643.0 | -569.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
