SDO HMI 2014-07-07 15:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 36.97 | 165.90 | 20.91 | 94.47 | 6.59 | 203.63 | -29.44 | 82.87 | 0.4937 | -582.9 | -301.1 | |
|
previous
or next observation for the same group /

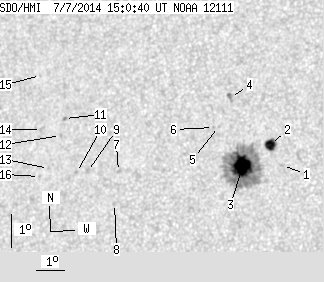

back to the solar disc SDO HMI 2014-07-07 15:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.27 | 0.00 | 0.71 | 6.55 | 205.48 | -27.59 | 82.66 | 0.4657 | -196.0 | -200.8 | |
| 8.45 | 11.08 | 4.75 | 6.22 | 7.18 | 205.03 | -28.04 | 81.41 | 0.4736 | -964.1 | -611.9 | |
| 28.52 | 135.58 | 16.16 | 76.81 | 6.48 | 204.09 | -28.98 | 83.04 | 0.4869 | -1211.5 | -385.1 | |
| 0.00 | 3.81 | 0.00 | 2.18 | 8.57 | 203.52 | -29.55 | 78.92 | 0.4989 | -798.0 | -643.7 | |
| 0.00 | 0.45 | 0.00 | 0.26 | 7.67 | 203.16 | -29.91 | 80.80 | 0.5026 | -728.0 | -523.0 | |
| 0.00 | 0.82 | 0.00 | 0.47 | 7.64 | 202.99 | -30.08 | 80.90 | 0.5051 | -489.0 | -408.0 | |
| 0.00 | 1.45 | 0.00 | 0.86 | 6.19 | 199.66 | -33.41 | 84.14 | 0.5524 | 542.0 | 472.3 | |
| 0.00 | 1.54 | 0.00 | 0.92 | 5.21 | 199.57 | -33.49 | 85.92 | 0.5531 | 691.0 | 539.8 | |
| 0.00 | 2.18 | 0.00 | 1.31 | 6.15 | 198.51 | -34.56 | 84.31 | 0.5689 | 626.0 | 500.6 | |
| 0.00 | 1.27 | 0.00 | 0.77 | 6.11 | 198.10 | -34.96 | 84.42 | 0.5747 | 680.0 | 572.0 | |
| 0.00 | 1.54 | 0.00 | 0.94 | 7.74 | 197.51 | -35.55 | 81.66 | 0.5845 | 745.0 | 627.4 | |
| 0.00 | 0.82 | 0.00 | 0.50 | 7.21 | 197.41 | -35.66 | 82.57 | 0.5854 | 595.0 | 439.7 | |
| 0.00 | 0.82 | 0.00 | 0.50 | 6.19 | 197.04 | -36.03 | 84.35 | 0.5898 | 557.0 | 445.3 | |
| 0.00 | 2.09 | 0.00 | 1.29 | 7.37 | 196.67 | -36.40 | 82.39 | 0.5959 | 483.0 | 460.7 | |
| 0.00 | 0.27 | 0.00 | 0.17 | 9.02 | 196.46 | -36.61 | 79.67 | 0.6009 | 459.0 | 469.0 | |
| 0.00 | 0.91 | 0.00 | 0.56 | 5.94 | 196.72 | -36.35 | 84.81 | 0.5942 | 643.0 | 510.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
