SDO HMI 2014-07-07 15:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 8.63 | 0.00 | 5.27 | 18.02 | 199.70 | -33.37 | 63.60 | 0.5859 | -698.0 | -583.5 | |
|
previous
or next observation for the same group /

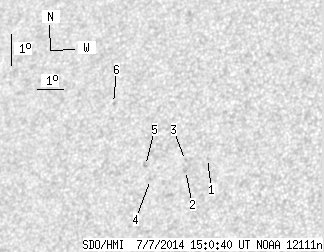

back to the solar disc SDO HMI 2014-07-07 15:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.82 | 0.00 | 0.49 | 18.04 | 201.47 | -31.60 | 62.55 | 0.5636 | -704.0 | -581.9 | |
| 0.00 | 1.91 | 0.00 | 1.15 | 17.64 | 200.72 | -32.35 | 63.66 | 0.5712 | -792.0 | -643.9 | |
| 0.00 | 1.27 | 0.00 | 0.77 | 17.95 | 200.65 | -32.42 | 63.18 | 0.5736 | -633.0 | -576.6 | |
| 0.00 | 1.36 | 0.00 | 0.83 | 17.31 | 199.45 | -33.62 | 64.89 | 0.5860 | -596.0 | -544.1 | |
| 0.00 | 1.91 | 0.00 | 1.17 | 17.74 | 199.16 | -33.91 | 64.34 | 0.5916 | -828.0 | -641.1 | |
| 0.00 | 1.36 | 0.00 | 0.86 | 19.65 | 197.46 | -35.61 | 62.27 | 0.6217 | -635.0 | -469.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
