SDO HMI 2014-07-07 15:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 18.35 | 73.83 | 24.55 | 100.86 | 8.88 | 164.18 | -68.89 | 81.85 | 0.9325 | -401.0 | -7.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-07 15:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |

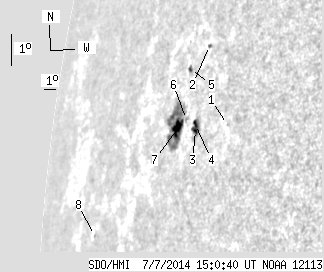

| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.27 | 0.00 | 0.32 | 9.15 | 167.91 | -65.16 | 81.56 | 0.9075 | -135.0 | -119.0 | |
| 0.36 | 1.27 | 0.47 | 1.63 | 11.46 | 165.54 | -67.53 | 79.06 | 0.9241 | -312.5 | -217.2 | |
| 2.91 | 11.44 | 3.73 | 14.68 | 8.83 | 165.53 | -67.54 | 81.91 | 0.9240 | -625.6 | -349.6 | |
| 3.00 | -3.00 | 3.85 | -3.00 | 9.01 | 165.46 | -67.61 | 81.71 | 0.9244 | -580.9 | 999999 | |
| 1.09 | 2.63 | 1.47 | 3.55 | 10.65 | 164.33 | -68.74 | 79.95 | 0.9317 | 426.6 | 336.4 | |
| 0.00 | 1.91 | 0.00 | 2.53 | 9.12 | 164.67 | -68.40 | 81.59 | 0.9296 | -588.0 | -507.3 | |
| 10.99 | 55.49 | 15.03 | 76.47 | 8.81 | 164.02 | -69.05 | 81.93 | 0.9336 | -434.2 | 40.8 | |
| 0.00 | 0.82 | 0.00 | 1.68 | 5.09 | 156.76 | -76.30 | 85.63 | 0.9716 | 203.0 | 168.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
