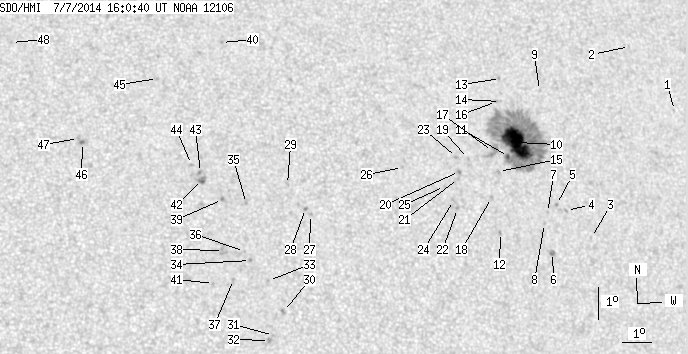

SDO HMI 2014-07-07 16:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 49.48 | 313.99 | 28.60 | 179.63 | 14.77 | 260.42 | 27.90 | 294.23 | 0.4971 | -420.1 | -228.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-07 16:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.64 | 0.00 | 0.39 | 15.95 | 267.79 | 35.28 | 292.11 | 0.6016 | -719.0 | -561.7 | |
| 0.00 | 0.73 | 0.00 | 0.45 | 18.01 | 266.49 | 33.97 | 296.04 | 0.5937 | -747.0 | -508.6 | |
| 0.00 | 1.00 | 0.00 | 0.59 | 12.13 | 264.02 | 31.51 | 287.19 | 0.5369 | 503.0 | 330.5 | |
| 0.00 | 1.45 | 0.00 | 0.85 | 12.99 | 263.23 | 30.71 | 289.11 | 0.5287 | -576.0 | -405.1 | |
| 0.00 | 1.36 | 0.00 | 0.79 | 13.19 | 262.89 | 30.38 | 289.63 | 0.5248 | -760.0 | -588.5 | |
| 0.00 | 3.54 | 0.00 | 2.04 | 11.71 | 262.55 | 30.04 | 287.02 | 0.5147 | -869.0 | -755.8 | |
| 0.00 | 0.73 | 0.00 | 0.42 | 12.95 | 262.53 | 30.02 | 289.37 | 0.5188 | -660.0 | -645.2 | |
| 0.00 | 0.91 | 0.00 | 0.52 | 12.62 | 262.38 | 29.87 | 288.81 | 0.5154 | -734.0 | -612.8 | |
| 0.00 | 1.27 | 0.00 | 0.75 | 16.74 | 262.83 | 30.32 | 296.05 | 0.5401 | 414.0 | 340.9 | |
| 47.94 | 233.72 | 27.71 | 135.28 | 15.15 | 261.73 | 29.21 | 293.89 | 0.5173 | -1254.8 | -338.2 | |
| 1.54 | -10.00 | 0.89 | -10.00 | 14.73 | 261.38 | 28.86 | 293.31 | 0.5103 | -944.9 | 999999 | |
| 0.00 | 1.82 | 0.00 | 1.03 | 12.39 | 260.78 | 28.26 | 289.17 | 0.4916 | -889.0 | -600.5 | |
| 0.00 | 0.64 | 0.00 | 0.37 | 17.16 | 261.47 | 28.96 | 297.68 | 0.5245 | 641.0 | 612.1 | |
| 0.00 | 0.27 | 0.00 | 0.16 | 16.44 | 261.35 | 28.84 | 296.48 | 0.5189 | -613.0 | -632.3 | |
| 0.00 | 1.45 | 0.00 | 0.83 | 14.27 | 260.95 | 28.44 | 292.72 | 0.5023 | -900.0 | -761.3 | |
| 0.00 | 1.00 | 0.00 | 0.58 | 16.45 | 261.21 | 28.69 | 296.59 | 0.5170 | -792.0 | -661.1 | |
| 0.00 | 10.44 | 0.00 | 5.98 | 14.90 | 260.83 | 28.31 | 293.98 | 0.5036 | -741.0 | -852.3 | |
| 0.00 | 1.45 | 0.00 | 0.83 | 13.48 | 260.59 | 28.08 | 291.40 | 0.4936 | -780.0 | -643.7 | |
| 0.00 | 1.09 | 0.00 | 0.62 | 14.71 | 259.94 | 27.43 | 294.19 | 0.4904 | -907.0 | -686.2 | |
| 0.00 | 1.82 | 0.00 | 1.03 | 14.31 | 259.57 | 27.05 | 293.67 | 0.4831 | -847.0 | -751.0 | |
| 0.00 | 1.45 | 0.00 | 0.82 | 14.10 | 259.51 | 26.99 | 293.29 | 0.4812 | -783.0 | -564.8 | |
| 0.00 | 1.36 | 0.00 | 0.77 | 13.17 | 259.35 | 26.84 | 291.54 | 0.4745 | -836.0 | -646.4 | |
| 0.00 | 1.54 | 0.00 | 0.87 | 14.75 | 259.52 | 27.01 | 294.56 | 0.4848 | -811.0 | -601.4 | |
| 0.00 | 2.36 | 0.00 | 1.33 | 13.42 | 259.24 | 26.73 | 292.12 | 0.4742 | -882.0 | -661.6 | |
| 0.00 | 1.00 | 0.00 | 0.56 | 13.86 | 258.98 | 26.47 | 293.18 | 0.4726 | -849.0 | -693.8 | |
| 0.00 | 0.91 | 0.00 | 0.51 | 14.49 | 257.59 | 25.08 | 295.46 | 0.4564 | 511.0 | 384.8 | |
| 0.00 | 1.73 | 0.00 | 0.93 | 13.12 | 254.29 | 21.78 | 295.25 | 0.4012 | 454.0 | 365.4 | |
| 0.00 | 1.54 | 0.00 | 0.83 | 13.31 | 254.14 | 21.63 | 295.83 | 0.4002 | 945.0 | 802.5 | |
| 0.00 | 1.73 | 0.00 | 0.93 | 14.06 | 253.61 | 21.10 | 298.10 | 0.3974 | 609.0 | 609.6 | |
| 0.00 | 2.36 | 0.00 | 1.26 | 10.15 | 253.15 | 20.64 | 288.91 | 0.3683 | 821.0 | 703.0 | |
| 0.00 | 1.18 | 0.00 | 0.63 | 9.43 | 252.77 | 20.26 | 287.25 | 0.3592 | 759.0 | 612.2 | |
| 0.00 | 2.45 | 0.00 | 1.30 | 9.28 | 252.63 | 20.12 | 286.94 | 0.3564 | 937.0 | 783.3 | |
| 0.00 | 1.00 | 0.00 | 0.53 | 11.12 | 252.72 | 20.21 | 291.77 | 0.3665 | 681.0 | 549.0 | |
| 0.00 | 1.36 | 0.00 | 0.72 | 11.74 | 252.17 | 19.66 | 293.90 | 0.3618 | 820.0 | 655.4 | |
| 0.00 | 1.09 | 0.00 | 0.58 | 13.50 | 252.19 | 19.67 | 298.31 | 0.3734 | 765.0 | 569.9 | |
| 0.00 | 0.82 | 0.00 | 0.43 | 12.03 | 252.00 | 19.48 | 294.81 | 0.3609 | 640.0 | 538.6 | |
| 0.00 | 1.18 | 0.00 | 0.62 | 11.17 | 251.57 | 19.06 | 292.99 | 0.3495 | 875.0 | 690.5 | |
| 0.00 | 5.99 | 0.00 | 3.17 | 12.07 | 251.31 | 18.79 | 295.66 | 0.3510 | 619.0 | 739.7 | |
| 0.00 | 1.45 | 0.00 | 0.77 | 13.64 | 251.40 | 18.89 | 299.57 | 0.3632 | 1039.0 | 895.1 | |
| 0.00 | 1.27 | 0.00 | 0.69 | 18.54 | 251.87 | 19.35 | 309.82 | 0.4107 | 745.0 | 659.3 | |
| 0.00 | 1.18 | 0.00 | 0.62 | 11.06 | 250.91 | 18.39 | 293.36 | 0.3388 | 829.0 | 618.4 | |
| 0.00 | 5.27 | 0.00 | 2.79 | 14.28 | 250.79 | 18.28 | 301.89 | 0.3595 | 1062.0 | 910.8 | |
| 0.00 | 1.54 | 0.00 | 0.82 | 14.50 | 250.74 | 18.23 | 302.48 | 0.3606 | 937.0 | 818.6 | |
| 0.00 | 1.63 | 0.00 | 0.87 | 14.75 | 250.47 | 17.95 | 303.47 | 0.3589 | 841.0 | 632.6 | |
| 0.00 | 1.18 | 0.00 | 0.63 | 17.45 | 249.59 | 17.07 | 310.93 | 0.3723 | 771.0 | 582.0 | |
| 0.00 | 2.09 | 0.00 | 1.09 | 15.50 | 246.94 | 14.43 | 311.01 | 0.3196 | 1079.0 | 924.9 | |
| 0.00 | 1.18 | 0.00 | 0.62 | 15.62 | 246.82 | 14.31 | 311.56 | 0.3194 | 785.0 | 654.6 | |
| 0.00 | 0.82 | 0.00 | 0.43 | 18.67 | 244.85 | 12.34 | 322.32 | 0.3326 | 888.0 | 714.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
