SDO HMI 2014-07-07 16:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 453.53 | 2336.53 | 230.74 | 1189.48 | -7.10 | 239.83 | 7.31 | 212.88 | 0.2286 | 52.6 | 78.9 | |
|
previous
or next observation for the same group /

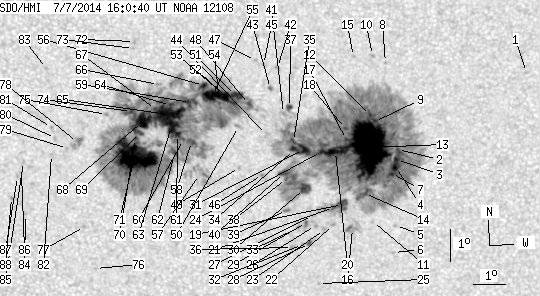

back to the solar disc SDO HMI 2014-07-07 16:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.27 | 0.00 | 0.66 | -4.99 | 247.79 | 15.28 | 240.85 | 0.3019 | 675.0 | 615.2 | |
| 0.27 | 1207.40 | 0.14 | 618.54 | -7.31 | 243.79 | 11.27 | 225.99 | 0.2707 | 956.7 | 462.8 | |
| 2.72 | -2.00 | 1.40 | -2.00 | -7.62 | 243.76 | 11.25 | 225.11 | 0.2741 | 1156.2 | 999999 | |
| 5.90 | -2.00 | 3.04 | -2.00 | -7.84 | 243.74 | 11.22 | 224.48 | 0.2764 | 1209.4 | 999999 | |
| 0.00 | 1.18 | 0.00 | 0.61 | -9.68 | 243.79 | 11.28 | 220.25 | 0.2996 | 647.0 | 496.5 | |
| 0.00 | 1.27 | 0.00 | 0.66 | -10.52 | 243.76 | 11.24 | 218.38 | 0.3101 | -877.0 | -641.1 | |
| 2.09 | -2.00 | 1.08 | -2.00 | -8.05 | 243.62 | 11.10 | 223.63 | 0.2776 | 1004.0 | 999999 | |
| 0.00 | 1.09 | 0.00 | 0.56 | -4.62 | 243.36 | 10.84 | 233.06 | 0.2357 | -730.0 | -581.9 | |
| 2.27 | -2.00 | 1.16 | -2.00 | -6.43 | 243.05 | 10.53 | 226.50 | 0.2515 | 1245.0 | 999999 | |
| 0.00 | 1.45 | 0.00 | 0.74 | -4.39 | 242.95 | 10.44 | 232.77 | 0.2279 | -804.0 | -609.6 | |
| 0.00 | 1.18 | 0.00 | 0.61 | -9.54 | 243.06 | 10.55 | 218.67 | 0.2902 | 466.0 | 403.5 | |
| 1.36 | -2.00 | 0.70 | -2.00 | -6.24 | 242.92 | 10.40 | 226.70 | 0.2478 | 1260.0 | 999999 | |
| 142.47 | -2.00 | 73.05 | -2.00 | -7.23 | 242.88 | 10.36 | 223.78 | 0.2590 | 1545.4 | 999999 | |
| 8.08 | -2.00 | 4.16 | -2.00 | -8.66 | 242.79 | 10.27 | 219.93 | 0.2759 | 855.6 | 999999 | |
| 0.00 | 1.27 | 0.00 | 0.65 | -4.42 | 242.36 | 9.85 | 231.06 | 0.2202 | -664.0 | -421.6 | |
| 0.00 | 10.26 | 0.00 | 5.30 | -9.75 | 242.44 | 9.93 | 216.54 | 0.2866 | 711.0 | 411.8 | |
| 1.82 | -2.00 | 0.93 | -2.00 | -6.98 | 242.19 | 9.67 | 222.51 | 0.2479 | 1344.2 | 999999 | |
| 1.45 | -2.00 | 0.74 | -2.00 | -6.64 | 242.15 | 9.63 | 223.35 | 0.2432 | 1160.4 | 999999 | |
| 7.63 | 32.33 | 3.93 | 16.64 | -9.00 | 242.11 | 9.59 | 217.24 | 0.2732 | 1026.9 | 601.4 | |
| 14.71 | -2.00 | 7.52 | -2.00 | -7.35 | 241.85 | 9.34 | 220.51 | 0.2488 | 1370.4 | 999999 | |
| 1.91 | -19.00 | 0.98 | -19.00 | -9.09 | 241.83 | 9.31 | 216.23 | 0.2716 | 990.0 | 999999 | |
| 0.00 | 1.45 | 0.00 | 0.75 | -9.62 | 241.84 | 9.33 | 215.13 | 0.2789 | 810.0 | 654.4 | |
| 0.00 | 2.36 | 0.00 | 1.22 | -9.77 | 241.56 | 9.05 | 214.00 | 0.2784 | 750.0 | 539.9 | |
| 2.81 | -2.00 | 1.44 | -2.00 | -7.34 | 241.42 | 8.90 | 219.18 | 0.2440 | 1245.1 | 999999 | |
| 0.00 | 0.91 | 0.00 | 0.47 | -11.47 | 241.42 | 8.91 | 210.42 | 0.3011 | -690.0 | -566.7 | |
| 0.00 | 1.09 | 0.00 | 0.56 | -9.65 | 241.28 | 8.76 | 213.42 | 0.2739 | 747.0 | 753.4 | |
| 0.00 | 2.09 | 0.00 | 1.07 | -9.33 | 241.18 | 8.66 | 213.76 | 0.2686 | 1003.0 | 744.1 | |
| 1.18 | 2.54 | 0.61 | 1.31 | -10.21 | 241.11 | 8.59 | 211.79 | 0.2803 | 902.4 | 742.9 | |
| 0.64 | 3.27 | 0.33 | 1.68 | -9.55 | 241.00 | 8.48 | 212.76 | 0.2700 | 953.6 | 757.8 | |
| 8.99 | -2.00 | 4.60 | -2.00 | -8.49 | 240.91 | 8.39 | 214.77 | 0.2543 | 1111.3 | 999999 | |
| 10.44 | -2.00 | 5.32 | -2.00 | -7.27 | 240.85 | 8.34 | 217.54 | 0.2372 | 1175.1 | 999999 | |
| 0.00 | 1.18 | 0.00 | 0.61 | -10.24 | 240.89 | 8.37 | 211.08 | 0.2788 | 761.0 | 577.0 | |
| 0.00 | 1.45 | 0.00 | 0.75 | -9.70 | 240.75 | 8.23 | 211.69 | 0.2699 | 748.0 | 656.2 | |
| 4.81 | -2.00 | 2.45 | -2.00 | -7.27 | 240.58 | 8.06 | 216.61 | 0.2343 | 1173.6 | 999999 | |
| 2.36 | -2.00 | 1.20 | -2.00 | -7.02 | 240.54 | 8.03 | 217.14 | 0.2305 | 1182.6 | 999999 | |
| 0.00 | 2.09 | 0.00 | 1.08 | -10.33 | 240.58 | 8.06 | 209.96 | 0.2775 | -321.0 | -226.2 | |
| 2.09 | 8.08 | 1.06 | 4.10 | -5.97 | 240.40 | 7.89 | 219.62 | 0.2150 | -16.9 | 373.4 | |
| 1.18 | -2.00 | 0.60 | -2.00 | -8.17 | 240.34 | 7.83 | 213.64 | 0.2445 | -707.5 | 999999 | |
| 0.00 | 2.91 | 0.00 | 1.49 | -9.17 | 240.36 | 7.85 | 211.54 | 0.2589 | 1048.0 | 814.0 | |
| 5.08 | -2.00 | 2.60 | -2.00 | -7.98 | 240.28 | 7.76 | 213.85 | 0.2412 | -627.9 | 999999 | |
| 0.00 | 3.45 | 0.00 | 1.75 | -6.15 | 240.22 | 7.70 | 218.42 | 0.2154 | 426.0 | 347.3 | |
| 0.00 | 2.36 | 0.00 | 1.19 | -4.73 | 240.02 | 7.50 | 222.18 | 0.1946 | 890.0 | 769.3 | |
| 0.54 | 1.82 | 0.28 | 0.92 | -5.38 | 239.81 | 7.29 | 219.24 | 0.2007 | 1083.3 | 844.7 | |
| 0.00 | 3.18 | 0.00 | 1.61 | -6.80 | 239.70 | 7.19 | 214.73 | 0.2190 | 203.0 | 129.3 | |
| 0.00 | 1.45 | 0.00 | 0.73 | -4.64 | 239.58 | 7.07 | 220.82 | 0.1885 | 890.0 | 687.6 | |
| 0.00 | 1.18 | 0.00 | 0.60 | -8.04 | 239.60 | 7.08 | 211.34 | 0.2358 | -880.0 | -706.1 | |
| 0.00 | 1.36 | 0.00 | 0.69 | -4.51 | 239.34 | 6.82 | 220.25 | 0.1841 | 911.0 | 660.5 | |
| 2.09 | 971.95 | 1.06 | 490.72 | -5.86 | 239.16 | 6.65 | 215.21 | 0.2007 | -525.6 | -425.8 | |
| 0.00 | 1.54 | 0.00 | 0.78 | -7.81 | 238.88 | 6.37 | 209.17 | 0.2263 | 874.0 | 650.0 | |
| 0.00 | 3.00 | 0.00 | 1.52 | -6.54 | 238.83 | 6.32 | 212.00 | 0.2072 | 920.0 | 637.4 | |
| 5.54 | -48.00 | 2.80 | -48.00 | -5.58 | 238.73 | 6.22 | 214.22 | 0.1925 | -1011.5 | 999999 | |
| 2.36 | -48.00 | 1.19 | -48.00 | -5.80 | 238.64 | 6.13 | 213.21 | 0.1947 | -887.7 | 999999 | |
| 7.45 | -48.00 | 3.76 | -48.00 | -5.61 | 238.42 | 5.91 | 212.80 | 0.1900 | -1216.5 | 999999 | |
| 2.36 | -48.00 | 1.19 | -48.00 | -5.83 | 238.24 | 5.73 | 211.38 | 0.1914 | -857.2 | 999999 | |
| 16.89 | -48.00 | 8.51 | -48.00 | -5.58 | 238.02 | 5.51 | 211.09 | 0.1858 | -1366.9 | 999999 | |
| 3.81 | -48.00 | 1.92 | -48.00 | -5.27 | 237.74 | 5.23 | 210.66 | 0.1788 | 861.9 | 999999 | |
| 0.00 | 25.52 | 0.00 | 12.96 | -8.02 | 237.65 | 5.13 | 203.84 | 0.2201 | -229.0 | -413.1 | |
| 4.18 | -48.00 | 2.11 | -48.00 | -7.00 | 237.39 | 4.87 | 204.76 | 0.2023 | -855.6 | 999999 | |
| 8.17 | -48.00 | 4.12 | -48.00 | -5.79 | 237.35 | 4.83 | 207.34 | 0.1833 | -1066.1 | 999999 | |
| 0.73 | -48.00 | 0.37 | -48.00 | -6.93 | 237.14 | 4.63 | 203.77 | 0.1996 | -949.8 | 999999 | |
| 3.54 | -48.00 | 1.79 | -48.00 | -6.78 | 236.96 | 4.44 | 203.23 | 0.1958 | -1089.2 | 999999 | |
| 3.81 | -48.00 | 1.93 | -48.00 | -7.33 | 236.87 | 4.35 | 201.75 | 0.2041 | -777.6 | 999999 | |
| 15.16 | -48.00 | 7.65 | -48.00 | -6.50 | 236.77 | 4.25 | 202.92 | 0.1901 | -1213.1 | 999999 | |
| 3.00 | -48.00 | 1.51 | -48.00 | -5.88 | 236.73 | 4.22 | 204.09 | 0.1801 | -1233.9 | 999999 | |
| 32.69 | -48.00 | 16.47 | -48.00 | -6.16 | 236.67 | 4.16 | 203.17 | 0.1841 | -1389.2 | 999999 | |
| 0.00 | 2.27 | 0.00 | 1.14 | -5.23 | 236.36 | 3.85 | 203.66 | 0.1673 | -814.0 | -660.2 | |
| 0.27 | -48.00 | 0.14 | -48.00 | -6.00 | 236.27 | 3.76 | 201.47 | 0.1790 | -1220.3 | 999999 | |
| 22.06 | -48.00 | 11.12 | -48.00 | -6.37 | 235.88 | 3.36 | 198.70 | 0.1826 | -1392.3 | 999999 | |
| 1.91 | -48.00 | 0.96 | -48.00 | -6.71 | 235.82 | 3.30 | 197.82 | 0.1879 | -1140.7 | 999999 | |
| 1.63 | -48.00 | 0.82 | -48.00 | -6.89 | 235.66 | 3.15 | 196.75 | 0.1901 | -1330.1 | 999999 | |
| 81.54 | -48.00 | 41.22 | -48.00 | -7.45 | 235.64 | 3.12 | 195.81 | 0.1992 | -1395.6 | 999999 | |
| 0.00 | 1.36 | 0.00 | 0.68 | -3.90 | 235.62 | 3.11 | 202.64 | 0.1411 | -863.0 | -695.6 | |
| 0.00 | 0.82 | 0.00 | 0.41 | -4.12 | 235.59 | 3.08 | 201.87 | 0.1444 | -829.0 | -663.4 | |
| 1.54 | -48.00 | 0.78 | -48.00 | -6.06 | 235.54 | 3.02 | 197.45 | 0.1757 | -1246.9 | 999999 | |
| 0.00 | 1.73 | 0.00 | 0.87 | -6.15 | 234.77 | 2.26 | 193.08 | 0.1737 | -1019.0 | -796.3 | |
| 0.00 | 0.82 | 0.00 | 0.42 | -10.95 | 234.45 | 1.94 | 187.56 | 0.2537 | -888.0 | -733.1 | |
| 0.00 | 1.18 | 0.00 | 0.60 | -9.63 | 234.11 | 1.59 | 186.85 | 0.2307 | 817.0 | 543.2 | |
| 0.00 | 10.53 | 0.00 | 5.31 | -7.01 | 233.88 | 1.37 | 187.37 | 0.1857 | -1123.0 | -944.8 | |
| 0.00 | 1.09 | 0.00 | 0.55 | -7.20 | 233.58 | 1.06 | 185.63 | 0.1883 | -898.0 | -664.9 | |
| 0.00 | 2.00 | 0.00 | 1.01 | -6.88 | 233.21 | 0.69 | 183.80 | 0.1824 | -734.0 | -571.9 | |
| 0.00 | 1.09 | 0.00 | 0.55 | -6.54 | 233.09 | 0.57 | 183.23 | 0.1764 | -937.0 | -664.2 | |
| 0.00 | 1.09 | 0.00 | 0.55 | -7.38 | 233.09 | 0.57 | 182.98 | 0.1908 | -895.0 | -681.6 | |
| 0.00 | 1.27 | 0.00 | 0.64 | -4.72 | 232.93 | 0.42 | 182.90 | 0.1448 | -983.0 | -727.0 | |
| 0.00 | 1.18 | 0.00 | 0.60 | -9.25 | 232.28 | -0.23 | 178.97 | 0.2226 | -656.0 | -473.7 | |
| 0.00 | 1.54 | 0.00 | 0.78 | -7.60 | 232.23 | -0.29 | 178.52 | 0.1943 | -856.0 | -681.9 | |
| 0.00 | 1.54 | 0.00 | 0.78 | -7.94 | 232.16 | -0.35 | 178.25 | 0.2002 | -865.0 | -629.7 | |
| 0.00 | 1.00 | 0.00 | 0.51 | -8.06 | 232.04 | -0.47 | 177.67 | 0.2024 | -817.0 | -719.5 | |
| 0.00 | 1.09 | 0.00 | 0.55 | -8.72 | 231.85 | -0.66 | 176.93 | 0.2138 | -959.0 | -808.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
