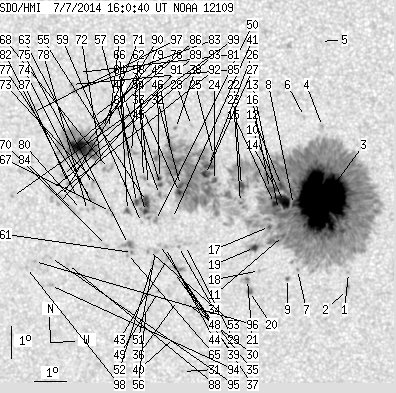

SDO HMI 2014-07-07 16:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 303.90 | 1855.46 | 157.19 | 961.85 | -7.91 | 220.61 | -11.91 | 134.61 | 0.2870 | 469.0 | 180.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-07 16:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.91 | 0.00 | 0.47 | -10.23 | 222.89 | -9.63 | 145.26 | 0.2901 | 744.0 | 601.3 | |
| 0.00 | 2.81 | 0.00 | 1.46 | -10.76 | 222.84 | -9.68 | 146.17 | 0.2979 | -799.0 | -799.7 | |
| 199.31 | 1531.83 | 102.48 | 790.86 | -7.99 | 222.14 | -10.38 | 138.14 | 0.2685 | 1620.5 | 345.2 | |
| 0.00 | 1.63 | 0.00 | 0.83 | -5.69 | 222.19 | -10.32 | 131.85 | 0.2404 | -744.0 | -413.3 | |
| 0.00 | 0.73 | 0.00 | 0.37 | -3.08 | 222.17 | -10.34 | 122.56 | 0.2137 | -844.0 | -656.0 | |
| 0.00 | 1.73 | 0.00 | 0.88 | -5.39 | 221.64 | -10.88 | 129.41 | 0.2442 | -455.0 | -436.5 | |
| 0.00 | 1.27 | 0.00 | 0.66 | -10.15 | 221.28 | -11.23 | 140.88 | 0.3052 | 621.0 | 481.9 | |
| 0.27 | -3.00 | 0.14 | -3.00 | -8.12 | 221.23 | -11.29 | 136.07 | 0.2806 | 994.0 | 999999 | |
| 0.54 | 1.73 | 0.28 | 0.90 | -10.44 | 220.96 | -11.56 | 140.68 | 0.3123 | 815.0 | 677.3 | |
| 14.53 | -3.00 | 7.50 | -3.00 | -8.03 | 220.91 | -11.60 | 135.07 | 0.2831 | 1094.8 | 999999 | |
| 1.09 | -3.00 | 0.57 | -3.00 | -9.09 | 220.88 | -11.63 | 137.54 | 0.2963 | 354.5 | 999999 | |
| 3.00 | -3.00 | 1.54 | -3.00 | -7.53 | 220.87 | -11.65 | 133.67 | 0.2779 | 978.5 | 999999 | |
| 1.54 | -3.00 | 0.80 | -3.00 | -8.28 | 220.75 | -11.77 | 135.29 | 0.2881 | 759.0 | 999999 | |
| 2.27 | -3.00 | 1.17 | -3.00 | -7.63 | 220.68 | -11.84 | 133.45 | 0.2814 | 974.2 | 999999 | |
| 3.09 | -3.00 | 1.60 | -3.00 | -8.10 | 220.63 | -11.88 | 134.54 | 0.2873 | 899.6 | 999999 | |
| 1.91 | -3.00 | 0.98 | -3.00 | -7.63 | 220.49 | -12.03 | 133.01 | 0.2837 | 905.3 | 999999 | |
| 1.27 | -3.00 | 0.66 | -3.00 | -8.81 | 220.45 | -12.07 | 135.86 | 0.2979 | 588.9 | 999999 | |
| 0.00 | 1.09 | 0.00 | 0.57 | -10.20 | 220.08 | -12.43 | 138.11 | 0.3188 | -835.0 | -618.8 | |
| 3.36 | 13.17 | 1.75 | 6.86 | -9.48 | 219.95 | -12.56 | 136.23 | 0.3116 | 741.2 | 222.5 | |
| 1.63 | 3.27 | 0.86 | 1.71 | -10.86 | 219.73 | -12.78 | 138.71 | 0.3307 | -979.3 | -789.7 | |
| 0.54 | 5.45 | 0.29 | 2.86 | -10.48 | 219.69 | -12.83 | 137.83 | 0.3266 | -1107.7 | -816.1 | |
| 3.09 | -3.00 | 1.60 | -3.00 | -7.55 | 219.61 | -12.91 | 130.78 | 0.2937 | 1070.3 | 999999 | |
| 0.36 | -3.00 | 0.19 | -3.00 | -8.08 | 219.56 | -12.96 | 132.03 | 0.3001 | 1044.0 | 999999 | |
| 2.00 | -3.00 | 1.04 | -3.00 | -7.41 | 218.76 | -13.76 | 128.62 | 0.3031 | 1069.8 | 999999 | |
| 0.00 | 2.00 | 0.00 | 1.04 | -6.63 | 218.75 | -13.76 | 126.53 | 0.2954 | 686.0 | 546.4 | |
| 4.45 | -3.00 | 2.31 | -3.00 | -6.94 | 218.58 | -13.93 | 127.05 | 0.3007 | 1056.1 | 999999 | |
| 5.08 | -3.00 | 2.64 | -3.00 | -7.22 | 218.48 | -14.03 | 127.58 | 0.3049 | 996.1 | 999999 | |
| 0.00 | 0.91 | 0.00 | 0.47 | -5.71 | 218.08 | -14.43 | 122.68 | 0.2959 | -805.0 | -549.0 | |
| 0.00 | 0.82 | 0.00 | 0.43 | -9.44 | 217.76 | -14.76 | 131.58 | 0.3374 | -512.0 | -527.8 | |
| 0.00 | 1.00 | 0.00 | 0.53 | -11.23 | 217.67 | -14.85 | 135.22 | 0.3583 | -749.0 | -653.8 | |
| 0.00 | 0.82 | 0.00 | 0.44 | -13.42 | 217.44 | -15.07 | 138.90 | 0.3864 | -783.0 | -562.3 | |
| 2.27 | -3.00 | 1.19 | -3.00 | -7.58 | 217.67 | -14.84 | 126.95 | 0.3191 | -1028.1 | 999999 | |
| 2.45 | -3.00 | 1.28 | -3.00 | -7.79 | 217.64 | -14.88 | 127.43 | 0.3218 | -983.8 | 999999 | |
| 0.00 | 1.27 | 0.00 | 0.67 | -9.48 | 217.53 | -14.98 | 131.23 | 0.3405 | -836.0 | -707.9 | |
| 0.00 | 1.00 | 0.00 | 0.53 | -10.48 | 217.48 | -15.03 | 133.32 | 0.3520 | -688.0 | -528.6 | |
| 0.00 | 1.18 | 0.00 | 0.63 | -11.18 | 217.41 | -15.10 | 134.62 | 0.3606 | -655.0 | -482.5 | |
| 0.82 | 7.35 | 0.43 | 3.89 | -10.17 | 217.40 | -15.11 | 132.50 | 0.3496 | -1043.3 | -771.0 | |
| 0.00 | 1.45 | 0.00 | 0.76 | -5.81 | 217.57 | -14.94 | 122.06 | 0.3040 | -1070.0 | -878.8 | |
| 0.00 | 2.18 | 0.00 | 1.15 | -10.30 | 217.36 | -15.15 | 132.70 | 0.3514 | -426.0 | -497.8 | |
| 0.00 | 1.18 | 0.00 | 0.63 | -12.35 | 217.25 | -15.27 | 136.59 | 0.3758 | -768.0 | -596.4 | |
| 0.00 | 1.27 | 0.00 | 0.67 | -8.61 | 217.38 | -15.14 | 128.93 | 0.3333 | -736.0 | -545.9 | |
| 2.72 | -3.00 | 1.42 | -3.00 | -6.40 | 217.40 | -15.12 | 123.38 | 0.3117 | -771.3 | 999999 | |
| 0.00 | 2.63 | 0.00 | 1.39 | -9.86 | 217.16 | -15.35 | 131.38 | 0.3492 | -959.0 | -804.1 | |
| 0.00 | 1.45 | 0.00 | 0.77 | -9.52 | 217.11 | -15.40 | 130.54 | 0.3461 | -954.0 | -901.9 | |
| 1.18 | 6.54 | 0.62 | 3.43 | -7.55 | 217.04 | -15.48 | 125.75 | 0.3274 | -1007.9 | -929.3 | |
| 1.54 | -45.00 | 0.81 | -45.00 | -7.37 | 217.01 | -15.50 | 125.24 | 0.3259 | -1187.0 | 999999 | |
| 0.54 | 3.63 | 0.29 | 1.91 | -7.87 | 216.99 | -15.52 | 126.45 | 0.3309 | -967.0 | -686.9 | |
| 0.00 | 1.82 | 0.00 | 0.96 | -9.43 | 216.93 | -15.59 | 129.99 | 0.3475 | -875.0 | -660.0 | |
| 0.00 | 1.36 | 0.00 | 0.72 | -10.90 | 216.82 | -15.70 | 132.96 | 0.3646 | -802.0 | -694.9 | |
| 0.00 | 3.81 | 0.00 | 2.01 | -8.68 | 216.83 | -15.68 | 128.11 | 0.3411 | -818.0 | -707.2 | |
| 0.00 | 2.91 | 0.00 | 1.54 | -9.65 | 216.79 | -15.73 | 130.23 | 0.3516 | -849.0 | -732.7 | |
| 0.00 | 1.82 | 0.00 | 0.96 | -10.02 | 216.67 | -15.84 | 130.85 | 0.3569 | -753.0 | -629.0 | |
| 0.00 | 2.00 | 0.00 | 1.06 | -9.62 | 216.56 | -15.95 | 129.78 | 0.3541 | -885.0 | -792.1 | |
| 0.00 | 1.36 | 0.00 | 0.72 | -7.56 | 216.66 | -15.86 | 125.11 | 0.3326 | -893.0 | -736.1 | |
| 6.27 | 35.05 | 3.30 | 18.46 | -8.09 | 216.57 | -15.94 | 126.26 | 0.3388 | -1238.6 | -700.8 | |
| 0.00 | 1.00 | 0.00 | 0.53 | -11.38 | 216.40 | -16.11 | 133.18 | 0.3747 | -469.0 | -532.6 | |
| 2.27 | -55.00 | 1.20 | -55.00 | -8.40 | 216.52 | -15.99 | 126.93 | 0.3424 | -1008.7 | 999999 | |
| 0.00 | 3.00 | 0.00 | 1.57 | -7.35 | 216.50 | -16.01 | 124.32 | 0.3326 | -966.0 | -860.2 | |
| 0.00 | 1.09 | 0.00 | 0.58 | -8.75 | 216.38 | -16.13 | 127.49 | 0.3476 | -607.0 | -479.7 | |
| 2.09 | -55.00 | 1.10 | -55.00 | -8.13 | 216.25 | -16.27 | 125.80 | 0.3434 | -1020.8 | 999999 | |
| 0.00 | 1.73 | 0.00 | 0.92 | -9.69 | 216.04 | -16.47 | 129.04 | 0.3613 | -918.0 | -733.0 | |
| 0.00 | 5.45 | 0.00 | 2.86 | -6.58 | 216.15 | -16.37 | 121.78 | 0.3307 | -671.0 | -896.0 | |
| 0.00 | 8.08 | 0.00 | 4.29 | -9.44 | 215.93 | -16.59 | 128.30 | 0.3603 | -1118.0 | -927.4 | |
| 1.27 | 4.54 | 0.67 | 2.40 | -8.38 | 215.95 | -16.57 | 125.91 | 0.3498 | -994.1 | -775.4 | |
| 0.00 | 2.36 | 0.00 | 1.26 | -9.72 | 215.88 | -16.63 | 128.84 | 0.3638 | -575.0 | -618.5 | |
| 0.00 | 1.36 | 0.00 | 0.71 | -6.33 | 215.97 | -16.55 | 120.86 | 0.3312 | -911.0 | -729.3 | |
| 0.00 | 5.45 | 0.00 | 2.89 | -8.42 | 215.40 | -17.12 | 125.12 | 0.3575 | -910.0 | -718.6 | |
| 0.00 | 5.72 | 0.00 | 3.02 | -7.09 | 215.39 | -17.12 | 121.91 | 0.3457 | -553.0 | -786.8 | |
| 0.00 | 1.09 | 0.00 | 0.57 | -5.85 | 215.44 | -17.08 | 118.81 | 0.3348 | -1059.0 | -911.0 | |
| 0.00 | 0.91 | 0.00 | 0.48 | -9.49 | 215.22 | -17.30 | 127.23 | 0.3699 | -968.0 | -804.8 | |
| 0.00 | 3.09 | 0.00 | 1.62 | -5.85 | 215.24 | -17.27 | 118.54 | 0.3376 | -977.0 | -782.9 | |
| 0.00 | 1.00 | 0.00 | 0.53 | -6.90 | 215.17 | -17.34 | 121.13 | 0.3472 | -836.0 | -659.1 | |
| 0.00 | 1.18 | 0.00 | 0.63 | -7.62 | 215.05 | -17.47 | 122.69 | 0.3550 | -890.0 | -710.2 | |
| 0.00 | 2.54 | 0.00 | 1.35 | -8.28 | 214.86 | -17.66 | 123.95 | 0.3634 | -804.0 | -745.4 | |
| 0.00 | 3.54 | 0.00 | 1.88 | -7.59 | 214.86 | -17.66 | 122.34 | 0.3574 | -761.0 | -776.5 | |
| 0.00 | 1.18 | 0.00 | 0.62 | -5.52 | 214.93 | -17.58 | 117.24 | 0.3396 | -797.0 | -507.8 | |
| 0.00 | 3.36 | 0.00 | 1.78 | -8.03 | 214.80 | -17.71 | 123.30 | 0.3620 | -987.0 | -871.2 | |
| 0.00 | 1.45 | 0.00 | 0.77 | -8.40 | 214.66 | -17.86 | 123.95 | 0.3673 | -689.0 | -578.6 | |
| 28.88 | 107.24 | 15.28 | 56.76 | -6.45 | 214.58 | -17.93 | 119.16 | 0.3519 | -1193.7 | -452.6 | |
| 0.00 | 1.36 | 0.00 | 0.73 | -8.38 | 214.46 | -18.05 | 123.60 | 0.3697 | -751.0 | -590.8 | |
| 0.00 | 0.91 | 0.00 | 0.48 | -4.14 | 214.52 | -17.99 | 113.01 | 0.3361 | -761.0 | -649.5 | |
| 0.00 | 1.36 | 0.00 | 0.73 | -8.00 | 214.35 | -18.16 | 122.59 | 0.3679 | -813.0 | -681.6 | |
| 0.00 | 2.54 | 0.00 | 1.34 | -4.69 | 214.38 | -18.13 | 114.35 | 0.3420 | -1009.0 | -822.9 | |
| 0.00 | 6.72 | 0.00 | 3.59 | -8.41 | 214.20 | -18.31 | 123.31 | 0.3735 | -713.0 | -553.3 | |
| 0.00 | 1.54 | 0.00 | 0.81 | -4.51 | 214.29 | -18.23 | 113.75 | 0.3421 | -882.0 | -755.5 | |
| 2.27 | -79.00 | 1.20 | -79.00 | -6.55 | 214.12 | -18.39 | 118.80 | 0.3592 | -816.4 | 999999 | |
| 0.00 | 1.63 | 0.00 | 0.87 | -7.58 | 214.08 | -18.43 | 121.20 | 0.3681 | -746.0 | -673.3 | |
| 0.00 | 2.00 | 0.00 | 1.08 | -10.10 | 213.91 | -18.60 | 126.57 | 0.3927 | -743.0 | -579.5 | |
| 0.00 | 2.18 | 0.00 | 1.16 | -7.33 | 213.90 | -18.62 | 120.38 | 0.3686 | -825.0 | -652.6 | |
| 0.00 | 1.18 | 0.00 | 0.63 | -7.98 | 213.83 | -18.68 | 121.82 | 0.3749 | -781.0 | -601.8 | |
| 0.00 | 1.63 | 0.00 | 0.87 | -8.20 | 213.72 | -18.79 | 122.17 | 0.3782 | -794.0 | -649.2 | |
| 0.00 | 2.91 | 0.00 | 1.56 | -8.05 | 213.50 | -19.01 | 121.53 | 0.3800 | -792.0 | -592.8 | |
| 0.00 | 2.36 | 0.00 | 1.26 | -7.77 | 213.52 | -19.00 | 120.91 | 0.3775 | -452.0 | -558.7 | |
| 0.00 | 2.63 | 0.00 | 1.43 | -10.78 | 213.31 | -19.20 | 127.07 | 0.4067 | -752.0 | -617.2 | |
| 0.00 | 0.91 | 0.00 | 0.49 | -9.90 | 213.37 | -19.15 | 125.35 | 0.3978 | -915.0 | -718.5 | |
| 0.00 | 1.09 | 0.00 | 0.59 | -10.03 | 212.83 | -19.68 | 124.90 | 0.4060 | -885.0 | -732.2 | |
| 0.00 | 1.36 | 0.00 | 0.73 | -5.40 | 213.00 | -19.51 | 114.58 | 0.3673 | -637.0 | -565.4 | |
| 0.00 | 1.18 | 0.00 | 0.64 | -10.23 | 212.56 | -19.96 | 124.93 | 0.4114 | -735.0 | -598.0 | |
| 0.00 | 1.18 | 0.00 | 0.64 | -8.02 | 212.23 | -20.28 | 119.82 | 0.3973 | -729.0 | -639.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
