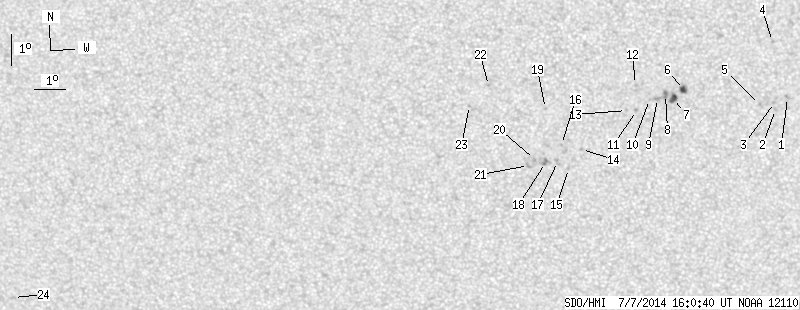

SDO HMI 2014-07-07 16:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 5.99 | 46.41 | 3.15 | 24.55 | -16.38 | 234.43 | 1.92 | 186.31 | 0.3518 | 130.7 | 41.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-07 16:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.73 | 0.00 | 0.91 | -15.51 | 240.23 | 7.72 | 201.64 | 0.3523 | 845.0 | 738.3 | |
| 0.00 | 1.73 | 0.00 | 0.91 | -15.89 | 239.86 | 7.35 | 200.30 | 0.3559 | 676.0 | 525.5 | |
| 0.00 | 1.00 | 0.00 | 0.53 | -15.66 | 239.82 | 7.31 | 200.43 | 0.3523 | 948.0 | 753.3 | |
| 0.00 | 1.09 | 0.00 | 0.57 | -13.70 | 239.69 | 7.18 | 202.29 | 0.3215 | 792.0 | 624.3 | |
| 0.00 | 1.09 | 0.00 | 0.58 | -15.72 | 239.35 | 6.83 | 199.15 | 0.3505 | 853.0 | 760.0 | |
| 2.72 | 4.81 | 1.43 | 2.53 | -15.22 | 236.92 | 4.40 | 192.97 | 0.3315 | 1020.5 | 747.4 | |
| 3.27 | 5.27 | 1.72 | 2.77 | -15.51 | 236.61 | 4.09 | 191.89 | 0.3351 | 992.6 | 747.6 | |
| 0.00 | 3.54 | 0.00 | 1.86 | -15.38 | 236.35 | 3.84 | 191.25 | 0.3321 | 1015.0 | 903.7 | |
| 0.00 | 2.63 | 0.00 | 1.38 | -15.51 | 236.10 | 3.58 | 190.45 | 0.3334 | 970.0 | 716.1 | |
| 0.00 | 0.73 | 0.00 | 0.38 | -15.54 | 235.85 | 3.33 | 189.72 | 0.3332 | 754.0 | 599.2 | |
| 0.00 | 1.45 | 0.00 | 0.76 | -15.89 | 235.44 | 2.92 | 188.39 | 0.3379 | 727.0 | 615.5 | |
| 0.00 | 1.00 | 0.00 | 0.52 | -15.05 | 235.40 | 2.88 | 188.65 | 0.3241 | 647.0 | 538.5 | |
| 0.00 | 1.00 | 0.00 | 0.53 | -15.89 | 235.12 | 2.61 | 187.49 | 0.3371 | 661.0 | 410.1 | |
| 0.00 | 1.00 | 0.00 | 0.53 | -17.15 | 233.70 | 1.19 | 183.20 | 0.3556 | -855.0 | -697.0 | |
| 0.00 | 1.36 | 0.00 | 0.72 | -17.77 | 233.29 | 0.77 | 182.03 | 0.3654 | -574.0 | -399.1 | |
| 0.00 | 1.09 | 0.00 | 0.58 | -16.99 | 233.06 | 0.55 | 181.49 | 0.3525 | -780.0 | -612.1 | |
| 0.00 | 3.18 | 0.00 | 1.69 | -17.54 | 232.94 | 0.42 | 181.12 | 0.3615 | -899.0 | -708.7 | |
| 0.00 | 3.90 | 0.00 | 2.07 | -17.57 | 232.55 | 0.04 | 180.10 | 0.3620 | -986.0 | -829.5 | |
| 0.00 | 1.00 | 0.00 | 0.52 | -15.82 | 232.55 | 0.04 | 180.12 | 0.3331 | -883.0 | -698.8 | |
| 0.00 | 1.27 | 0.00 | 0.67 | -17.47 | 232.20 | -0.31 | 179.17 | 0.3604 | -1005.0 | -898.8 | |
| 0.00 | 2.72 | 0.00 | 1.45 | -17.67 | 232.01 | -0.51 | 178.67 | 0.3637 | -702.0 | -640.1 | |
| 0.00 | 0.91 | 0.00 | 0.47 | -15.08 | 230.76 | -1.76 | 174.70 | 0.3222 | -890.0 | -679.2 | |
| 0.00 | 1.09 | 0.00 | 0.57 | -15.72 | 230.15 | -2.37 | 173.13 | 0.3339 | -672.0 | -545.9 | |
| 0.00 | 1.82 | 0.00 | 1.05 | -22.22 | 214.75 | -17.77 | 146.82 | 0.5182 | -521.0 | -439.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
