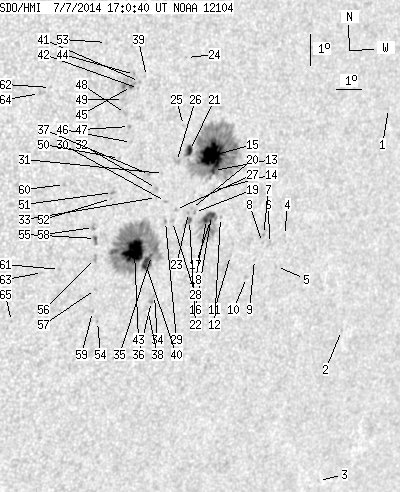

SDO HMI 2014-07-07 17:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 90.87 | 535.99 | 58.15 | 342.69 | -11.74 | 268.18 | 36.22 | 246.43 | 0.6337 | 198.3 | 21.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-07 17:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.00 | 0.00 | 0.71 | -9.24 | 276.42 | 44.46 | 253.56 | 0.7231 | 627.0 | 501.3 | |
| 0.00 | 0.82 | 0.00 | 0.60 | -16.25 | 275.91 | 43.95 | 244.19 | 0.7424 | 510.0 | 480.9 | |
| 0.00 | 0.27 | 0.00 | 0.21 | -21.20 | 276.50 | 44.54 | 238.41 | 0.7700 | 458.0 | 424.0 | |
| 0.00 | 0.73 | 0.00 | 0.50 | -13.07 | 272.71 | 40.75 | 246.87 | 0.6937 | 658.0 | 550.1 | |
| 0.00 | 1.00 | 0.00 | 0.69 | -14.05 | 272.58 | 40.62 | 245.48 | 0.6964 | 569.0 | 421.1 | |
| 0.00 | 2.81 | 0.00 | 1.92 | -13.30 | 272.13 | 40.17 | 246.28 | 0.6880 | 705.0 | 614.7 | |
| 0.00 | 1.09 | 0.00 | 0.74 | -13.00 | 271.83 | 39.87 | 246.54 | 0.6832 | 766.0 | 633.0 | |
| 0.00 | 0.91 | 0.00 | 0.62 | -13.26 | 271.84 | 39.88 | 246.20 | 0.6844 | 699.0 | 604.1 | |
| 0.00 | 0.82 | 0.00 | 0.55 | -13.79 | 271.62 | 39.66 | 245.36 | 0.6842 | 346.0 | 355.1 | |
| 0.00 | 1.54 | 0.00 | 1.05 | -14.36 | 271.41 | 39.45 | 244.48 | 0.6844 | 622.0 | 523.9 | |
| 0.00 | 0.54 | 0.00 | 0.36 | -13.62 | 270.61 | 38.65 | 245.07 | 0.6716 | 321.0 | 442.8 | |
| 0.00 | 1.09 | 0.00 | 0.72 | -12.39 | 269.99 | 38.03 | 246.48 | 0.6585 | 393.0 | 386.1 | |
| 1.54 | 223.81 | 1.00 | 144.36 | -10.89 | 269.47 | 37.51 | 248.39 | 0.6454 | 686.5 | 289.4 | |
| 0.00 | 0.82 | 0.00 | 0.53 | -11.52 | 269.57 | 37.61 | 247.51 | 0.6494 | 617.0 | 535.7 | |
| 36.68 | -13.00 | 23.64 | -13.00 | -10.41 | 269.36 | 37.40 | 249.04 | 0.6420 | 1168.7 | 999999 | |
| 3.45 | 39.68 | 2.25 | 25.93 | -12.31 | 269.62 | 37.66 | 246.39 | 0.6536 | 837.8 | 155.7 | |
| 1.09 | -16.00 | 0.71 | -16.00 | -12.44 | 269.60 | 37.64 | 246.20 | 0.6540 | 737.8 | 999999 | |
| 3.54 | -16.00 | 2.31 | -16.00 | -12.43 | 269.44 | 37.48 | 246.13 | 0.6520 | 892.9 | 999999 | |
| 0.00 | 1.63 | 0.00 | 1.06 | -12.19 | 268.93 | 36.97 | 246.20 | 0.6447 | 651.0 | 556.6 | |
| 0.00 | 0.73 | 0.00 | 0.47 | -12.06 | 268.79 | 36.83 | 246.32 | 0.6423 | 738.0 | 668.9 | |
| 4.63 | -13.00 | 2.95 | -13.00 | -10.22 | 268.44 | 36.48 | 248.86 | 0.6296 | 1081.1 | 999999 | |
| 1.27 | 4.45 | 0.82 | 2.87 | -12.44 | 268.77 | 36.81 | 245.76 | 0.6440 | 738.1 | 562.9 | |
| 0.00 | 1.00 | 0.00 | 0.64 | -12.18 | 268.69 | 36.73 | 246.09 | 0.6417 | 839.0 | 728.5 | |
| 0.00 | 0.64 | 0.00 | 0.40 | -7.31 | 268.00 | 36.04 | 253.15 | 0.6120 | 604.0 | 514.6 | |
| 0.00 | 0.73 | 0.00 | 0.46 | -9.43 | 268.11 | 36.15 | 249.91 | 0.6219 | 614.0 | 525.5 | |
| 0.00 | 3.63 | 0.00 | 2.30 | -10.55 | 267.99 | 36.03 | 248.13 | 0.6253 | 265.0 | 383.8 | |
| 0.00 | 1.27 | 0.00 | 0.81 | -12.07 | 268.17 | 36.21 | 245.97 | 0.6347 | 420.0 | 370.0 | |
| 0.00 | 1.91 | 0.00 | 1.22 | -12.44 | 268.11 | 36.15 | 245.38 | 0.6359 | 428.0 | 276.5 | |
| 0.00 | 0.64 | 0.00 | 0.41 | -12.43 | 267.84 | 35.88 | 245.24 | 0.6325 | -225.0 | -186.9 | |
| 0.00 | 1.18 | 0.00 | 0.75 | -11.80 | 267.74 | 35.78 | 246.12 | 0.6281 | 534.0 | 392.8 | |
| 0.00 | 0.45 | 0.00 | 0.29 | -10.91 | 267.54 | 35.58 | 247.35 | 0.6213 | 418.0 | 435.8 | |
| 0.00 | 1.45 | 0.00 | 0.92 | -11.37 | 267.33 | 35.37 | 246.53 | 0.6209 | 597.0 | 445.9 | |
| 0.00 | 1.09 | 0.00 | 0.69 | -11.66 | 267.37 | 35.41 | 246.13 | 0.6229 | 510.0 | 434.4 | |
| 0.00 | 0.82 | 0.00 | 0.53 | -14.79 | 267.82 | 35.86 | 241.83 | 0.6448 | -609.0 | -501.4 | |
| 0.27 | 186.67 | 0.17 | 118.12 | -13.50 | 267.47 | 35.51 | 243.46 | 0.6336 | -744.0 | -479.9 | |
| 0.00 | 2.00 | 0.00 | 1.29 | -14.98 | 267.74 | 35.78 | 241.51 | 0.6449 | -657.0 | -543.7 | |
| 0.00 | 1.36 | 0.00 | 0.85 | -10.92 | 267.00 | 35.04 | 247.03 | 0.6146 | 817.0 | 656.1 | |
| 0.00 | 0.91 | 0.00 | 0.59 | -15.20 | 267.63 | 35.67 | 241.13 | 0.6449 | -661.0 | -573.0 | |
| 0.00 | 0.64 | 0.00 | 0.39 | -7.84 | 266.54 | 34.58 | 251.62 | 0.5946 | 452.0 | 426.3 | |
| 5.63 | -35.00 | 3.59 | -35.00 | -13.74 | 267.28 | 35.33 | 242.99 | 0.6327 | -824.2 | 999999 | |
| 0.00 | 1.09 | 0.00 | 0.67 | -7.99 | 266.29 | 34.33 | 251.26 | 0.5919 | 533.0 | 498.0 | |
| 0.00 | 0.82 | 0.00 | 0.50 | -8.20 | 266.27 | 34.31 | 250.91 | 0.5926 | 696.0 | 544.9 | |
| 31.32 | -35.00 | 19.82 | -35.00 | -13.34 | 266.79 | 34.84 | 243.27 | 0.6245 | -1188.5 | 999999 | |
| 0.00 | 1.54 | 0.00 | 0.94 | -7.76 | 266.08 | 34.12 | 251.53 | 0.5882 | 731.0 | 583.9 | |
| 0.54 | 12.89 | 0.33 | 7.87 | -8.13 | 266.01 | 34.05 | 250.89 | 0.5888 | 876.0 | 735.4 | |
| 0.00 | 1.18 | 0.00 | 0.73 | -9.88 | 266.19 | 34.23 | 248.18 | 0.5992 | 688.0 | 503.7 | |
| 0.00 | 1.45 | 0.00 | 0.89 | -9.38 | 266.06 | 34.10 | 248.91 | 0.5951 | 807.0 | 653.7 | |
| 0.00 | 2.63 | 0.00 | 1.61 | -8.97 | 265.87 | 33.91 | 249.46 | 0.5906 | 804.0 | 679.6 | |
| 0.00 | 1.91 | 0.00 | 1.16 | -8.53 | 265.75 | 33.79 | 250.11 | 0.5870 | 667.0 | 545.2 | |
| 0.00 | 1.00 | 0.00 | 0.62 | -10.37 | 265.80 | 33.84 | 247.19 | 0.5965 | 593.0 | 480.7 | |
| 0.00 | 1.73 | 0.00 | 1.07 | -11.44 | 265.68 | 33.72 | 245.45 | 0.6003 | 670.0 | 517.3 | |
| 0.00 | 1.00 | 0.00 | 0.62 | -11.62 | 265.67 | 33.71 | 245.16 | 0.6012 | 505.0 | 336.6 | |
| 0.00 | 1.27 | 0.00 | 0.76 | -6.73 | 264.96 | 33.00 | 252.68 | 0.5688 | 637.0 | 533.8 | |
| 0.00 | 1.00 | 0.00 | 0.63 | -15.54 | 265.77 | 33.81 | 239.39 | 0.6251 | -624.0 | -505.4 | |
| 0.91 | 3.72 | 0.56 | 2.31 | -12.87 | 265.24 | 33.29 | 242.97 | 0.6028 | -865.6 | -652.6 | |
| 0.00 | 2.72 | 0.00 | 1.70 | -13.51 | 265.34 | 33.38 | 242.07 | 0.6077 | -789.0 | -712.4 | |
| 0.00 | 1.00 | 0.00 | 0.63 | -14.51 | 265.51 | 33.55 | 240.71 | 0.6156 | -725.0 | -488.4 | |
| 0.00 | 2.54 | 0.00 | 1.57 | -12.52 | 265.12 | 33.16 | 243.42 | 0.5992 | -972.0 | -789.0 | |
| 0.00 | 0.91 | 0.00 | 0.57 | -15.21 | 265.52 | 33.56 | 239.69 | 0.6201 | -703.0 | -616.5 | |
| 0.00 | 1.54 | 0.00 | 0.93 | -11.12 | 263.86 | 31.90 | 244.78 | 0.5753 | -753.0 | -513.1 | |
| 0.00 | 0.73 | 0.00 | 0.45 | -13.82 | 264.05 | 32.09 | 240.70 | 0.5936 | -640.0 | -543.4 | |
| 0.00 | 0.64 | 0.00 | 0.38 | -8.06 | 263.04 | 31.08 | 249.36 | 0.5482 | -658.0 | -499.6 | |
| 0.00 | 0.82 | 0.00 | 0.50 | -13.89 | 263.43 | 31.47 | 240.13 | 0.5865 | -696.0 | -600.9 | |
| 0.00 | 0.82 | 0.00 | 0.48 | -8.23 | 262.65 | 30.70 | 248.82 | 0.5439 | -602.0 | -532.8 | |
| 0.00 | 0.91 | 0.00 | 0.55 | -15.43 | 262.53 | 30.57 | 237.11 | 0.5860 | -630.0 | -461.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
