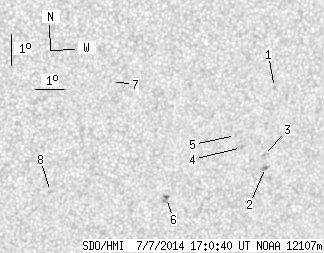

SDO HMI 2014-07-07 17:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.18 | 13.53 | 0.69 | 7.81 | -13.92 | 257.49 | 25.53 | 234.68 | 0.5143 | 539.4 | 404.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-07 17:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.00 | 0.00 | 0.58 | -11.56 | 260.03 | 28.07 | 241.18 | 0.5282 | 709.0 | 526.7 | |
| 0.54 | 2.27 | 0.32 | 1.34 | -14.10 | 260.01 | 28.05 | 237.00 | 0.5460 | 768.3 | 615.4 | |
| 0.00 | 1.36 | 0.00 | 0.80 | -13.71 | 259.89 | 27.93 | 237.51 | 0.5416 | 627.0 | 482.7 | |
| 0.00 | 1.45 | 0.00 | 0.85 | -13.43 | 259.08 | 27.12 | 237.22 | 0.5294 | 676.0 | 554.0 | |
| 0.00 | 0.91 | 0.00 | 0.53 | -13.04 | 258.82 | 26.86 | 237.62 | 0.5233 | 516.0 | 474.0 | |
| 0.64 | 3.72 | 0.37 | 2.14 | -14.96 | 256.64 | 24.68 | 232.27 | 0.5120 | 855.0 | 727.4 | |
| 0.00 | 0.64 | 0.00 | 0.35 | -11.21 | 254.38 | 22.42 | 236.22 | 0.4520 | 698.0 | 521.0 | |
| 0.00 | 2.18 | 0.00 | 1.22 | -14.66 | 252.64 | 20.68 | 227.90 | 0.4624 | -724.0 | -524.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
