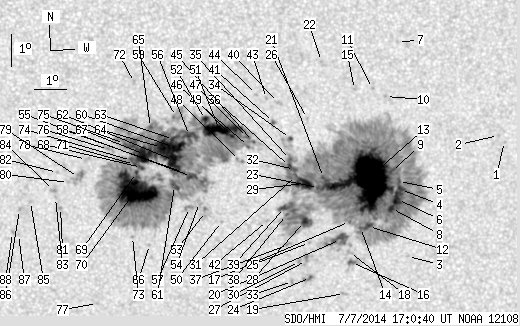

SDO HMI 2014-07-07 17:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 495.53 | 2331.13 | 252.46 | 1188.15 | -7.01 | 239.83 | 7.87 | 215.10 | 0.2326 | 48.1 | 69.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-07 17:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.73 | 0.00 | 0.38 | -6.06 | 247.11 | 15.15 | 237.58 | 0.3092 | 481.0 | 415.4 | |
| 0.00 | 1.18 | 0.00 | 0.61 | -5.88 | 246.91 | 14.95 | 237.77 | 0.3047 | 835.0 | 636.5 | |
| 0.00 | 1.00 | 0.00 | 0.52 | -9.59 | 244.15 | 12.19 | 222.64 | 0.3087 | -507.0 | -358.2 | |
| 5.99 | 1188.59 | 3.09 | 610.06 | -7.50 | 243.86 | 11.90 | 227.04 | 0.2807 | 963.7 | 456.0 | |
| 1.63 | -4.00 | 0.84 | -4.00 | -7.25 | 243.79 | 11.83 | 227.54 | 0.2770 | 851.3 | 999999 | |
| 10.44 | -4.00 | 5.39 | -4.00 | -7.81 | 243.78 | 11.82 | 226.03 | 0.2832 | 1193.2 | 999999 | |
| 0.00 | 0.73 | 0.00 | 0.37 | -2.96 | 243.69 | 11.73 | 241.05 | 0.2330 | 564.0 | 445.4 | |
| 3.99 | -4.00 | 2.06 | -4.00 | -8.08 | 243.60 | 11.64 | 224.88 | 0.2843 | 933.5 | 999999 | |
| 3.36 | -4.00 | 1.73 | -4.00 | -6.94 | 243.57 | 11.61 | 227.84 | 0.2707 | 1045.2 | 999999 | |
| 0.00 | 1.18 | 0.00 | 0.60 | -4.62 | 243.33 | 11.37 | 234.35 | 0.2430 | -753.0 | -488.8 | |
| 0.00 | 1.00 | 0.00 | 0.51 | -4.37 | 242.93 | 10.97 | 234.22 | 0.2349 | -719.0 | -564.5 | |
| 4.72 | -4.00 | 2.44 | -4.00 | -8.64 | 242.89 | 10.93 | 221.74 | 0.2828 | 977.2 | 999999 | |
| 175.78 | -4.00 | 90.27 | -4.00 | -7.17 | 242.79 | 10.83 | 225.20 | 0.2639 | 1525.2 | 999999 | |
| 1.27 | -4.00 | 0.66 | -4.00 | -8.66 | 242.64 | 10.68 | 221.02 | 0.2804 | 763.1 | 999999 | |
| 0.00 | 1.27 | 0.00 | 0.65 | -4.39 | 242.37 | 10.41 | 232.69 | 0.2274 | -564.0 | -328.0 | |
| 1.91 | 6.17 | 0.99 | 3.20 | -9.75 | 242.39 | 10.43 | 217.89 | 0.2918 | 828.8 | 223.0 | |
| 0.45 | -4.00 | 0.23 | -4.00 | -8.47 | 242.29 | 10.33 | 220.53 | 0.2741 | 540.0 | 999999 | |
| 0.00 | 3.18 | 0.00 | 1.64 | -9.44 | 242.32 | 10.36 | 218.38 | 0.2869 | 590.0 | 388.5 | |
| 0.00 | 2.63 | 0.00 | 1.37 | -10.72 | 242.20 | 10.24 | 215.41 | 0.3028 | 609.0 | 568.3 | |
| 9.62 | 31.51 | 4.96 | 16.24 | -9.03 | 242.02 | 10.06 | 218.49 | 0.2785 | 1042.4 | 649.8 | |
| 1.45 | -4.00 | 0.74 | -4.00 | -7.09 | 241.45 | 9.49 | 221.63 | 0.2473 | 1174.8 | 999999 | |
| 0.00 | 1.09 | 0.00 | 0.55 | -3.52 | 241.33 | 9.37 | 233.04 | 0.2044 | 897.0 | 748.1 | |
| 1.54 | -4.00 | 0.79 | -4.00 | -7.40 | 241.30 | 9.34 | 220.36 | 0.2496 | 1058.2 | 999999 | |
| 0.82 | 4.45 | 0.42 | 2.30 | -10.21 | 241.12 | 9.16 | 213.43 | 0.2855 | 974.7 | 774.1 | |
| 0.00 | 1.27 | 0.00 | 0.65 | -9.11 | 241.06 | 9.10 | 215.53 | 0.2698 | 948.0 | 682.6 | |
| 0.00 | 1.45 | 0.00 | 0.74 | -5.26 | 240.92 | 8.96 | 225.46 | 0.2186 | -776.0 | -575.8 | |
| 0.00 | 3.81 | 0.00 | 1.97 | -9.67 | 240.98 | 9.02 | 214.10 | 0.2767 | 823.0 | 741.4 | |
| 4.54 | -4.00 | 2.33 | -4.00 | -8.46 | 240.88 | 8.92 | 216.49 | 0.2591 | 1179.4 | 999999 | |
| 15.07 | -4.00 | 7.70 | -4.00 | -7.27 | 240.83 | 8.87 | 219.25 | 0.2428 | 1261.1 | 999999 | |
| 0.00 | 2.00 | 0.00 | 1.03 | -9.70 | 240.76 | 8.80 | 213.40 | 0.2751 | 784.0 | 632.5 | |
| 0.27 | -4.00 | 0.14 | -4.00 | -7.02 | 240.61 | 8.65 | 219.20 | 0.2371 | 1203.3 | 999999 | |
| 2.27 | -4.00 | 1.16 | -4.00 | -6.84 | 240.54 | 8.58 | 219.50 | 0.2340 | 380.7 | 999999 | |
| 0.00 | 2.18 | 0.00 | 1.12 | -10.33 | 240.55 | 8.59 | 211.57 | 0.2821 | -299.0 | -148.0 | |
| 1.27 | 10.17 | 0.65 | 5.16 | -5.88 | 240.40 | 8.44 | 221.82 | 0.2200 | -425.0 | 441.4 | |
| 1.27 | -4.00 | 0.65 | -4.00 | -6.53 | 240.41 | 8.45 | 219.94 | 0.2285 | -130.3 | 999999 | |
| 2.18 | -4.00 | 1.11 | -4.00 | -6.74 | 240.38 | 8.42 | 219.24 | 0.2310 | 1029.9 | 999999 | |
| 0.00 | 2.81 | 0.00 | 1.45 | -9.17 | 240.40 | 8.44 | 213.42 | 0.2643 | 947.0 | 730.6 | |
| 0.91 | -4.00 | 0.46 | -4.00 | -8.23 | 240.32 | 8.36 | 215.24 | 0.2505 | -802.9 | 999999 | |
| 3.45 | -4.00 | 1.76 | -4.00 | -8.01 | 240.25 | 8.29 | 215.54 | 0.2468 | -698.8 | 999999 | |
| 0.00 | 3.27 | 0.00 | 1.65 | -4.76 | 240.02 | 8.06 | 224.11 | 0.2016 | 1022.0 | 715.8 | |
| 0.73 | 2.18 | 0.37 | 1.10 | -5.38 | 239.87 | 7.91 | 221.52 | 0.2076 | 1070.9 | 746.1 | |
| 0.00 | 1.36 | 0.00 | 0.70 | -8.41 | 239.73 | 7.77 | 212.89 | 0.2474 | -754.0 | -625.7 | |
| 0.00 | 1.36 | 0.00 | 0.69 | -4.64 | 239.65 | 7.69 | 223.20 | 0.1956 | 1022.0 | 696.7 | |
| 0.00 | 1.27 | 0.00 | 0.64 | -4.51 | 239.34 | 7.38 | 222.47 | 0.1904 | 918.0 | 665.1 | |
| 0.64 | 980.67 | 0.32 | 495.55 | -5.96 | 239.26 | 7.30 | 217.48 | 0.2086 | -613.7 | -413.0 | |
| 0.73 | -45.00 | 0.37 | -45.00 | -6.11 | 239.11 | 7.15 | 216.45 | 0.2091 | -558.8 | 999999 | |
| 1.36 | -45.00 | 0.69 | -45.00 | -5.83 | 239.07 | 7.11 | 217.13 | 0.2050 | -616.3 | 999999 | |
| 0.00 | 3.18 | 0.00 | 1.61 | -6.54 | 238.83 | 6.87 | 214.21 | 0.2125 | 661.0 | 752.2 | |
| 1.91 | -45.00 | 0.96 | -45.00 | -5.80 | 238.61 | 6.65 | 215.39 | 0.1998 | -1040.8 | 999999 | |
| 0.00 | 1.09 | 0.00 | 0.56 | -8.43 | 238.30 | 6.34 | 207.80 | 0.2354 | -631.0 | -519.2 | |
| 34.68 | -45.00 | 17.51 | -45.00 | -5.58 | 238.21 | 6.25 | 214.36 | 0.1928 | -1239.0 | 999999 | |
| 4.63 | -45.00 | 2.33 | -45.00 | -5.27 | 237.77 | 5.81 | 213.38 | 0.1842 | 612.1 | 999999 | |
| 0.00 | 3.90 | 0.00 | 1.99 | -8.12 | 237.80 | 5.84 | 206.52 | 0.2268 | -543.0 | -366.2 | |
| 0.00 | 3.45 | 0.00 | 1.75 | -7.83 | 237.61 | 5.65 | 206.33 | 0.2210 | -619.0 | -639.8 | |
| 6.26 | -45.00 | 3.17 | -45.00 | -7.02 | 237.36 | 5.40 | 206.98 | 0.2067 | -818.4 | 999999 | |
| 11.44 | -45.00 | 5.77 | -45.00 | -5.76 | 237.28 | 5.33 | 209.75 | 0.1869 | -948.2 | 999999 | |
| 0.00 | 4.99 | 0.00 | 2.54 | -7.99 | 237.31 | 5.35 | 204.79 | 0.2211 | -884.0 | -651.4 | |
| 1.18 | -45.00 | 0.60 | -45.00 | -6.90 | 237.11 | 5.15 | 206.18 | 0.2029 | -892.8 | 999999 | |
| 0.00 | 18.16 | 0.00 | 9.14 | -5.17 | 236.88 | 4.92 | 209.43 | 0.1747 | -570.0 | -387.9 | |
| 18.16 | -45.00 | 9.16 | -45.00 | -6.12 | 236.83 | 4.87 | 206.67 | 0.1888 | -1329.5 | 999999 | |
| 5.63 | -45.00 | 2.85 | -45.00 | -7.30 | 236.84 | 4.88 | 204.14 | 0.2071 | -813.5 | 999999 | |
| 21.79 | -45.00 | 11.01 | -45.00 | -6.53 | 236.80 | 4.84 | 205.61 | 0.1948 | -1175.9 | 999999 | |
| 3.72 | -45.00 | 1.88 | -45.00 | -5.88 | 236.79 | 4.83 | 207.12 | 0.1847 | -1165.0 | 999999 | |
| 15.34 | -45.00 | 7.74 | -45.00 | -6.12 | 236.43 | 4.47 | 204.76 | 0.1858 | -1430.8 | 999999 | |
| 1.27 | -45.00 | 0.64 | -45.00 | -5.50 | 236.09 | 4.13 | 204.48 | 0.1736 | -1018.1 | 999999 | |
| 0.00 | 1.00 | 0.00 | 0.51 | -9.13 | 236.08 | 4.12 | 197.92 | 0.2318 | -768.0 | -626.2 | |
| 26.33 | -45.00 | 13.27 | -45.00 | -6.33 | 235.91 | 3.95 | 201.73 | 0.1856 | -1393.8 | 999999 | |
| 2.45 | -45.00 | 1.24 | -45.00 | -6.74 | 235.82 | 3.86 | 200.51 | 0.1915 | -1195.9 | 999999 | |
| 1.27 | -45.00 | 0.64 | -45.00 | -6.89 | 235.66 | 3.70 | 199.49 | 0.1931 | -1361.8 | 999999 | |
| 78.45 | -45.00 | 39.68 | -45.00 | -7.45 | 235.64 | 3.68 | 198.43 | 0.2020 | -1421.3 | 999999 | |
| 0.82 | -45.00 | 0.41 | -45.00 | -6.64 | 235.60 | 3.64 | 199.62 | 0.1887 | -1119.3 | 999999 | |
| 0.00 | 2.00 | 0.00 | 1.00 | -4.11 | 235.59 | 3.63 | 205.33 | 0.1482 | -721.0 | -636.0 | |
| 0.00 | 0.82 | 0.00 | 0.42 | -8.88 | 235.56 | 3.60 | 196.06 | 0.2250 | -686.0 | -506.3 | |
| 1.45 | -45.00 | 0.73 | -45.00 | -6.52 | 235.51 | 3.55 | 199.38 | 0.1862 | -902.3 | 999999 | |
| 1.09 | -45.00 | 0.55 | -45.00 | -5.99 | 235.29 | 3.33 | 199.21 | 0.1764 | -1034.3 | 999999 | |
| 0.00 | 4.81 | 0.00 | 2.42 | -6.17 | 234.80 | 2.84 | 196.25 | 0.1768 | -935.0 | -696.8 | |
| 0.00 | 1.09 | 0.00 | 0.56 | -10.97 | 234.49 | 2.53 | 189.80 | 0.2557 | -937.0 | -658.7 | |
| 0.00 | 3.45 | 0.00 | 1.74 | -6.48 | 234.13 | 2.17 | 192.16 | 0.1791 | -938.0 | -668.5 | |
| 0.00 | 10.99 | 0.00 | 5.54 | -7.04 | 233.88 | 1.92 | 190.27 | 0.1877 | -1039.0 | -917.6 | |
| 0.00 | 1.45 | 0.00 | 0.73 | -7.19 | 233.58 | 1.62 | 188.53 | 0.1894 | -934.0 | -728.4 | |
| 0.00 | 1.63 | 0.00 | 0.83 | -7.97 | 233.33 | 1.37 | 186.77 | 0.2021 | -834.0 | -736.2 | |
| 0.00 | 0.91 | 0.00 | 0.46 | -6.88 | 233.24 | 1.28 | 186.97 | 0.1833 | -826.0 | -554.2 | |
| 0.00 | 1.54 | 0.00 | 0.78 | -7.66 | 233.18 | 1.22 | 186.18 | 0.1965 | -906.0 | -710.2 | |
| 0.00 | 2.81 | 0.00 | 1.42 | -7.44 | 233.12 | 1.16 | 185.98 | 0.1927 | -944.0 | -844.4 | |
| 0.00 | 1.45 | 0.00 | 0.73 | -7.78 | 232.41 | 0.45 | 182.26 | 0.1976 | -929.0 | -714.2 | |
| 0.00 | 1.45 | 0.00 | 0.73 | -8.03 | 232.07 | 0.11 | 180.54 | 0.2017 | -860.0 | -699.6 | |
| 0.00 | 0.91 | 0.00 | 0.46 | -8.81 | 232.04 | 0.08 | 180.36 | 0.2151 | -815.0 | -596.6 | |
| 0.00 | 1.54 | 0.00 | 0.78 | -8.74 | 231.85 | -0.11 | 179.51 | 0.2140 | -880.0 | -726.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
