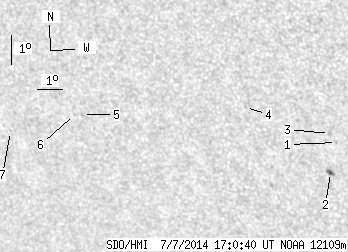

SDO HMI 2014-07-07 17:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.63 | 9.72 | 1.02 | 6.19 | -22.05 | 202.42 | -29.54 | 133.18 | 0.6268 | -124.5 | -146.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-07 17:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.00 | 0.00 | 0.62 | -21.85 | 205.14 | -26.82 | 135.28 | 0.5973 | 360.0 | 253.2 | |
| 1.63 | 4.27 | 1.02 | 2.67 | -22.88 | 204.70 | -27.26 | 136.12 | 0.6110 | -793.8 | -607.8 | |
| 0.00 | 1.73 | 0.00 | 1.06 | -21.55 | 204.95 | -27.01 | 134.70 | 0.5966 | 669.0 | 484.0 | |
| 0.00 | 0.73 | 0.00 | 0.46 | -20.77 | 201.98 | -29.98 | 130.87 | 0.6200 | 483.0 | 446.2 | |
| 0.00 | 1.45 | 0.00 | 0.99 | -21.23 | 195.49 | -36.47 | 126.36 | 0.6904 | -420.0 | -436.6 | |
| 0.00 | 0.27 | 0.00 | 0.19 | -21.25 | 195.16 | -36.80 | 126.16 | 0.6938 | -614.0 | -586.7 | |
| 0.00 | 0.27 | 0.00 | 0.20 | -21.93 | 192.26 | -39.70 | 125.14 | 0.7269 | -542.0 | -447.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
