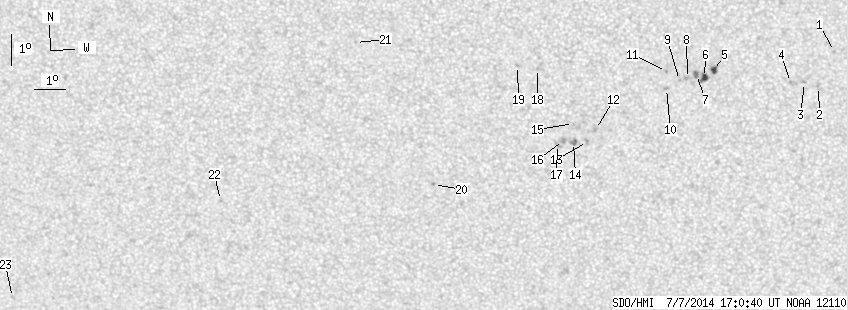

SDO HMI 2014-07-07 17:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 5.54 | 52.21 | 2.92 | 27.68 | -16.50 | 233.82 | 1.86 | 186.13 | 0.3556 | 35.5 | -20.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-07 17:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.36 | 0.00 | 0.72 | -14.68 | 240.76 | 8.80 | 205.37 | 0.3470 | 687.0 | 535.3 | |
| 0.00 | 3.45 | 0.00 | 1.83 | -15.80 | 240.29 | 8.33 | 202.86 | 0.3605 | 739.0 | 591.6 | |
| 0.00 | 1.18 | 0.00 | 0.63 | -15.66 | 239.84 | 7.88 | 201.89 | 0.3557 | 1000.0 | 784.2 | |
| 0.00 | 1.36 | 0.00 | 0.72 | -15.66 | 239.39 | 7.43 | 200.76 | 0.3530 | 880.0 | 729.0 | |
| 2.54 | 4.18 | 1.34 | 2.19 | -15.25 | 236.93 | 4.97 | 194.55 | 0.3343 | 1008.3 | 820.8 | |
| 3.00 | 5.54 | 1.58 | 2.91 | -15.48 | 236.65 | 4.69 | 193.60 | 0.3368 | 969.8 | 728.2 | |
| 0.00 | 3.99 | 0.00 | 2.10 | -15.38 | 236.40 | 4.44 | 192.96 | 0.3342 | 1070.0 | 898.3 | |
| 0.00 | 3.09 | 0.00 | 1.62 | -15.50 | 236.11 | 4.16 | 192.07 | 0.3353 | 877.0 | 697.3 | |
| 0.00 | 0.91 | 0.00 | 0.48 | -15.57 | 235.86 | 3.90 | 191.32 | 0.3354 | 751.0 | 612.4 | |
| 0.00 | 2.00 | 0.00 | 1.05 | -15.82 | 235.45 | 3.49 | 190.03 | 0.3383 | 807.0 | 625.2 | |
| 0.00 | 0.82 | 0.00 | 0.43 | -15.27 | 235.45 | 3.49 | 190.30 | 0.3294 | 913.0 | 741.1 | |
| 0.00 | 2.18 | 0.00 | 1.15 | -17.14 | 233.21 | 1.25 | 183.38 | 0.3556 | -874.0 | -714.7 | |
| 0.00 | 2.27 | 0.00 | 1.21 | -17.54 | 232.96 | 1.00 | 182.64 | 0.3618 | -937.0 | -755.2 | |
| 0.00 | 3.99 | 0.00 | 2.12 | -17.57 | 232.51 | 0.55 | 181.46 | 0.3621 | -900.0 | -851.2 | |
| 0.00 | 1.00 | 0.00 | 0.53 | -16.95 | 232.51 | 0.55 | 181.50 | 0.3519 | -721.0 | -655.3 | |
| 0.00 | 3.18 | 0.00 | 1.69 | -17.50 | 232.19 | 0.23 | 180.61 | 0.3609 | -1095.0 | -822.3 | |
| 0.00 | 3.45 | 0.00 | 1.83 | -17.63 | 232.00 | 0.04 | 180.10 | 0.3630 | -657.0 | -610.6 | |
| 0.00 | 1.00 | 0.00 | 0.52 | -15.17 | 231.37 | -0.59 | 178.23 | 0.3226 | -833.0 | -546.9 | |
| 0.00 | 2.09 | 0.00 | 1.09 | -15.07 | 230.74 | -1.22 | 176.31 | 0.3215 | -738.0 | -607.7 | |
| 0.00 | 1.36 | 0.00 | 0.73 | -18.95 | 228.00 | -3.96 | 170.31 | 0.3899 | -769.0 | -596.5 | |
| 0.00 | 0.91 | 0.00 | 0.48 | -14.35 | 225.64 | -6.32 | 160.84 | 0.3265 | -826.0 | -562.9 | |
| 0.00 | 1.27 | 0.00 | 0.70 | -19.53 | 221.03 | -10.93 | 155.45 | 0.4317 | -785.0 | -586.0 | |
| 0.00 | 1.63 | 0.00 | 0.95 | -22.90 | 213.65 | -18.31 | 146.82 | 0.5309 | -623.0 | -512.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
