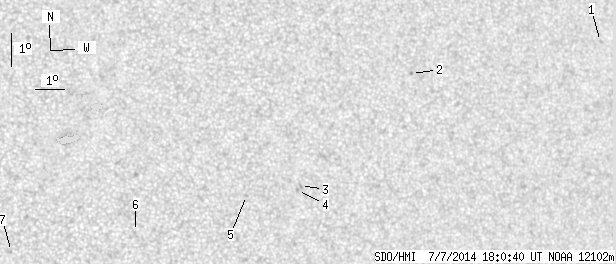

SDO HMI 2014-07-07 18:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 7.44 | 0.00 | 4.22 | 6.40 | 259.82 | 28.41 | 276.39 | 0.4758 | 377.6 | 327.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-07 18:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.09 | 0.00 | 0.70 | 9.65 | 270.42 | 39.02 | 280.91 | 0.6344 | 146.0 | 126.3 | |
| 0.00 | 0.91 | 0.00 | 0.53 | 8.93 | 263.16 | 31.75 | 281.18 | 0.5320 | -600.0 | -506.3 | |
| 0.00 | 1.54 | 0.00 | 0.86 | 5.64 | 258.98 | 27.58 | 275.36 | 0.4646 | 640.0 | 563.7 | |
| 0.00 | 1.36 | 0.00 | 0.76 | 5.49 | 258.87 | 27.47 | 275.05 | 0.4628 | 756.0 | 597.6 | |
| 0.00 | 1.27 | 0.00 | 0.70 | 5.38 | 257.12 | 25.71 | 275.02 | 0.4354 | 578.0 | 403.1 | |
| 0.00 | 0.54 | 0.00 | 0.29 | 4.38 | 253.36 | 21.96 | 272.89 | 0.3749 | 500.0 | 513.7 | |
| 0.00 | 0.73 | 0.00 | 0.38 | 3.86 | 249.32 | 17.91 | 271.54 | 0.3083 | 623.0 | 506.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
