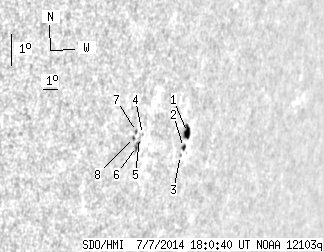

SDO HMI 2014-07-07 18:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 6.63 | 20.79 | 7.86 | 23.38 | -7.53 | 294.45 | 63.05 | 259.81 | 0.8993 | 96.0 | -171.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-07 18:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 5.54 | 8.26 | 6.57 | 9.79 | -7.43 | 295.95 | 64.55 | 260.15 | 0.9105 | 432.5 | 256.8 | |
| 1.09 | 2.18 | 1.29 | 2.58 | -7.89 | 295.79 | 64.39 | 259.63 | 0.9098 | 479.5 | 389.4 | |
| 0.00 | 0.82 | 0.00 | 0.96 | -8.12 | 295.65 | 64.24 | 259.34 | 0.9090 | 302.0 | 390.7 | |
| 0.00 | 1.00 | 0.00 | 1.06 | -7.31 | 292.84 | 61.44 | 259.81 | 0.8870 | -182.0 | -119.7 | |
| 0.00 | 0.91 | 0.00 | 0.96 | -7.40 | 292.67 | 61.27 | 259.69 | 0.8857 | -425.0 | -395.2 | |
| 0.00 | 4.54 | 0.00 | 4.80 | -7.67 | 292.54 | 61.14 | 259.37 | 0.8850 | -600.0 | -416.4 | |
| 0.00 | 1.45 | 0.00 | 1.52 | -7.20 | 292.43 | 61.03 | 259.88 | 0.8836 | -606.0 | -535.6 | |
| 0.00 | 1.63 | 0.00 | 1.71 | -7.38 | 292.28 | 60.88 | 259.66 | 0.8826 | -618.0 | -610.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
