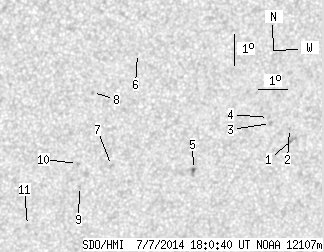

SDO HMI 2014-07-07 18:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.64 | 20.24 | 0.37 | 11.65 | -14.38 | 256.27 | 24.86 | 233.12 | 0.5104 | 350.9 | 304.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-07 18:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 3.45 | 0.00 | 2.05 | -14.08 | 260.06 | 28.66 | 237.56 | 0.5533 | 774.0 | 550.7 | |
| 0.00 | 1.09 | 0.00 | 0.64 | -13.72 | 259.91 | 28.50 | 237.99 | 0.5488 | 571.0 | 542.8 | |
| 0.00 | 2.00 | 0.00 | 1.17 | -13.54 | 259.21 | 27.80 | 237.66 | 0.5388 | 365.0 | 326.5 | |
| 0.00 | 1.54 | 0.00 | 0.90 | -13.35 | 259.11 | 27.71 | 237.88 | 0.5362 | 698.0 | 571.6 | |
| 0.64 | 3.63 | 0.37 | 2.10 | -14.94 | 256.67 | 25.27 | 232.93 | 0.5189 | 917.1 | 686.3 | |
| 0.00 | 0.45 | 0.00 | 0.25 | -11.19 | 254.36 | 22.96 | 236.87 | 0.4588 | 686.0 | 590.2 | |
| 0.00 | 1.82 | 0.00 | 1.03 | -14.73 | 253.82 | 22.42 | 230.01 | 0.4833 | 747.0 | 556.3 | |
| 0.00 | 1.18 | 0.00 | 0.65 | -12.38 | 252.95 | 21.55 | 232.98 | 0.4511 | 709.0 | 624.1 | |
| 0.00 | 1.54 | 0.00 | 0.87 | -15.38 | 252.80 | 21.40 | 227.66 | 0.4778 | -689.0 | -468.0 | |
| 0.00 | 1.63 | 0.00 | 0.92 | -14.64 | 252.66 | 21.25 | 228.69 | 0.4688 | -483.0 | -413.0 | |
| 0.00 | 1.91 | 0.00 | 1.07 | -16.60 | 251.17 | 19.76 | 223.52 | 0.4725 | -645.0 | -443.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
