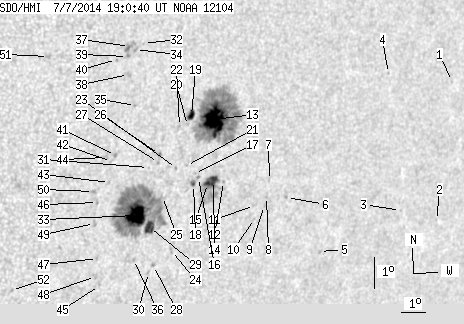

SDO HMI 2014-07-07 19:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 86.15 | 501.32 | 56.07 | 325.54 | -11.89 | 268.21 | 37.36 | 246.80 | 0.6484 | 217.1 | -36.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-07 19:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.54 | 0.00 | 0.42 | -9.68 | 279.45 | 48.60 | 254.26 | 0.7705 | 569.0 | 534.7 | |
| 0.00 | 0.64 | 0.00 | 0.51 | -14.08 | 279.75 | 48.90 | 248.87 | 0.7858 | 580.0 | 491.4 | |
| 0.00 | 1.00 | 0.00 | 0.77 | -13.67 | 277.94 | 47.09 | 248.73 | 0.7660 | 479.0 | 423.5 | |
| 0.00 | 0.73 | 0.00 | 0.53 | -9.29 | 276.46 | 45.61 | 253.86 | 0.7365 | 612.0 | 538.5 | |
| 0.00 | 1.18 | 0.00 | 0.86 | -14.83 | 274.59 | 43.74 | 245.91 | 0.7344 | 517.0 | 458.5 | |
| 0.00 | 1.18 | 0.00 | 0.82 | -13.02 | 272.76 | 41.91 | 247.46 | 0.7069 | 613.0 | 429.0 | |
| 0.00 | 0.64 | 0.00 | 0.44 | -12.45 | 271.93 | 41.08 | 247.87 | 0.6950 | 515.0 | 461.7 | |
| 0.00 | 0.91 | 0.00 | 0.63 | -12.95 | 271.91 | 41.06 | 247.17 | 0.6968 | 584.0 | 638.6 | |
| 0.00 | 1.09 | 0.00 | 0.75 | -13.24 | 271.88 | 41.03 | 246.77 | 0.6977 | 583.0 | 555.6 | |
| 0.00 | 0.73 | 0.00 | 0.50 | -13.64 | 271.55 | 40.70 | 246.07 | 0.6956 | 446.0 | 381.8 | |
| 0.00 | 1.72 | 0.00 | 1.18 | -13.22 | 271.46 | 40.61 | 246.60 | 0.6928 | 589.0 | 537.6 | |
| 0.00 | 1.18 | 0.00 | 0.79 | -12.40 | 270.04 | 39.19 | 247.04 | 0.6725 | 465.0 | 348.1 | |
| 37.40 | 199.09 | 24.49 | 130.51 | -10.42 | 269.36 | 38.51 | 249.54 | 0.6558 | 1137.3 | 278.6 | |
| 5.90 | 37.04 | 3.92 | 24.58 | -12.35 | 269.63 | 38.78 | 246.91 | 0.6674 | 749.8 | 124.4 | |
| 3.72 | -14.00 | 2.46 | -14.00 | -12.44 | 269.40 | 38.55 | 246.67 | 0.6651 | 879.9 | 999999 | |
| 0.00 | 1.00 | 0.00 | 0.66 | -12.23 | 269.01 | 38.16 | 246.76 | 0.6594 | 702.0 | 598.6 | |
| 0.00 | 0.91 | 0.00 | 0.59 | -12.10 | 268.83 | 37.98 | 246.86 | 0.6566 | 507.0 | 539.8 | |
| 1.00 | 3.00 | 0.66 | 1.97 | -12.45 | 268.85 | 38.00 | 246.37 | 0.6584 | 726.5 | 683.6 | |
| 4.63 | 6.45 | 2.99 | 4.16 | -10.26 | 268.43 | 37.58 | 249.34 | 0.6436 | 975.0 | 785.0 | |
| 0.00 | 0.82 | 0.00 | 0.53 | -10.57 | 268.31 | 37.46 | 248.83 | 0.6435 | 701.0 | 632.8 | |
| 0.00 | 1.18 | 0.00 | 0.77 | -11.83 | 268.47 | 37.62 | 247.06 | 0.6510 | 610.0 | 414.8 | |
| 0.00 | 0.91 | 0.00 | 0.58 | -10.59 | 268.00 | 37.15 | 248.65 | 0.6397 | 631.0 | 507.7 | |
| 0.00 | 0.54 | 0.00 | 0.35 | -11.91 | 268.09 | 37.24 | 246.74 | 0.6467 | 497.0 | 352.3 | |
| 0.00 | 2.36 | 0.00 | 1.56 | -14.53 | 268.36 | 37.51 | 243.17 | 0.6628 | -497.0 | -390.6 | |
| 0.00 | 1.36 | 0.00 | 0.88 | -12.78 | 267.68 | 36.83 | 245.26 | 0.6459 | -146.0 | -90.9 | |
| 0.00 | 1.72 | 0.00 | 1.10 | -11.44 | 267.35 | 36.50 | 247.04 | 0.6354 | 555.0 | 477.4 | |
| 0.00 | 1.27 | 0.00 | 0.81 | -11.69 | 267.35 | 36.50 | 246.67 | 0.6366 | 566.0 | 443.1 | |
| 0.00 | 1.54 | 0.00 | 1.01 | -14.98 | 267.73 | 36.88 | 242.17 | 0.6579 | -638.0 | -570.2 | |
| 8.35 | 189.83 | 5.41 | 121.80 | -13.75 | 267.34 | 36.49 | 243.67 | 0.6468 | -773.5 | -500.0 | |
| 0.00 | 1.63 | 0.00 | 1.07 | -15.20 | 267.58 | 36.73 | 241.77 | 0.6573 | -596.0 | -493.6 | |
| 0.00 | 0.82 | 0.00 | 0.52 | -11.84 | 266.98 | 36.13 | 246.26 | 0.6328 | 260.0 | 235.1 | |
| 0.00 | 0.27 | 0.00 | 0.17 | -7.93 | 266.30 | 35.46 | 251.89 | 0.6067 | 492.0 | 518.7 | |
| 25.15 | -29.00 | 16.14 | -29.00 | -13.35 | 266.76 | 35.92 | 243.91 | 0.6377 | -1190.1 | 999999 | |
| 0.00 | 2.09 | 0.00 | 1.29 | -8.10 | 266.02 | 35.17 | 251.48 | 0.6036 | 891.0 | 723.1 | |
| 0.00 | 1.00 | 0.00 | 0.63 | -9.86 | 266.21 | 35.36 | 248.83 | 0.6137 | 695.0 | 549.7 | |
| 0.00 | 1.27 | 0.00 | 0.82 | -14.76 | 266.90 | 36.05 | 241.98 | 0.6470 | -616.0 | -486.3 | |
| 0.00 | 6.17 | 0.00 | 3.82 | -8.00 | 265.78 | 34.93 | 251.52 | 0.6001 | 943.0 | 791.8 | |
| 0.00 | 3.09 | 0.00 | 1.92 | -8.88 | 265.84 | 34.99 | 250.16 | 0.6045 | 754.0 | 530.1 | |
| 0.00 | 2.00 | 0.00 | 1.24 | -8.31 | 265.74 | 34.89 | 251.01 | 0.6008 | 750.0 | 700.5 | |
| 0.00 | 1.00 | 0.00 | 0.61 | -8.39 | 265.33 | 34.48 | 250.68 | 0.5957 | 733.0 | 678.4 | |
| 0.00 | 1.63 | 0.00 | 1.02 | -11.41 | 265.66 | 34.81 | 246.14 | 0.6141 | 722.0 | 533.0 | |
| 0.00 | 1.36 | 0.00 | 0.85 | -11.59 | 265.53 | 34.68 | 245.79 | 0.6134 | 444.0 | 341.6 | |
| 0.00 | 1.27 | 0.00 | 0.80 | -12.25 | 265.55 | 34.70 | 244.80 | 0.6171 | -691.0 | -522.4 | |
| 0.00 | 2.91 | 0.00 | 1.81 | -11.46 | 265.29 | 34.44 | 245.85 | 0.6096 | 41.0 | 133.6 | |
| 0.00 | 0.82 | 0.00 | 0.52 | -15.55 | 265.73 | 34.89 | 240.11 | 0.6378 | -639.0 | -555.8 | |
| 0.00 | 1.18 | 0.00 | 0.74 | -12.87 | 265.19 | 34.34 | 243.64 | 0.6160 | -728.0 | -561.1 | |
| 0.00 | 0.91 | 0.00 | 0.58 | -14.67 | 265.49 | 34.64 | 241.20 | 0.6298 | -743.0 | -614.9 | |
| 0.00 | 2.45 | 0.00 | 1.57 | -15.25 | 265.52 | 34.67 | 240.40 | 0.6335 | -790.0 | -564.6 | |
| 0.00 | 2.72 | 0.00 | 1.72 | -13.54 | 265.18 | 34.34 | 242.65 | 0.6196 | -774.0 | -625.8 | |
| 0.00 | 2.00 | 0.00 | 1.25 | -12.52 | 264.99 | 34.14 | 244.05 | 0.6115 | -802.0 | -594.7 | |
| 0.00 | 2.72 | 0.00 | 1.63 | -8.21 | 262.81 | 31.96 | 249.61 | 0.5610 | -772.0 | -568.9 | |
| 0.00 | 1.45 | 0.00 | 0.90 | -15.58 | 262.41 | 31.56 | 237.66 | 0.5989 | -627.0 | -569.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
