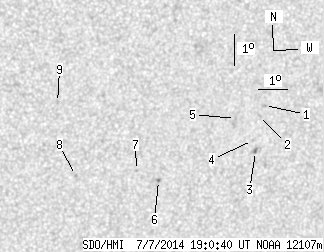

SDO HMI 2014-07-07 19:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 10.98 | 0.00 | 6.42 | -13.67 | 257.94 | 27.09 | 236.61 | 0.5312 | 666.7 | 568.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-07 19:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.63 | 0.00 | 0.97 | -12.67 | 260.19 | 29.34 | 240.38 | 0.5520 | 491.0 | 405.7 | |
| 0.00 | 1.27 | 0.00 | 0.75 | -12.98 | 260.05 | 29.20 | 239.76 | 0.5523 | 692.0 | 562.5 | |
| 0.00 | 2.18 | 0.00 | 1.30 | -14.13 | 260.06 | 29.21 | 237.95 | 0.5604 | 756.0 | 584.8 | |
| 0.00 | 0.45 | 0.00 | 0.27 | -13.77 | 259.90 | 29.05 | 238.38 | 0.5560 | 390.0 | 443.8 | |
| 0.00 | 1.00 | 0.00 | 0.59 | -13.05 | 259.20 | 28.35 | 238.93 | 0.5421 | 597.0 | 528.5 | |
| 0.00 | 1.27 | 0.00 | 0.74 | -14.95 | 256.72 | 25.87 | 233.53 | 0.5263 | 898.0 | 813.8 | |
| 0.00 | 0.91 | 0.00 | 0.52 | -14.61 | 255.91 | 25.06 | 233.23 | 0.5136 | 758.0 | 573.7 | |
| 0.00 | 1.09 | 0.00 | 0.62 | -14.71 | 253.81 | 22.96 | 230.70 | 0.4896 | 729.0 | 609.8 | |
| 0.00 | 1.18 | 0.00 | 0.66 | -12.36 | 252.97 | 22.12 | 233.72 | 0.4581 | 689.0 | 550.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
