SDO HMI 2014-07-07 19:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 6.45 | 54.74 | 3.39 | 29.14 | -16.49 | 233.61 | 2.76 | 188.75 | 0.3617 | 99.0 | -11.6 | |
|
previous
or next observation for the same group /

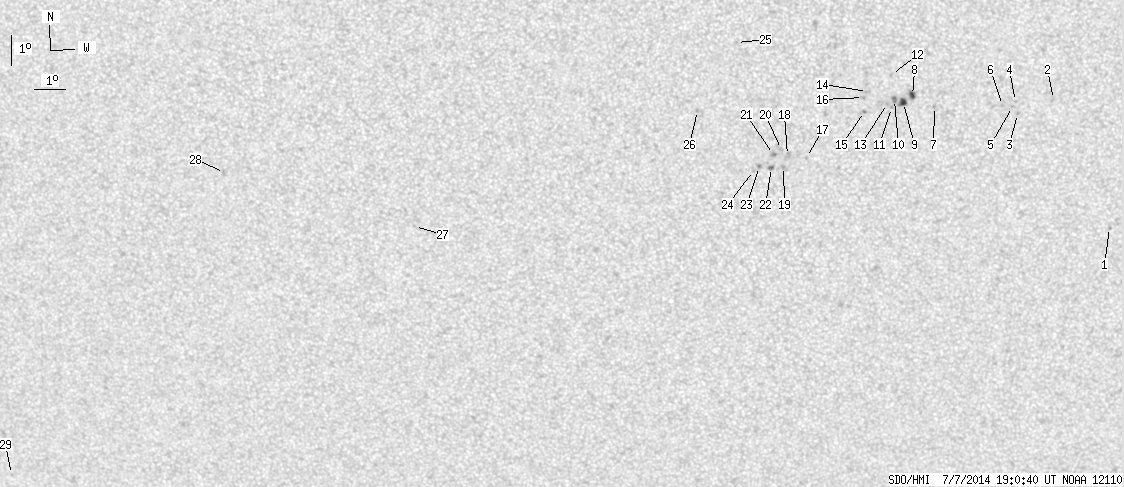

back to the solar disc SDO HMI 2014-07-07 19:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.09 | 0.00 | 0.60 | -19.64 | 243.61 | 12.76 | 207.92 | 0.4462 | 784.0 | 735.5 | |
| 0.00 | 1.72 | 0.00 | 0.92 | -15.43 | 241.51 | 10.66 | 208.80 | 0.3718 | 712.0 | 602.4 | |
| 0.00 | 0.91 | 0.00 | 0.48 | -15.87 | 240.38 | 9.53 | 205.63 | 0.3697 | 777.0 | 683.4 | |
| 0.00 | 1.09 | 0.00 | 0.58 | -15.48 | 240.29 | 9.44 | 205.91 | 0.3634 | 870.0 | 665.6 | |
| 0.00 | 1.00 | 0.00 | 0.53 | -15.64 | 240.20 | 9.36 | 205.50 | 0.3652 | 899.0 | 720.2 | |
| 0.00 | 0.64 | 0.00 | 0.34 | -15.60 | 239.88 | 9.03 | 204.78 | 0.3624 | 950.0 | 819.1 | |
| 0.00 | 1.27 | 0.00 | 0.67 | -15.61 | 237.71 | 6.86 | 199.32 | 0.3492 | 744.0 | 537.9 | |
| 2.36 | 3.90 | 1.24 | 2.06 | -15.25 | 237.00 | 6.15 | 197.79 | 0.3399 | 1021.2 | 843.8 | |
| 3.27 | 5.54 | 1.72 | 2.92 | -15.48 | 236.72 | 5.87 | 196.83 | 0.3420 | 1017.0 | 678.2 | |
| 0.00 | 3.36 | 0.00 | 1.77 | -15.38 | 236.43 | 5.58 | 196.13 | 0.3391 | 1000.0 | 924.0 | |
| 0.00 | 1.27 | 0.00 | 0.67 | -15.63 | 236.34 | 5.49 | 195.67 | 0.3428 | 721.0 | 585.6 | |
| 0.00 | 1.18 | 0.00 | 0.62 | -14.57 | 236.32 | 5.47 | 196.51 | 0.3258 | 668.0 | 489.8 | |
| 0.00 | 1.27 | 0.00 | 0.67 | -15.50 | 236.21 | 5.36 | 195.42 | 0.3401 | 826.0 | 731.3 | |
| 0.00 | 2.27 | 0.00 | 1.19 | -15.11 | 235.57 | 4.72 | 193.94 | 0.3312 | 430.0 | 546.5 | |
| 0.00 | 1.45 | 0.00 | 0.77 | -15.76 | 235.49 | 4.64 | 193.24 | 0.3412 | 923.0 | 703.2 | |
| 0.00 | 1.72 | 0.00 | 0.91 | -15.31 | 235.45 | 4.60 | 193.45 | 0.3338 | 923.0 | 730.2 | |
| 0.00 | 0.91 | 0.00 | 0.48 | -17.24 | 233.67 | 2.82 | 187.53 | 0.3598 | -796.0 | -673.2 | |
| 0.00 | 4.36 | 0.00 | 2.31 | -17.17 | 233.06 | 2.21 | 185.94 | 0.3575 | -670.0 | -732.9 | |
| 0.00 | 2.00 | 0.00 | 1.06 | -17.53 | 232.94 | 2.09 | 185.51 | 0.3631 | -948.0 | -759.2 | |
| 0.00 | 1.82 | 0.00 | 0.96 | -16.98 | 232.87 | 2.02 | 185.48 | 0.3540 | -740.0 | -668.0 | |
| 0.00 | 2.36 | 0.00 | 1.25 | -17.14 | 232.61 | 1.76 | 184.76 | 0.3563 | -1025.0 | -886.2 | |
| 0.82 | 2.81 | 0.43 | 1.50 | -17.56 | 232.55 | 1.70 | 184.50 | 0.3631 | -982.9 | -790.2 | |
| 0.00 | 2.18 | 0.00 | 1.16 | -17.53 | 232.17 | 1.32 | 183.49 | 0.3621 | -1011.0 | -855.0 | |
| 0.00 | 1.45 | 0.00 | 0.77 | -17.66 | 231.98 | 1.13 | 182.97 | 0.3641 | -715.0 | -623.6 | |
| 0.00 | 1.27 | 0.00 | 0.66 | -13.53 | 231.43 | 0.58 | 181.91 | 0.2954 | -876.0 | -568.7 | |
| 0.00 | 1.54 | 0.00 | 0.81 | -15.71 | 230.20 | -0.65 | 178.10 | 0.3317 | -874.0 | -688.9 | |
| 0.00 | 0.91 | 0.00 | 0.50 | -19.54 | 220.98 | -9.87 | 157.58 | 0.4254 | -820.0 | -649.5 | |
| 0.00 | 2.72 | 0.00 | 1.51 | -17.85 | 214.84 | -16.01 | 144.11 | 0.4497 | -735.0 | -534.6 | |
| 0.00 | 0.73 | 0.00 | 0.47 | -28.36 | 205.53 | -25.32 | 144.30 | 0.6471 | -617.0 | -535.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
