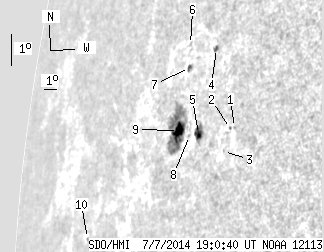

SDO HMI 2014-07-07 19:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 18.52 | 86.26 | 22.62 | 107.12 | 8.98 | 164.22 | -66.63 | 81.75 | 0.9177 | -394.7 | -33.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-07 19:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.82 | 0.00 | 0.88 | 9.18 | 167.98 | -62.87 | 81.50 | 0.8902 | -462.0 | -444.3 | |
| 0.00 | 1.18 | 0.00 | 1.29 | 9.14 | 167.72 | -63.13 | 81.56 | 0.8922 | -209.0 | -153.6 | |
| 0.00 | 0.64 | 0.00 | 0.70 | 8.41 | 167.45 | -63.39 | 82.37 | 0.8942 | 211.0 | 223.0 | |
| 0.73 | 2.27 | 0.85 | 2.65 | 11.51 | 165.83 | -65.02 | 78.96 | 0.9068 | -359.9 | -288.8 | |
| 6.08 | 12.26 | 7.16 | 14.41 | 8.86 | 165.51 | -65.34 | 81.88 | 0.9088 | -689.7 | -404.0 | |
| 0.00 | 1.45 | 0.00 | 1.83 | 11.52 | 163.81 | -67.04 | 78.99 | 0.9208 | 226.0 | 237.9 | |
| 1.00 | 2.91 | 1.24 | 3.62 | 10.82 | 164.05 | -66.80 | 79.75 | 0.9191 | 460.1 | 396.3 | |
| 0.00 | 1.09 | 0.00 | 1.31 | 8.76 | 164.87 | -65.98 | 81.99 | 0.9134 | -220.0 | -229.1 | |
| 10.71 | 62.64 | 13.37 | 78.65 | 8.87 | 163.97 | -66.88 | 81.88 | 0.9196 | -479.4 | -5.4 | |
| 0.00 | 1.00 | 0.00 | 1.78 | 5.13 | 156.77 | -74.08 | 85.69 | 0.9617 | 241.0 | 187.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
