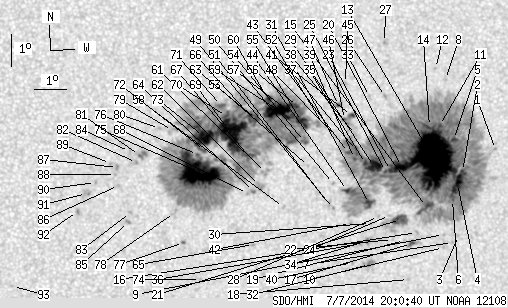

SDO HMI 2014-07-07 20:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 473.90 | 2402.81 | 242.47 | 1230.11 | -7.00 | 239.81 | 9.52 | 220.54 | 0.2498 | 62.5 | 59.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-07 20:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.36 | 0.00 | 0.71 | -6.88 | 244.93 | 14.63 | 234.43 | 0.3097 | -527.0 | -317.4 | |
| 2.27 | 1206.26 | 1.18 | 622.89 | -7.54 | 243.90 | 13.61 | 230.68 | 0.3028 | 1006.4 | 463.7 | |
| 0.00 | 1.09 | 0.00 | 0.57 | -9.53 | 243.84 | 13.55 | 225.76 | 0.3240 | -363.0 | -205.4 | |
| 11.53 | -2.00 | 6.00 | -2.00 | -7.91 | 243.75 | 13.46 | 229.43 | 0.3049 | 1187.7 | 999999 | |
| 2.72 | -2.00 | 1.41 | -2.00 | -6.54 | 243.59 | 13.29 | 232.71 | 0.2884 | 908.8 | 999999 | |
| 0.73 | -2.00 | 0.38 | -2.00 | -8.41 | 243.61 | 13.32 | 227.90 | 0.3085 | 834.9 | 999999 | |
| 0.00 | 1.18 | 0.00 | 0.62 | -9.75 | 243.66 | 13.37 | 224.89 | 0.3243 | 370.0 | 251.7 | |
| 0.00 | 1.09 | 0.00 | 0.56 | -4.69 | 243.30 | 13.00 | 237.64 | 0.2666 | -267.0 | -340.6 | |
| 0.00 | 1.09 | 0.00 | 0.57 | -9.49 | 243.37 | 13.07 | 224.82 | 0.3179 | 370.0 | 428.8 | |
| 0.00 | 0.82 | 0.00 | 0.43 | -9.90 | 243.38 | 13.09 | 223.95 | 0.3228 | -668.0 | -504.7 | |
| 1.45 | -2.00 | 0.75 | -2.00 | -6.10 | 243.14 | 12.84 | 233.00 | 0.2780 | 1142.6 | 999999 | |
| 0.00 | 0.82 | 0.00 | 0.42 | -4.34 | 242.98 | 12.68 | 238.11 | 0.2590 | -693.0 | -566.1 | |
| 155.88 | -2.00 | 80.58 | -2.00 | -7.12 | 242.97 | 12.68 | 229.80 | 0.2864 | 1585.8 | 999999 | |
| 1.27 | -2.00 | 0.65 | -2.00 | -6.13 | 242.82 | 12.53 | 232.24 | 0.2740 | 1260.0 | 999999 | |
| 8.72 | -2.00 | 4.53 | -2.00 | -8.61 | 242.80 | 12.50 | 225.60 | 0.3009 | 895.8 | 999999 | |
| 0.00 | 1.27 | 0.00 | 0.66 | -9.42 | 242.51 | 12.22 | 223.05 | 0.3071 | 735.0 | 561.7 | |
| 1.54 | 5.63 | 0.80 | 2.93 | -9.76 | 242.36 | 12.07 | 221.95 | 0.3096 | 801.2 | 264.6 | |
| 0.00 | 1.27 | 0.00 | 0.67 | -10.89 | 242.31 | 12.02 | 219.46 | 0.3231 | 747.0 | 542.0 | |
| 0.00 | 1.18 | 0.00 | 0.61 | -9.66 | 242.14 | 11.84 | 221.63 | 0.3059 | 597.0 | 446.6 | |
| 13.07 | -2.00 | 6.74 | -2.00 | -7.36 | 241.97 | 11.68 | 226.84 | 0.2765 | 1398.8 | 999999 | |
| 9.90 | 25.96 | 5.13 | 13.46 | -9.01 | 241.99 | 11.70 | 222.76 | 0.2962 | 1071.0 | 655.2 | |
| 0.00 | 0.27 | 0.00 | 0.14 | -9.63 | 241.76 | 11.46 | 220.79 | 0.3013 | 649.0 | 649.7 | |
| 1.91 | -2.00 | 0.98 | -2.00 | -7.48 | 241.63 | 11.34 | 225.67 | 0.2737 | 1177.1 | 999999 | |
| 0.00 | 1.09 | 0.00 | 0.56 | -8.88 | 241.64 | 11.35 | 222.20 | 0.2907 | 543.0 | 455.8 | |
| 0.91 | -2.00 | 0.47 | -2.00 | -7.50 | 241.48 | 11.18 | 225.20 | 0.2722 | 1040.2 | 999999 | |
| 0.00 | 1.54 | 0.00 | 0.79 | -5.18 | 241.43 | 11.13 | 231.85 | 0.2457 | -488.0 | -359.1 | |
| 0.00 | 1.18 | 0.00 | 0.60 | -3.52 | 241.37 | 11.08 | 237.47 | 0.2286 | 1002.0 | 799.6 | |
| 0.00 | 1.00 | 0.00 | 0.52 | -8.90 | 241.30 | 11.00 | 221.26 | 0.2871 | -509.0 | -378.8 | |
| 13.07 | -2.00 | 6.72 | -2.00 | -7.34 | 241.13 | 10.83 | 224.72 | 0.2662 | 1313.4 | 999999 | |
| 0.00 | 1.00 | 0.00 | 0.52 | -9.12 | 241.05 | 10.76 | 220.13 | 0.2872 | 857.0 | 745.5 | |
| 4.72 | -2.00 | 2.43 | -2.00 | -8.49 | 241.00 | 10.71 | 221.46 | 0.2787 | 1146.4 | 999999 | |
| 0.00 | 7.54 | 0.00 | 3.92 | -10.40 | 241.06 | 10.77 | 217.39 | 0.3039 | 900.0 | 750.0 | |
| 0.00 | 1.72 | 0.00 | 0.88 | -5.18 | 240.93 | 10.64 | 230.58 | 0.2390 | -657.0 | -460.8 | |
| 0.54 | 4.27 | 0.28 | 2.21 | -9.65 | 240.97 | 10.68 | 218.74 | 0.2932 | 947.8 | 757.0 | |
| 2.00 | -2.00 | 1.02 | -2.00 | -7.25 | 240.85 | 10.55 | 224.22 | 0.2616 | 1205.2 | 999999 | |
| 0.00 | 1.36 | 0.00 | 0.71 | -9.74 | 240.75 | 10.46 | 217.98 | 0.2921 | 755.0 | 651.4 | |
| 3.54 | -2.00 | 1.81 | -2.00 | -6.84 | 240.56 | 10.26 | 224.53 | 0.2533 | 1183.2 | 999999 | |
| 0.00 | 2.00 | 0.00 | 1.02 | -6.35 | 240.51 | 10.22 | 225.84 | 0.2469 | 683.0 | 560.0 | |
| 1.45 | -2.00 | 0.74 | -2.00 | -7.09 | 240.50 | 10.20 | 223.69 | 0.2556 | 766.2 | 999999 | |
| 0.00 | 1.82 | 0.00 | 0.94 | -10.33 | 240.52 | 10.23 | 216.12 | 0.2976 | -181.0 | -107.6 | |
| 2.27 | 12.26 | 1.16 | 6.25 | -5.76 | 240.38 | 10.09 | 227.23 | 0.2384 | -324.9 | 433.5 | |
| 0.00 | 1.36 | 0.00 | 0.70 | -9.11 | 240.42 | 10.13 | 218.46 | 0.2804 | 786.0 | 668.4 | |
| 1.82 | -2.00 | 0.93 | -2.00 | -6.90 | 240.31 | 10.01 | 223.67 | 0.2511 | 704.8 | 999999 | |
| 2.18 | -2.00 | 1.12 | -2.00 | -8.08 | 240.30 | 10.01 | 220.56 | 0.2658 | -913.6 | 999999 | |
| 0.00 | 1.18 | 0.00 | 0.60 | -4.77 | 240.18 | 9.88 | 229.88 | 0.2247 | 901.0 | 741.5 | |
| 0.91 | -41.00 | 0.46 | -41.00 | -5.88 | 240.16 | 9.87 | 226.24 | 0.2371 | 1071.9 | 999999 | |
| 1.09 | 1.91 | 0.55 | 0.97 | -5.44 | 239.97 | 9.68 | 227.04 | 0.2297 | 988.7 | 744.5 | |
| 0.00 | 2.54 | 0.00 | 1.30 | -6.40 | 239.92 | 9.63 | 223.97 | 0.2405 | 313.0 | 403.1 | |
| 0.00 | 1.00 | 0.00 | 0.51 | -8.63 | 239.88 | 9.58 | 218.01 | 0.2685 | -699.0 | -570.7 | |
| 0.00 | 1.18 | 0.00 | 0.61 | -7.86 | 239.86 | 9.57 | 219.84 | 0.2581 | -666.0 | -465.8 | |
| 0.00 | 2.81 | 0.00 | 1.45 | -8.51 | 239.75 | 9.46 | 217.93 | 0.2655 | -767.0 | -531.2 | |
| 0.00 | 1.09 | 0.00 | 0.55 | -6.09 | 239.55 | 9.25 | 223.75 | 0.2322 | 69.0 | 114.4 | |
| 0.00 | 0.82 | 0.00 | 0.42 | -7.32 | 239.07 | 8.78 | 218.80 | 0.2426 | -653.0 | -337.6 | |
| 1.82 | 1039.31 | 0.92 | 526.60 | -6.54 | 238.93 | 8.64 | 220.46 | 0.2310 | 900.9 | -412.6 | |
| 9.26 | -54.00 | 4.70 | -54.00 | -5.92 | 238.83 | 8.54 | 221.94 | 0.2219 | -901.2 | 999999 | |
| 1.36 | -54.00 | 0.69 | -54.00 | -5.46 | 238.70 | 8.41 | 222.95 | 0.2145 | -976.0 | 999999 | |
| 0.27 | -54.00 | 0.14 | -54.00 | -5.70 | 238.55 | 8.25 | 221.66 | 0.2159 | -1063.0 | 999999 | |
| 0.00 | 1.72 | 0.00 | 0.88 | -8.59 | 238.32 | 8.02 | 213.31 | 0.2524 | -651.0 | -449.7 | |
| 28.23 | -54.00 | 14.30 | -54.00 | -5.58 | 238.11 | 7.82 | 220.52 | 0.2094 | -1370.8 | 999999 | |
| 4.81 | -54.00 | 2.43 | -54.00 | -5.23 | 237.80 | 7.51 | 220.45 | 0.2014 | 580.4 | 999999 | |
| 0.00 | 5.54 | 0.00 | 2.82 | -7.49 | 237.74 | 7.45 | 213.87 | 0.2316 | -655.0 | -476.6 | |
| 0.00 | 6.99 | 0.00 | 3.56 | -7.89 | 237.56 | 7.27 | 212.28 | 0.2356 | -727.0 | -598.6 | |
| 4.54 | -54.00 | 2.30 | -54.00 | -5.85 | 237.44 | 7.14 | 217.16 | 0.2057 | -1005.2 | 999999 | |
| 0.00 | 1.82 | 0.00 | 0.93 | -8.08 | 237.38 | 7.08 | 211.21 | 0.2367 | -701.0 | -721.2 | |
| 0.00 | 1.72 | 0.00 | 0.89 | -9.73 | 237.41 | 7.11 | 207.98 | 0.2613 | -679.0 | -514.9 | |
| 1.82 | -54.00 | 0.92 | -54.00 | -5.72 | 237.25 | 6.96 | 216.80 | 0.2021 | -1150.8 | 999999 | |
| 3.27 | -54.00 | 1.66 | -54.00 | -6.96 | 237.20 | 6.91 | 213.22 | 0.2190 | -851.2 | 999999 | |
| 0.00 | 1.27 | 0.00 | 0.65 | -8.14 | 237.19 | 6.90 | 210.41 | 0.2359 | -653.0 | -539.1 | |
| 60.46 | -54.00 | 30.59 | -54.00 | -6.27 | 236.67 | 6.38 | 212.90 | 0.2042 | -1301.6 | 999999 | |
| 3.00 | -54.00 | 1.51 | -54.00 | -5.75 | 236.51 | 6.22 | 213.70 | 0.1951 | -299.6 | 999999 | |
| 2.27 | -54.00 | 1.14 | -54.00 | -5.41 | 236.35 | 6.06 | 214.02 | 0.1888 | -907.2 | 999999 | |
| 0.27 | -54.00 | 0.14 | -54.00 | -6.79 | 235.84 | 5.55 | 208.13 | 0.2046 | -1127.7 | 999999 | |
| 31.68 | -54.00 | 16.01 | -54.00 | -6.36 | 235.81 | 5.52 | 209.02 | 0.1978 | -1344.6 | 999999 | |
| 0.00 | 1.09 | 0.00 | 0.56 | -10.82 | 235.78 | 5.48 | 200.71 | 0.2666 | -711.0 | -495.3 | |
| 73.54 | -54.00 | 37.28 | -54.00 | -7.44 | 235.64 | 5.34 | 205.82 | 0.2129 | -1451.4 | 999999 | |
| 1.09 | -54.00 | 0.55 | -54.00 | -6.92 | 235.63 | 5.34 | 206.93 | 0.2048 | -1306.8 | 999999 | |
| 0.36 | 1.82 | 0.19 | 0.93 | -9.65 | 235.23 | 4.94 | 200.36 | 0.2449 | 920.2 | 686.6 | |
| 0.00 | 2.72 | 0.00 | 1.39 | -8.71 | 234.94 | 4.65 | 200.63 | 0.2282 | -117.0 | -154.2 | |
| 0.00 | 6.17 | 0.00 | 3.11 | -6.17 | 234.85 | 4.56 | 205.07 | 0.1874 | -639.0 | -677.3 | |
| 0.00 | 1.63 | 0.00 | 0.82 | -6.10 | 234.45 | 4.16 | 203.25 | 0.1836 | -758.0 | -609.8 | |
| 0.36 | 5.63 | 0.18 | 2.84 | -6.94 | 233.85 | 3.55 | 198.64 | 0.1932 | -1217.8 | -999.8 | |
| 0.00 | 1.82 | 0.00 | 0.92 | -7.15 | 233.75 | 3.46 | 197.85 | 0.1963 | -1006.0 | -838.2 | |
| 0.00 | 1.45 | 0.00 | 0.74 | -8.71 | 233.58 | 3.29 | 194.93 | 0.2210 | -898.0 | -685.4 | |
| 0.00 | 3.00 | 0.00 | 1.51 | -6.81 | 233.54 | 3.24 | 197.32 | 0.1896 | -882.0 | -625.0 | |
| 0.00 | 2.45 | 0.00 | 1.25 | -8.99 | 233.52 | 3.23 | 194.35 | 0.2254 | -876.0 | -767.8 | |
| 0.00 | 1.09 | 0.00 | 0.55 | -7.86 | 233.20 | 2.91 | 194.24 | 0.2054 | -888.0 | -699.0 | |
| 0.00 | 2.45 | 0.00 | 1.24 | -7.31 | 233.17 | 2.88 | 194.78 | 0.1960 | -1195.0 | -969.3 | |
| 0.00 | 1.00 | 0.00 | 0.50 | -7.52 | 233.11 | 2.82 | 194.21 | 0.1993 | -929.0 | -777.3 | |
| 0.00 | 1.54 | 0.00 | 0.78 | -7.18 | 232.96 | 2.66 | 193.87 | 0.1930 | -807.0 | -671.8 | |
| 0.00 | 1.45 | 0.00 | 0.73 | -7.77 | 232.50 | 2.20 | 190.96 | 0.2012 | -1042.0 | -810.8 | |
| 0.00 | 6.17 | 0.00 | 3.12 | -8.11 | 232.22 | 1.93 | 189.34 | 0.2061 | -847.0 | -752.9 | |
| 0.00 | 2.00 | 0.00 | 1.01 | -8.67 | 231.95 | 1.65 | 187.65 | 0.2149 | -1048.0 | -861.9 | |
| 0.00 | 1.00 | 0.00 | 0.51 | -11.01 | 229.94 | -0.36 | 178.61 | 0.2531 | -686.0 | -445.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
