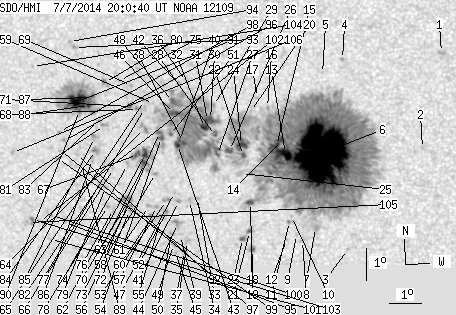

SDO HMI 2014-07-07 20:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 308.23 | 1837.58 | 158.16 | 944.74 | -7.89 | 220.51 | -9.78 | 140.28 | 0.2629 | 589.3 | 204.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-07 20:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 3.00 | 0.00 | 1.50 | -4.83 | 225.85 | -4.44 | 152.12 | 0.1659 | 1001.0 | 871.1 | |
| 0.00 | 1.00 | 0.00 | 0.51 | -7.80 | 225.23 | -5.06 | 156.08 | 0.2165 | 836.0 | 678.0 | |
| 0.00 | 1.18 | 0.00 | 0.61 | -10.97 | 222.84 | -7.45 | 153.07 | 0.2824 | -885.0 | -676.8 | |
| 0.00 | 1.09 | 0.00 | 0.55 | -5.06 | 222.80 | -7.49 | 139.04 | 0.1990 | 971.0 | 738.2 | |
| 0.00 | 0.82 | 0.00 | 0.41 | -5.50 | 222.18 | -8.11 | 138.18 | 0.2117 | -753.0 | -674.7 | |
| 205.63 | 1539.99 | 105.07 | 789.39 | -7.98 | 222.10 | -8.19 | 144.74 | 0.2455 | 1764.0 | 364.2 | |
| 0.00 | 6.99 | 0.00 | 3.61 | -10.29 | 221.86 | -8.44 | 148.86 | 0.2804 | 9.0 | 33.1 | |
| 0.00 | 2.18 | 0.00 | 1.13 | -10.70 | 221.44 | -8.86 | 148.40 | 0.2899 | -722.0 | -541.6 | |
| 0.00 | 1.82 | 0.00 | 0.94 | -10.51 | 221.26 | -9.04 | 147.52 | 0.2889 | -796.0 | -512.0 | |
| 0.00 | 0.91 | 0.00 | 0.47 | -9.95 | 221.12 | -9.18 | 146.02 | 0.2823 | 623.0 | 494.2 | |
| 0.00 | 1.63 | 0.00 | 0.84 | -10.11 | 221.05 | -9.25 | 146.14 | 0.2851 | 709.0 | 608.1 | |
| 0.00 | 1.18 | 0.00 | 0.61 | -10.67 | 220.94 | -9.36 | 146.92 | 0.2940 | 796.0 | 631.3 | |
| 11.44 | -6.00 | 5.86 | -6.00 | -7.99 | 220.98 | -9.31 | 141.24 | 0.2571 | 1206.2 | 999999 | |
| 2.81 | -6.00 | 1.44 | -6.00 | -7.58 | 220.87 | -9.43 | 139.88 | 0.2531 | 990.0 | 999999 | |
| 4.36 | -6.00 | 2.23 | -6.00 | -7.74 | 220.71 | -9.59 | 139.80 | 0.2568 | 1084.4 | 999999 | |
| 0.00 | 1.27 | 0.00 | 0.65 | -6.56 | 220.45 | -9.84 | 135.88 | 0.2450 | 653.0 | 418.4 | |
| 0.00 | 1.09 | 0.00 | 0.56 | -6.26 | 220.15 | -10.14 | 134.12 | 0.2450 | 901.0 | 642.6 | |
| 1.36 | 2.63 | 0.71 | 1.37 | -11.00 | 219.85 | -10.44 | 144.64 | 0.3087 | -966.0 | -671.9 | |
| 2.63 | -6.00 | 1.36 | -6.00 | -9.53 | 219.84 | -10.45 | 141.59 | 0.2892 | 836.2 | 999999 | |
| 0.00 | 1.27 | 0.00 | 0.65 | -6.69 | 219.92 | -10.37 | 134.74 | 0.2529 | 61.0 | 82.7 | |
| 1.00 | 2.54 | 0.52 | 1.32 | -10.43 | 219.78 | -10.51 | 143.33 | 0.3018 | -1017.4 | -755.4 | |
| 1.72 | -6.00 | 0.89 | -6.00 | -8.06 | 219.67 | -10.63 | 137.69 | 0.2725 | 1173.1 | 999999 | |
| 1.36 | 2.91 | 0.71 | 1.51 | -10.66 | 219.55 | -10.74 | 143.19 | 0.3070 | -1087.6 | -850.3 | |
| 8.35 | -6.00 | 4.29 | -6.00 | -7.72 | 219.61 | -10.68 | 136.68 | 0.2689 | 1182.0 | 999999 | |
| 0.00 | 5.72 | 0.00 | 2.95 | -8.62 | 219.59 | -10.71 | 138.85 | 0.2803 | -10.0 | 49.9 | |
| 3.09 | -6.00 | 1.59 | -6.00 | -7.91 | 219.23 | -11.06 | 136.17 | 0.2756 | 967.2 | 999999 | |
| 0.82 | -6.00 | 0.42 | -6.00 | -8.04 | 218.85 | -11.44 | 135.53 | 0.2816 | 877.4 | 999999 | |
| 0.82 | -6.00 | 0.42 | -6.00 | -7.45 | 218.81 | -11.49 | 133.89 | 0.2752 | 1107.9 | 999999 | |
| 0.00 | 2.27 | 0.00 | 1.17 | -6.52 | 218.77 | -11.52 | 131.24 | 0.2651 | 853.0 | 619.1 | |
| 3.18 | -6.00 | 1.63 | -6.00 | -6.95 | 218.66 | -11.63 | 132.20 | 0.2713 | 1158.3 | 999999 | |
| 3.09 | -6.00 | 1.59 | -6.00 | -6.99 | 218.57 | -11.72 | 132.06 | 0.2729 | 1074.5 | 999999 | |
| 4.09 | -6.00 | 2.11 | -6.00 | -7.20 | 218.47 | -11.82 | 132.41 | 0.2766 | 1014.7 | 999999 | |
| 0.00 | 2.45 | 0.00 | 1.27 | -9.42 | 218.18 | -12.12 | 137.18 | 0.3060 | -921.0 | -715.2 | |
| 0.00 | 2.18 | 0.00 | 1.13 | -9.48 | 217.92 | -12.37 | 136.73 | 0.3097 | -934.0 | -767.4 | |
| 0.00 | 2.09 | 0.00 | 1.09 | -10.77 | 217.81 | -12.49 | 139.23 | 0.3267 | -771.0 | -653.8 | |
| 0.00 | 1.09 | 0.00 | 0.56 | -5.79 | 217.94 | -12.35 | 127.14 | 0.2682 | -811.0 | -634.4 | |
| 0.00 | 2.72 | 0.00 | 1.43 | -11.09 | 217.70 | -12.60 | 139.62 | 0.3318 | -762.0 | -605.8 | |
| 2.00 | -6.00 | 1.03 | -6.00 | -7.68 | 217.80 | -12.50 | 132.08 | 0.2902 | -853.9 | 999999 | |
| 0.00 | 0.54 | 0.00 | 0.29 | -10.59 | 217.59 | -12.70 | 138.36 | 0.3267 | -517.0 | -548.0 | |
| 1.54 | -6.00 | 0.80 | -6.00 | -7.62 | 217.67 | -12.62 | 131.64 | 0.2911 | -1050.9 | 999999 | |
| 0.00 | 1.72 | 0.00 | 0.90 | -9.52 | 217.57 | -12.72 | 136.02 | 0.3141 | -873.0 | -749.9 | |
| 0.00 | 1.27 | 0.00 | 0.65 | -5.85 | 217.69 | -12.60 | 126.78 | 0.2722 | -1027.0 | -815.5 | |
| 3.00 | -6.00 | 1.55 | -6.00 | -7.74 | 217.60 | -12.69 | 131.82 | 0.2933 | -939.4 | 999999 | |
| 0.00 | 5.27 | 0.00 | 2.75 | -10.21 | 217.51 | -12.78 | 137.40 | 0.3230 | -1079.0 | -821.6 | |
| 0.00 | 1.45 | 0.00 | 0.76 | -11.12 | 217.41 | -12.89 | 139.05 | 0.3353 | -522.0 | -452.6 | |
| 4.45 | -6.00 | 2.30 | -6.00 | -6.78 | 217.54 | -12.76 | 129.11 | 0.2838 | 202.7 | 999999 | |
| 0.00 | 1.36 | 0.00 | 0.71 | -9.24 | 217.46 | -12.84 | 135.12 | 0.3122 | -782.0 | -504.6 | |
| 2.91 | -6.00 | 1.50 | -6.00 | -6.41 | 217.52 | -12.78 | 128.03 | 0.2802 | -704.8 | 999999 | |
| 0.00 | 1.82 | 0.00 | 0.95 | -10.87 | 217.36 | -12.94 | 138.43 | 0.3328 | -869.0 | -716.0 | |
| 0.00 | 2.27 | 0.00 | 1.19 | -10.53 | 217.31 | -12.99 | 137.61 | 0.3291 | -782.0 | -708.7 | |
| 0.91 | -6.00 | 0.47 | -6.00 | -7.44 | 217.39 | -12.90 | 130.55 | 0.2926 | -740.6 | 999999 | |
| 0.00 | 2.18 | 0.00 | 1.14 | -9.84 | 217.18 | -13.12 | 135.86 | 0.3224 | -1012.0 | -778.6 | |
| 0.00 | 3.00 | 0.00 | 1.56 | -9.49 | 217.19 | -13.10 | 135.12 | 0.3182 | -905.0 | -827.2 | |
| 2.09 | -6.00 | 1.08 | -6.00 | -7.53 | 217.11 | -13.19 | 130.18 | 0.2973 | -1000.2 | 999999 | |
| 0.00 | 2.63 | 0.00 | 1.38 | -10.03 | 217.01 | -13.28 | 135.91 | 0.3266 | -748.0 | -688.2 | |
| 1.36 | -6.00 | 0.71 | -6.00 | -7.38 | 217.05 | -13.25 | 129.65 | 0.2964 | -1184.9 | 999999 | |
| 0.00 | 1.72 | 0.00 | 0.90 | -9.69 | 216.87 | -13.43 | 134.85 | 0.3242 | -1035.0 | -915.6 | |
| 0.00 | 1.54 | 0.00 | 0.80 | -8.66 | 216.88 | -13.42 | 132.49 | 0.3124 | -800.0 | -624.2 | |
| 0.00 | 0.82 | 0.00 | 0.42 | -6.48 | 216.89 | -13.41 | 126.89 | 0.2893 | -816.0 | -707.6 | |
| 0.00 | 4.36 | 0.00 | 2.29 | -10.03 | 216.69 | -13.60 | 135.24 | 0.3303 | -482.0 | -699.5 | |
| 0.00 | 1.63 | 0.00 | 0.86 | -9.69 | 216.61 | -13.68 | 134.32 | 0.3273 | -893.0 | -755.6 | |
| 4.36 | 28.32 | 2.27 | 14.76 | -8.04 | 216.58 | -13.71 | 130.36 | 0.3094 | -1239.8 | -771.1 | |
| 2.18 | -62.00 | 1.14 | -62.00 | -8.35 | 216.54 | -13.75 | 131.04 | 0.3133 | -1030.1 | 999999 | |
| 0.00 | 5.17 | 0.00 | 2.69 | -7.26 | 216.58 | -13.72 | 128.37 | 0.3013 | -1149.0 | -905.2 | |
| 0.00 | 2.27 | 0.00 | 1.18 | -6.39 | 216.60 | -13.69 | 126.07 | 0.2922 | -868.0 | -826.2 | |
| 0.00 | 2.54 | 0.00 | 1.32 | -6.64 | 216.60 | -13.70 | 126.74 | 0.2948 | -926.0 | -734.0 | |
| 2.63 | -62.00 | 1.37 | -62.00 | -8.07 | 216.33 | -13.97 | 129.93 | 0.3130 | -1026.0 | 999999 | |
| 0.00 | 0.64 | 0.00 | 0.33 | -6.67 | 216.38 | -13.92 | 126.39 | 0.2981 | -926.0 | -884.7 | |
| 0.00 | 1.18 | 0.00 | 0.61 | -5.93 | 216.21 | -14.09 | 124.00 | 0.2933 | -918.0 | -731.1 | |
| 1.00 | 6.90 | 0.52 | 3.62 | -9.45 | 216.02 | -14.28 | 132.57 | 0.3317 | -1195.0 | -860.1 | |
| 1.09 | 3.00 | 0.57 | 1.56 | -6.59 | 216.12 | -14.17 | 125.66 | 0.3006 | -1115.2 | -906.4 | |
| 0.00 | 1.00 | 0.00 | 0.53 | -9.82 | 216.00 | -14.29 | 133.37 | 0.3361 | -596.0 | -456.5 | |
| 0.00 | 3.18 | 0.00 | 1.67 | -9.67 | 215.98 | -14.32 | 132.98 | 0.3346 | -768.0 | -683.4 | |
| 0.00 | 2.00 | 0.00 | 1.04 | -8.39 | 216.00 | -14.30 | 130.05 | 0.3205 | -921.0 | -740.3 | |
| 0.00 | 0.73 | 0.00 | 0.38 | -5.79 | 215.83 | -14.46 | 122.89 | 0.2972 | -932.0 | -739.9 | |
| 0.00 | 3.45 | 0.00 | 1.82 | -9.80 | 215.49 | -14.80 | 132.32 | 0.3420 | -733.0 | -512.3 | |
| 0.00 | 1.18 | 0.00 | 0.62 | -8.52 | 215.55 | -14.75 | 129.49 | 0.3276 | -557.0 | -548.1 | |
| 0.00 | 1.09 | 0.00 | 0.57 | -9.71 | 215.30 | -14.99 | 131.76 | 0.3433 | -866.0 | -721.6 | |
| 0.00 | 1.54 | 0.00 | 0.81 | -9.12 | 215.27 | -15.03 | 130.36 | 0.3374 | -859.0 | -742.6 | |
| 0.00 | 3.72 | 0.00 | 1.94 | -5.85 | 215.35 | -14.94 | 122.23 | 0.3045 | -1086.0 | -871.9 | |
| 0.00 | 2.81 | 0.00 | 1.47 | -7.19 | 215.31 | -14.98 | 125.74 | 0.3174 | -1046.0 | -877.4 | |
| 0.00 | 1.09 | 0.00 | 0.57 | -9.02 | 215.08 | -15.21 | 129.80 | 0.3388 | -825.0 | -697.8 | |
| 0.00 | 1.09 | 0.00 | 0.57 | -7.03 | 215.13 | -15.17 | 125.01 | 0.3184 | -986.0 | -841.8 | |
| 0.00 | 4.81 | 0.00 | 2.52 | -7.97 | 215.00 | -15.30 | 127.14 | 0.3292 | -1164.0 | -951.7 | |
| 0.00 | 4.45 | 0.00 | 2.33 | -7.56 | 214.98 | -15.31 | 126.11 | 0.3255 | -1069.0 | -864.8 | |
| 0.00 | 2.81 | 0.00 | 1.48 | -8.25 | 214.89 | -15.40 | 127.63 | 0.3334 | -688.0 | -674.3 | |
| 1.63 | 104.49 | 0.85 | 54.66 | -6.32 | 214.93 | -15.37 | 122.79 | 0.3147 | -1206.4 | -528.7 | |
| 1.72 | -87.00 | 0.90 | -87.00 | -6.57 | 214.82 | -15.47 | 123.28 | 0.3183 | -1198.9 | 999999 | |
| 0.00 | 1.09 | 0.00 | 0.57 | -8.38 | 214.53 | -15.76 | 127.31 | 0.3393 | -690.0 | -567.3 | |
| 0.27 | -87.00 | 0.14 | -87.00 | -6.73 | 214.53 | -15.76 | 123.21 | 0.3238 | -844.3 | 999999 | |
| 18.70 | -87.00 | 9.78 | -87.00 | -6.46 | 214.48 | -15.82 | 122.39 | 0.3221 | -1281.7 | 999999 | |
| 0.00 | 1.00 | 0.00 | 0.53 | -8.10 | 214.38 | -15.91 | 126.39 | 0.3386 | -784.0 | -646.6 | |
| 0.00 | 2.00 | 0.00 | 1.04 | -4.79 | 214.43 | -15.86 | 117.71 | 0.3090 | -1002.0 | -779.9 | |
| 0.00 | 1.18 | 0.00 | 0.61 | -4.61 | 214.28 | -16.02 | 116.96 | 0.3099 | -896.0 | -834.5 | |
| 0.00 | 0.82 | 0.00 | 0.43 | -10.23 | 213.93 | -16.37 | 130.42 | 0.3658 | -616.0 | -519.9 | |
| 0.00 | 2.18 | 0.00 | 1.15 | -7.67 | 214.02 | -16.28 | 124.73 | 0.3394 | -1011.0 | -804.0 | |
| 0.00 | 1.27 | 0.00 | 0.67 | -7.99 | 213.88 | -16.42 | 125.25 | 0.3442 | -808.0 | -695.6 | |
| 0.00 | 1.27 | 0.00 | 0.67 | -7.40 | 213.87 | -16.43 | 123.80 | 0.3389 | -746.0 | -628.8 | |
| 0.00 | 1.18 | 0.00 | 0.62 | -8.24 | 213.77 | -16.53 | 125.68 | 0.3480 | -750.0 | -621.6 | |
| 0.00 | 1.18 | 0.00 | 0.63 | -10.02 | 213.49 | -16.81 | 129.22 | 0.3691 | -906.0 | -770.3 | |
| 0.00 | 1.63 | 0.00 | 0.87 | -10.78 | 213.41 | -16.88 | 130.68 | 0.3778 | -628.0 | -492.6 | |
| 0.00 | 0.64 | 0.00 | 0.34 | -10.22 | 213.09 | -17.21 | 128.98 | 0.3761 | -734.0 | -689.7 | |
| 0.64 | 3.27 | 0.34 | 1.75 | -10.16 | 212.86 | -17.43 | 128.50 | 0.3784 | -979.1 | -770.7 | |
| 0.00 | 0.91 | 0.00 | 0.48 | -5.40 | 213.07 | -17.22 | 117.46 | 0.3336 | -755.0 | -580.9 | |
| 0.00 | 1.36 | 0.00 | 0.73 | -10.25 | 212.73 | -17.57 | 128.49 | 0.3810 | -589.0 | -606.8 | |
| 0.00 | 1.54 | 0.00 | 0.82 | -8.07 | 212.32 | -17.97 | 123.07 | 0.3660 | -807.0 | -664.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
