SDO HMI 2014-07-07 20:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 20.79 | 82.89 | 24.77 | 100.51 | 8.93 | 164.30 | -66.00 | 81.80 | 0.9132 | -506.7 | -52.0 | |
|
previous
or next observation for the same group /

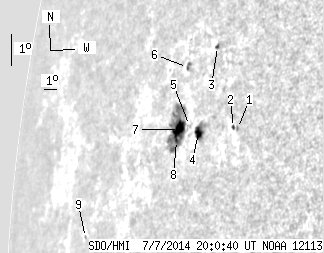

back to the solar disc SDO HMI 2014-07-07 20:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.27 | 0.00 | 1.34 | 9.10 | 168.12 | -62.17 | 81.59 | 0.8846 | -395.0 | -406.5 | |
| 0.64 | 1.45 | 0.68 | 1.55 | 9.12 | 167.85 | -62.45 | 81.57 | 0.8868 | -218.3 | -193.4 | |
| 0.82 | 2.27 | 0.93 | 2.59 | 11.51 | 165.85 | -64.44 | 78.94 | 0.9025 | -348.9 | -231.7 | |
| 6.45 | 12.89 | 7.43 | 14.84 | 8.83 | 165.48 | -64.81 | 81.91 | 0.9049 | -659.4 | -397.3 | |
| 0.00 | 1.82 | 0.00 | 2.15 | 9.01 | 164.75 | -65.54 | 81.72 | 0.9102 | -540.0 | -464.5 | |
| 0.54 | 3.72 | 0.67 | 4.54 | 10.75 | 163.92 | -66.38 | 79.82 | 0.9162 | 392.8 | 392.4 | |
| 12.07 | 58.47 | 14.73 | 71.78 | 8.85 | 164.05 | -66.25 | 81.90 | 0.9152 | -538.6 | -11.4 | |
| 0.27 | -7.00 | 0.33 | -7.00 | 8.50 | 163.93 | -66.36 | 82.28 | 0.9160 | -547.0 | 999999 | |
| 0.00 | 1.00 | 0.00 | 1.72 | 5.10 | 156.78 | -73.52 | 85.74 | 0.9590 | 127.0 | 133.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
