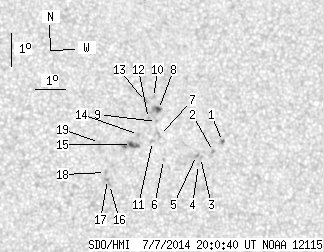

SDO HMI 2014-07-07 20:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.90 | 38.85 | 1.55 | 20.75 | 7.39 | 251.97 | 21.68 | 280.95 | 0.3749 | 352.3 | 414.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-07 20:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.82 | 0.00 | 0.99 | 7.24 | 254.28 | 23.98 | 279.75 | 0.4109 | -990.0 | -867.5 | |
| 0.00 | 1.45 | 0.00 | 0.79 | 6.94 | 253.96 | 23.67 | 279.13 | 0.4053 | -886.0 | -756.0 | |
| 0.00 | 1.72 | 0.00 | 0.93 | 6.77 | 253.51 | 23.22 | 278.83 | 0.3979 | -597.0 | -570.6 | |
| 0.00 | 0.91 | 0.00 | 0.49 | 6.56 | 253.44 | 23.14 | 278.32 | 0.3963 | -795.0 | -633.7 | |
| 0.00 | 1.82 | 0.00 | 0.98 | 6.84 | 253.38 | 23.09 | 279.03 | 0.3960 | -688.0 | -619.6 | |
| 0.00 | 1.18 | 0.00 | 0.63 | 6.74 | 252.28 | 21.99 | 279.13 | 0.3782 | 233.0 | 274.2 | |
| 0.00 | 1.72 | 0.00 | 0.92 | 7.48 | 252.19 | 21.89 | 281.10 | 0.3784 | 492.0 | 443.3 | |
| 1.45 | 5.36 | 0.78 | 2.87 | 8.27 | 252.20 | 21.91 | 283.17 | 0.3808 | 928.1 | 816.1 | |
| 0.00 | 1.09 | 0.00 | 0.58 | 7.91 | 252.11 | 21.82 | 282.26 | 0.3783 | 640.0 | 522.5 | |
| 0.00 | 1.63 | 0.00 | 0.87 | 8.64 | 252.06 | 21.76 | 284.20 | 0.3797 | 693.0 | 599.7 | |
| 0.00 | 1.18 | 0.00 | 0.63 | 7.30 | 251.95 | 21.65 | 280.73 | 0.3741 | 718.0 | 550.8 | |
| 0.00 | 1.36 | 0.00 | 0.73 | 8.01 | 251.85 | 21.56 | 282.64 | 0.3745 | 843.0 | 702.9 | |
| 0.00 | 2.18 | 0.00 | 1.16 | 8.53 | 251.78 | 21.49 | 284.05 | 0.3751 | 1014.0 | 901.0 | |
| 0.00 | 1.45 | 0.00 | 0.77 | 7.52 | 251.50 | 21.20 | 281.52 | 0.3675 | 821.0 | 591.1 | |
| 1.45 | 8.62 | 0.77 | 4.58 | 7.23 | 251.25 | 20.96 | 280.81 | 0.3628 | 1114.1 | 876.8 | |
| 0.00 | 1.00 | 0.00 | 0.53 | 6.02 | 250.47 | 20.18 | 277.72 | 0.3477 | 830.0 | 686.5 | |
| 0.00 | 1.36 | 0.00 | 0.72 | 6.18 | 250.42 | 20.12 | 278.18 | 0.3470 | 867.0 | 737.3 | |
| 0.00 | 2.00 | 0.00 | 1.05 | 6.39 | 250.36 | 20.07 | 278.82 | 0.3465 | 878.0 | 700.2 | |
| 0.00 | 1.00 | 0.00 | 0.53 | 7.31 | 250.20 | 19.91 | 281.52 | 0.3462 | 881.0 | 754.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
