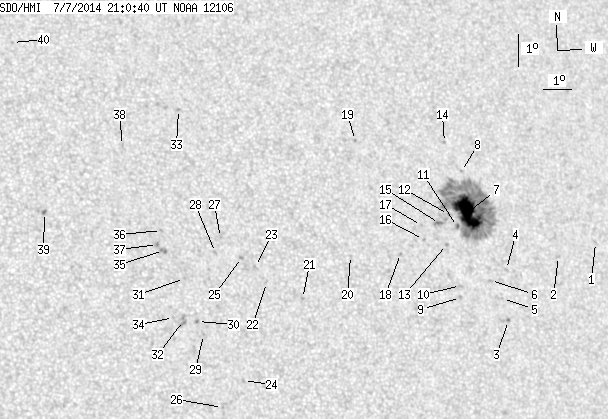

SDO HMI 2014-07-07 21:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 44.67 | 273.35 | 26.56 | 160.92 | 14.87 | 260.58 | 30.85 | 292.57 | 0.5378 | -399.1 | -222.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-07 21:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.63 | 0.00 | 1.02 | 14.01 | 266.43 | 36.70 | 288.42 | 0.6133 | -488.0 | -411.8 | |
| 0.00 | 1.63 | 0.00 | 1.00 | 13.64 | 264.93 | 35.19 | 288.34 | 0.5922 | -470.0 | -292.9 | |
| 0.00 | 1.36 | 0.00 | 0.81 | 11.73 | 262.74 | 33.00 | 285.87 | 0.5566 | -852.0 | -765.5 | |
| 0.00 | 1.72 | 0.00 | 1.03 | 13.30 | 262.90 | 33.16 | 288.57 | 0.5637 | -659.0 | -551.2 | |
| 0.00 | 0.73 | 0.00 | 0.43 | 12.41 | 262.62 | 32.88 | 287.13 | 0.5569 | -579.0 | -519.5 | |
| 0.00 | 1.72 | 0.00 | 1.02 | 12.98 | 262.25 | 32.52 | 288.27 | 0.5537 | -721.0 | -630.9 | |
| 44.03 | 213.89 | 26.18 | 127.37 | 15.12 | 261.74 | 32.00 | 292.23 | 0.5548 | -1177.3 | -340.1 | |
| 0.00 | 0.82 | 0.00 | 0.49 | 16.40 | 261.74 | 32.00 | 294.43 | 0.5606 | -397.0 | -421.8 | |
| 0.00 | 1.91 | 0.00 | 1.12 | 12.50 | 261.08 | 31.34 | 287.89 | 0.5356 | -769.0 | -660.9 | |
| 0.00 | 1.91 | 0.00 | 1.12 | 12.87 | 261.13 | 31.39 | 288.54 | 0.5377 | -778.0 | -571.2 | |
| 0.64 | 1.63 | 0.38 | 0.97 | 14.69 | 261.30 | 31.56 | 291.72 | 0.5470 | -954.1 | -848.4 | |
| 0.00 | 1.09 | 0.00 | 0.64 | 15.08 | 261.03 | 31.29 | 292.54 | 0.5450 | -806.0 | -686.2 | |
| 0.00 | 1.27 | 0.00 | 0.75 | 14.15 | 260.80 | 31.07 | 291.00 | 0.5381 | -826.0 | -692.1 | |
| 0.00 | 1.00 | 0.00 | 0.60 | 17.32 | 261.28 | 31.54 | 296.26 | 0.5590 | 678.0 | 488.5 | |
| 0.00 | 3.27 | 0.00 | 1.92 | 14.81 | 260.65 | 30.91 | 292.26 | 0.5387 | -904.0 | -793.6 | |
| 0.00 | 1.18 | 0.00 | 0.69 | 14.33 | 259.99 | 30.25 | 291.75 | 0.5276 | -727.0 | -561.6 | |
| 0.00 | 0.91 | 0.00 | 0.53 | 14.77 | 259.98 | 30.25 | 292.55 | 0.5294 | -678.0 | -553.8 | |
| 0.00 | 0.54 | 0.00 | 0.31 | 13.92 | 259.10 | 29.36 | 291.49 | 0.5134 | -698.0 | -671.2 | |
| 0.00 | 0.91 | 0.00 | 0.52 | 17.49 | 258.03 | 28.29 | 298.70 | 0.5173 | 681.0 | 616.1 | |
| 0.00 | 1.09 | 0.00 | 0.62 | 13.92 | 257.31 | 27.57 | 292.52 | 0.4883 | -639.0 | -448.1 | |
| 0.00 | 0.91 | 0.00 | 0.50 | 12.64 | 255.47 | 25.73 | 291.10 | 0.4559 | 743.0 | 639.2 | |
| 0.00 | 1.18 | 0.00 | 0.65 | 13.16 | 254.28 | 24.54 | 293.03 | 0.4413 | 832.0 | 655.7 | |
| 0.00 | 0.64 | 0.00 | 0.35 | 13.67 | 253.96 | 24.22 | 294.36 | 0.4394 | 740.0 | 624.4 | |
| 0.00 | 1.72 | 0.00 | 0.94 | 10.17 | 253.22 | 23.48 | 286.99 | 0.4118 | 758.0 | 549.5 | |
| 0.00 | 1.63 | 0.00 | 0.90 | 13.96 | 253.51 | 23.77 | 295.34 | 0.4347 | 885.0 | 779.8 | |
| 0.00 | 0.91 | 0.00 | 0.49 | 9.36 | 252.45 | 22.71 | 285.48 | 0.3970 | 745.0 | 651.4 | |
| 0.00 | 1.09 | 0.00 | 0.60 | 14.60 | 252.86 | 23.12 | 297.27 | 0.4293 | 495.0 | 377.1 | |
| 0.00 | 1.82 | 0.00 | 0.99 | 14.13 | 252.64 | 22.90 | 296.48 | 0.4233 | 699.0 | 610.5 | |
| 0.00 | 0.82 | 0.00 | 0.44 | 11.62 | 251.99 | 22.25 | 291.26 | 0.3997 | 663.0 | 594.9 | |
| 0.00 | 1.63 | 0.00 | 0.88 | 12.02 | 251.82 | 22.08 | 292.36 | 0.3993 | 847.0 | 690.4 | |
| 0.00 | 1.18 | 0.00 | 0.64 | 13.36 | 251.51 | 21.77 | 295.76 | 0.4024 | 863.0 | 607.3 | |
| 0.00 | 6.26 | 0.00 | 3.37 | 12.06 | 251.36 | 21.62 | 292.85 | 0.3926 | 713.0 | 734.8 | |
| 0.00 | 1.72 | 0.00 | 0.95 | 18.63 | 251.92 | 22.18 | 306.43 | 0.4465 | 838.0 | 617.1 | |
| 0.00 | 0.82 | 0.00 | 0.44 | 12.16 | 251.03 | 21.29 | 293.37 | 0.3883 | 781.0 | 596.0 | |
| 0.00 | 3.54 | 0.00 | 1.91 | 14.24 | 250.89 | 21.15 | 298.40 | 0.3992 | 930.0 | 853.2 | |
| 0.00 | 1.36 | 0.00 | 0.74 | 14.86 | 250.88 | 21.14 | 299.80 | 0.4035 | 658.0 | 538.9 | |
| 0.00 | 2.09 | 0.00 | 1.13 | 14.43 | 250.70 | 20.96 | 299.02 | 0.3979 | 1035.0 | 894.8 | |
| 0.00 | 0.91 | 0.00 | 0.49 | 17.54 | 249.86 | 20.12 | 306.75 | 0.4110 | 696.0 | 601.4 | |
| 0.00 | 1.91 | 0.00 | 1.01 | 15.50 | 247.03 | 17.29 | 306.16 | 0.3563 | 959.0 | 838.4 | |
| 0.00 | 1.00 | 0.00 | 0.54 | 20.87 | 246.50 | 16.77 | 318.04 | 0.4048 | 722.0 | 552.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
