SDO HMI 2014-07-07 21:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 6.35 | 50.02 | 3.36 | 26.74 | -16.86 | 232.54 | 2.80 | 189.39 | 0.3715 | -56.1 | -93.9 | |
|
previous
or next observation for the same group /

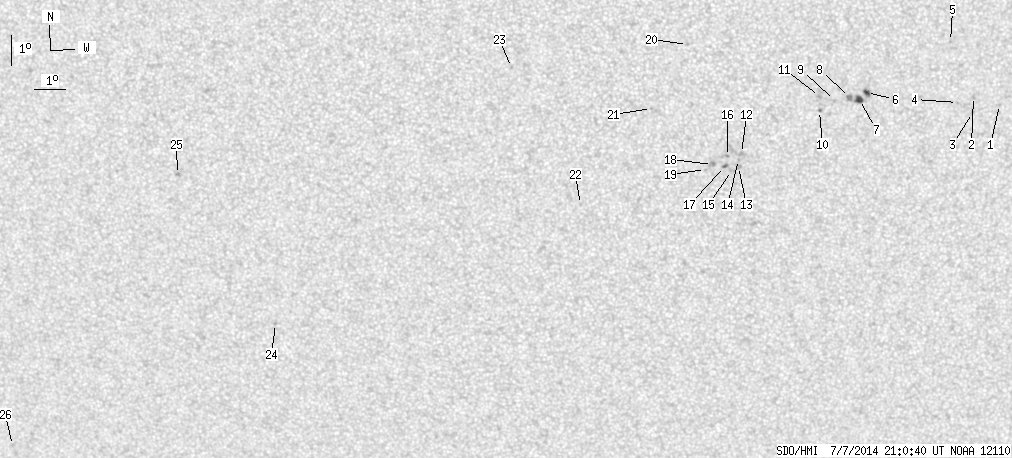

back to the solar disc SDO HMI 2014-07-07 21:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.09 | 0.00 | 0.58 | -15.65 | 241.28 | 11.54 | 210.42 | 0.3822 | 682.0 | 563.0 | |
| 0.00 | 2.00 | 0.00 | 1.07 | -15.38 | 240.43 | 10.69 | 208.91 | 0.3716 | 847.0 | 683.0 | |
| 0.00 | 1.45 | 0.00 | 0.78 | -15.90 | 240.42 | 10.69 | 208.21 | 0.3789 | 768.0 | 652.3 | |
| 0.00 | 0.82 | 0.00 | 0.44 | -15.57 | 239.93 | 10.19 | 207.51 | 0.3704 | 781.0 | 670.2 | |
| 0.00 | 1.00 | 0.00 | 0.53 | -13.61 | 239.61 | 9.87 | 209.49 | 0.3400 | 709.0 | 501.5 | |
| 2.09 | 3.45 | 1.10 | 1.82 | -15.22 | 237.00 | 7.26 | 200.76 | 0.3455 | 1021.0 | 817.9 | |
| 3.72 | 5.81 | 1.97 | 3.07 | -15.44 | 236.79 | 7.05 | 199.97 | 0.3477 | 964.8 | 625.5 | |
| 0.00 | 4.18 | 0.00 | 2.20 | -15.37 | 236.46 | 6.73 | 199.20 | 0.3449 | 984.0 | 849.5 | |
| 0.00 | 1.09 | 0.00 | 0.57 | -15.47 | 235.99 | 6.25 | 197.85 | 0.3439 | 743.0 | 572.6 | |
| 0.00 | 1.27 | 0.00 | 0.67 | -15.78 | 235.52 | 5.78 | 196.32 | 0.3467 | 887.0 | 759.3 | |
| 0.00 | 1.72 | 0.00 | 0.91 | -15.33 | 235.51 | 5.77 | 196.67 | 0.3395 | 934.0 | 672.6 | |
| 0.00 | 2.81 | 0.00 | 1.49 | -17.16 | 233.07 | 3.33 | 188.90 | 0.3599 | -970.0 | -736.3 | |
| 0.00 | 2.81 | 0.00 | 1.50 | -17.59 | 232.98 | 3.24 | 188.49 | 0.3666 | -786.0 | -672.6 | |
| 0.00 | 1.09 | 0.00 | 0.58 | -17.36 | 232.97 | 3.24 | 188.57 | 0.3629 | -801.0 | -630.5 | |
| 0.00 | 2.00 | 0.00 | 1.06 | -17.72 | 232.76 | 3.02 | 187.86 | 0.3681 | -495.0 | -444.5 | |
| 0.00 | 1.36 | 0.00 | 0.72 | -17.26 | 232.62 | 2.88 | 187.69 | 0.3604 | -942.0 | -862.1 | |
| 0.54 | 2.18 | 0.29 | 1.16 | -17.59 | 232.53 | 2.79 | 187.33 | 0.3655 | -938.7 | -761.1 | |
| 0.00 | 3.72 | 0.00 | 1.98 | -17.52 | 232.14 | 2.41 | 186.35 | 0.3637 | -866.0 | -785.6 | |
| 0.00 | 0.91 | 0.00 | 0.48 | -17.68 | 231.92 | 2.18 | 185.72 | 0.3659 | -662.0 | -586.3 | |
| 0.00 | 1.27 | 0.00 | 0.66 | -13.64 | 231.32 | 1.58 | 185.18 | 0.2986 | -844.0 | -576.4 | |
| 0.00 | 0.91 | 0.00 | 0.48 | -15.69 | 230.19 | 0.45 | 181.32 | 0.3316 | -769.0 | -613.4 | |
| 0.00 | 1.18 | 0.00 | 0.63 | -18.82 | 227.91 | -1.83 | 175.47 | 0.3839 | -761.0 | -593.0 | |
| 0.00 | 1.00 | 0.00 | 0.52 | -14.38 | 225.79 | -3.95 | 167.77 | 0.3167 | -814.0 | -674.0 | |
| 0.00 | 1.18 | 0.00 | 0.67 | -22.88 | 217.68 | -12.06 | 156.57 | 0.4862 | -779.0 | -627.1 | |
| 0.00 | 2.09 | 0.00 | 1.15 | -17.95 | 214.85 | -14.89 | 146.18 | 0.4411 | -892.0 | -704.0 | |
| 0.00 | 1.63 | 0.00 | 1.02 | -27.30 | 207.76 | -21.98 | 146.85 | 0.6104 | -303.0 | -212.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
