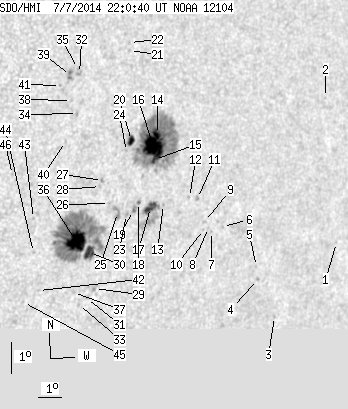

SDO HMI 2014-07-07 22:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 93.78 | 474.16 | 62.46 | 315.61 | -11.88 | 268.31 | 39.12 | 247.70 | 0.6699 | 225.6 | -19.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-07 22:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.73 | 0.00 | 0.58 | -13.91 | 278.13 | 48.94 | 249.08 | 0.7859 | 333.0 | 341.6 | |
| 0.00 | 0.64 | 0.00 | 0.48 | -9.27 | 276.55 | 47.37 | 254.41 | 0.7561 | 194.0 | 209.9 | |
| 0.00 | 1.09 | 0.00 | 0.84 | -16.17 | 275.87 | 46.69 | 245.46 | 0.7705 | 298.0 | 349.2 | |
| 0.00 | 1.18 | 0.00 | 0.89 | -14.93 | 274.73 | 45.55 | 246.54 | 0.7542 | 443.0 | 388.2 | |
| 0.00 | 0.54 | 0.00 | 0.41 | -14.50 | 274.57 | 45.39 | 247.01 | 0.7510 | 358.0 | 430.2 | |
| 0.00 | 1.09 | 0.00 | 0.78 | -13.14 | 272.74 | 43.56 | 248.00 | 0.7260 | 231.0 | 316.8 | |
| 0.00 | 0.73 | 0.00 | 0.52 | -13.28 | 272.30 | 43.12 | 247.63 | 0.7216 | 626.0 | 655.0 | |
| 0.00 | 1.18 | 0.00 | 0.84 | -13.15 | 272.14 | 42.96 | 247.74 | 0.7193 | 486.0 | 495.6 | |
| 0.00 | 1.54 | 0.00 | 1.09 | -12.95 | 271.93 | 42.74 | 247.91 | 0.7161 | 462.0 | 518.2 | |
| 0.00 | 0.64 | 0.00 | 0.45 | -13.20 | 271.94 | 42.75 | 247.58 | 0.7172 | 449.0 | 470.1 | |
| 0.00 | 2.00 | 0.00 | 1.40 | -12.20 | 271.48 | 42.29 | 248.72 | 0.7081 | 556.0 | 452.0 | |
| 0.00 | 1.00 | 0.00 | 0.69 | -12.15 | 271.13 | 41.95 | 248.63 | 0.7040 | 591.0 | 486.2 | |
| 0.00 | 0.82 | 0.00 | 0.56 | -12.33 | 270.08 | 40.89 | 247.93 | 0.6924 | 444.0 | 393.4 | |
| 6.99 | 204.64 | 4.69 | 137.40 | -10.10 | 269.45 | 40.27 | 250.77 | 0.6763 | 1033.6 | 257.1 | |
| 3.72 | -14.00 | 2.51 | -14.00 | -10.88 | 269.45 | 40.27 | 249.66 | 0.6793 | 704.3 | 999999 | |
| 31.78 | -14.00 | 21.31 | -14.00 | -10.47 | 269.35 | 40.16 | 250.19 | 0.6764 | 1084.7 | 999999 | |
| 7.90 | 29.51 | 5.37 | 20.08 | -12.40 | 269.56 | 40.37 | 247.59 | 0.6866 | 789.2 | 118.6 | |
| 0.54 | 1.45 | 0.37 | 0.98 | -12.22 | 269.03 | 39.85 | 247.59 | 0.6797 | 757.8 | 614.3 | |
| 0.45 | 2.81 | 0.31 | 1.89 | -12.47 | 268.87 | 39.69 | 247.17 | 0.6788 | 682.0 | 619.7 | |
| 4.54 | -14.00 | 3.00 | -14.00 | -10.25 | 268.43 | 39.24 | 250.11 | 0.6643 | 921.1 | 999999 | |
| 0.00 | 0.91 | 0.00 | 0.59 | -7.42 | 267.99 | 38.81 | 254.08 | 0.6485 | 602.0 | 511.4 | |
| 0.00 | 1.09 | 0.00 | 0.71 | -7.17 | 267.97 | 38.78 | 254.44 | 0.6474 | 568.0 | 451.0 | |
| 0.00 | 2.00 | 0.00 | 1.34 | -12.58 | 268.61 | 39.43 | 246.88 | 0.6762 | 519.0 | 450.5 | |
| 0.00 | 1.00 | 0.00 | 0.66 | -10.58 | 268.28 | 39.09 | 249.56 | 0.6638 | 665.0 | 613.8 | |
| 0.00 | 6.54 | 0.00 | 4.36 | -12.50 | 268.23 | 39.05 | 246.81 | 0.6714 | 354.0 | 316.4 | |
| 0.00 | 1.09 | 0.00 | 0.72 | -12.20 | 267.86 | 38.67 | 247.04 | 0.6656 | 615.0 | 443.7 | |
| 0.00 | 1.73 | 0.00 | 1.13 | -11.46 | 267.45 | 38.27 | 247.90 | 0.6574 | 702.0 | 508.4 | |
| 0.00 | 1.09 | 0.00 | 0.71 | -11.65 | 267.41 | 38.22 | 247.61 | 0.6576 | 626.0 | 418.8 | |
| 0.00 | 2.18 | 0.00 | 1.46 | -14.90 | 267.77 | 38.59 | 243.24 | 0.6773 | -683.0 | -538.0 | |
| 8.90 | 184.67 | 5.90 | 121.10 | -13.74 | 267.34 | 38.15 | 244.61 | 0.6665 | -743.3 | -479.9 | |
| 0.00 | 1.00 | 0.00 | 0.67 | -15.21 | 267.52 | 38.33 | 242.67 | 0.6759 | -652.0 | -516.9 | |
| 0.00 | 2.18 | 0.00 | 1.38 | -8.06 | 266.11 | 36.92 | 252.33 | 0.6265 | 731.0 | 656.7 | |
| 0.00 | 0.73 | 0.00 | 0.49 | -15.40 | 267.23 | 38.05 | 242.26 | 0.6736 | -656.0 | -576.4 | |
| 0.00 | 1.18 | 0.00 | 0.75 | -9.31 | 266.17 | 36.99 | 250.45 | 0.6322 | 758.0 | 613.6 | |
| 0.00 | 0.64 | 0.00 | 0.40 | -7.90 | 266.01 | 36.83 | 252.53 | 0.6246 | 538.0 | 582.1 | |
| 28.96 | -30.00 | 19.00 | -30.00 | -13.36 | 266.75 | 37.56 | 244.82 | 0.6577 | -1118.3 | 999999 | |
| 0.00 | 1.73 | 0.00 | 1.15 | -15.00 | 266.95 | 37.76 | 242.64 | 0.6683 | -189.0 | -309.3 | |
| 0.00 | 1.09 | 0.00 | 0.69 | -8.89 | 265.89 | 36.70 | 250.95 | 0.6269 | 714.0 | 544.8 | |
| 0.00 | 5.72 | 0.00 | 3.61 | -8.11 | 265.76 | 36.58 | 252.10 | 0.6222 | 838.0 | 802.3 | |
| 0.00 | 1.27 | 0.00 | 0.81 | -10.17 | 265.82 | 36.63 | 248.98 | 0.6314 | 555.0 | 500.6 | |
| 0.00 | 0.82 | 0.00 | 0.51 | -8.41 | 265.41 | 36.23 | 251.48 | 0.6188 | 817.0 | 692.3 | |
| 0.00 | 0.82 | 0.00 | 0.53 | -14.88 | 265.54 | 36.35 | 241.97 | 0.6512 | -337.0 | -232.3 | |
| 0.00 | 0.73 | 0.00 | 0.46 | -12.56 | 264.93 | 35.75 | 244.94 | 0.6317 | -675.0 | -558.9 | |
| 0.00 | 0.91 | 0.00 | 0.58 | -13.65 | 265.11 | 35.93 | 243.47 | 0.6396 | -742.0 | -645.7 | |
| 0.00 | 0.54 | 0.00 | 0.35 | -15.24 | 265.02 | 35.84 | 241.14 | 0.6472 | -691.0 | -578.5 | |
| 0.00 | 0.91 | 0.00 | 0.57 | -11.13 | 263.92 | 34.73 | 246.49 | 0.6118 | -584.0 | -413.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
