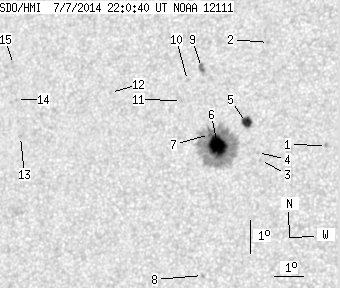

SDO HMI 2014-07-07 22:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 34.86 | 166.77 | 19.05 | 91.40 | 6.63 | 204.00 | -25.18 | 82.05 | 0.4286 | -843.9 | -383.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-07 22:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.36 | 0.00 | 0.73 | 6.52 | 207.85 | -21.34 | 81.29 | 0.3673 | -802.0 | -768.5 | |
| 0.00 | 1.54 | 0.00 | 0.84 | 9.62 | 205.74 | -23.45 | 74.31 | 0.4092 | -668.0 | -551.7 | |
| 0.00 | 1.00 | 0.00 | 0.54 | 6.01 | 205.68 | -23.50 | 83.18 | 0.4011 | -827.0 | -683.2 | |
| 0.00 | 1.09 | 0.00 | 0.59 | 6.25 | 205.57 | -23.62 | 82.60 | 0.4033 | -849.0 | -594.4 | |
| 7.08 | 9.35 | 3.85 | 5.08 | 7.16 | 205.15 | -24.03 | 80.49 | 0.4114 | -1054.2 | -685.6 | |
| 25.88 | 136.82 | 14.15 | 74.82 | 6.43 | 204.21 | -24.97 | 82.47 | 0.4249 | -1358.3 | -425.2 | |
| 0.27 | -6.00 | 0.15 | -6.00 | 6.76 | 203.92 | -25.26 | 81.77 | 0.4300 | -821.0 | 999999 | |
| 0.00 | 1.54 | 0.00 | 0.85 | 2.46 | 203.85 | -25.34 | 91.83 | 0.4296 | 872.0 | 663.8 | |
| 1.63 | 4.63 | 0.90 | 2.55 | 8.80 | 203.52 | -25.66 | 77.24 | 0.4406 | -870.3 | -673.8 | |
| 0.00 | 1.73 | 0.00 | 0.95 | 8.39 | 203.07 | -26.11 | 78.32 | 0.4465 | -755.0 | -588.2 | |
| 0.00 | 1.09 | 0.00 | 0.60 | 7.77 | 202.91 | -26.28 | 79.74 | 0.4476 | -566.0 | -414.1 | |
| 0.00 | 1.63 | 0.00 | 0.93 | 7.95 | 200.43 | -28.76 | 80.03 | 0.4857 | 727.0 | 556.2 | |
| 0.00 | 1.36 | 0.00 | 0.79 | 6.51 | 197.33 | -31.86 | 83.43 | 0.5299 | 774.0 | 647.2 | |
| 0.00 | 1.18 | 0.00 | 0.69 | 7.64 | 197.10 | -32.09 | 81.35 | 0.5347 | 675.0 | 537.9 | |
| 0.00 | 2.45 | 0.00 | 1.44 | 8.70 | 196.89 | -32.29 | 79.41 | 0.5393 | 223.0 | 394.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
