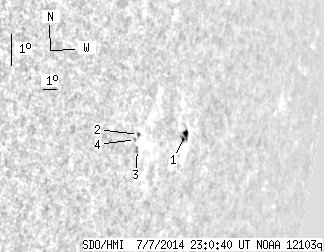

SDO HMI 2014-07-07 23:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.36 | 12.98 | 3.14 | 16.23 | -7.40 | 294.51 | 65.88 | 260.34 | 0.9194 | -102.4 | -46.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-07 23:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.36 | 7.17 | 3.14 | 9.52 | -7.37 | 296.00 | 67.37 | 260.58 | 0.9295 | 326.3 | 371.3 | |
| 0.00 | 1.73 | 0.00 | 1.99 | -7.19 | 292.41 | 63.78 | 260.29 | 0.9048 | -462.0 | -416.1 | |
| 0.00 | 2.81 | 0.00 | 3.26 | -7.66 | 292.47 | 63.84 | 259.78 | 0.9057 | -558.0 | -446.8 | |
| 0.00 | 1.27 | 0.00 | 1.46 | -7.33 | 292.24 | 63.61 | 260.10 | 0.9037 | -633.0 | -476.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
