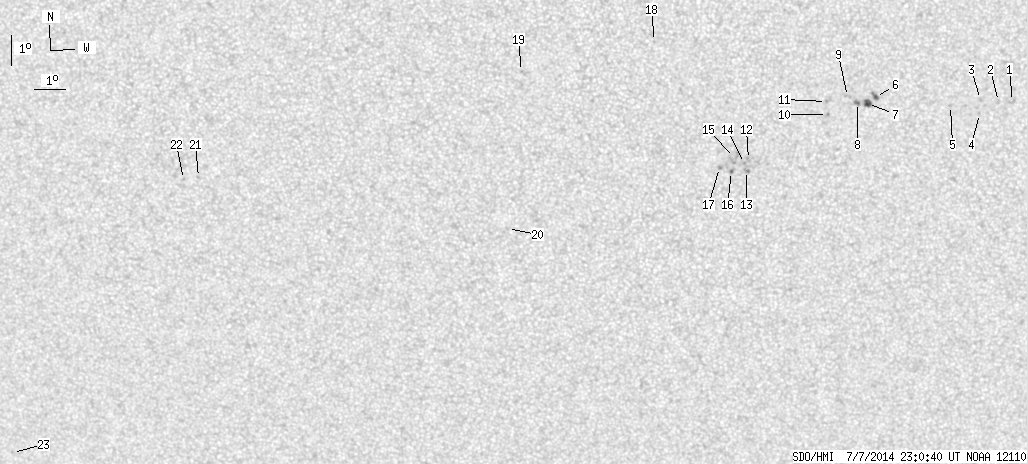

SDO HMI 2014-07-07 23:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 4.99 | 48.13 | 2.63 | 25.68 | -16.43 | 234.08 | 5.45 | 195.54 | 0.3698 | -35.8 | -16.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-07 23:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 3.09 | 0.00 | 1.66 | -15.44 | 241.49 | 12.86 | 213.47 | 0.3907 | 592.0 | 593.9 | |
| 0.00 | 1.73 | 0.00 | 0.93 | -15.43 | 241.04 | 12.41 | 212.54 | 0.3866 | 230.0 | 328.1 | |
| 0.00 | 1.54 | 0.00 | 0.83 | -15.36 | 240.45 | 11.82 | 211.41 | 0.3806 | 794.0 | 593.5 | |
| 0.00 | 1.09 | 0.00 | 0.58 | -15.81 | 240.45 | 11.81 | 210.77 | 0.3867 | 737.0 | 572.8 | |
| 0.00 | 1.18 | 0.00 | 0.63 | -15.54 | 239.49 | 10.86 | 209.07 | 0.3753 | 825.0 | 626.6 | |
| 1.18 | 4.54 | 0.62 | 2.40 | -15.25 | 237.08 | 8.44 | 203.73 | 0.3536 | 960.1 | 749.0 | |
| 3.09 | 5.45 | 1.63 | 2.89 | -15.44 | 236.83 | 8.20 | 202.89 | 0.3548 | 1002.3 | 711.2 | |
| 0.36 | 2.91 | 0.19 | 1.54 | -15.40 | 236.51 | 7.88 | 202.12 | 0.3523 | 963.8 | 826.3 | |
| 0.00 | 2.63 | 0.00 | 1.39 | -15.21 | 236.18 | 7.55 | 201.51 | 0.3473 | 673.0 | 608.0 | |
| 0.00 | 1.45 | 0.00 | 0.77 | -15.78 | 235.56 | 6.93 | 199.32 | 0.3526 | 809.0 | 685.6 | |
| 0.00 | 1.18 | 0.00 | 0.62 | -15.36 | 235.52 | 6.89 | 199.62 | 0.3459 | 923.0 | 735.9 | |
| 0.00 | 1.54 | 0.00 | 0.82 | -17.22 | 233.08 | 4.45 | 191.78 | 0.3644 | -775.0 | -709.4 | |
| 0.00 | 2.27 | 0.00 | 1.21 | -17.58 | 233.03 | 4.39 | 191.44 | 0.3700 | -895.0 | -726.4 | |
| 0.00 | 1.00 | 0.00 | 0.53 | -17.35 | 232.96 | 4.32 | 191.39 | 0.3661 | -911.0 | -744.4 | |
| 0.00 | 6.63 | 0.00 | 3.52 | -17.16 | 232.63 | 4.00 | 190.66 | 0.3619 | -719.0 | -783.7 | |
| 0.36 | 2.27 | 0.19 | 1.21 | -17.61 | 232.54 | 3.91 | 190.20 | 0.3690 | -862.5 | -680.4 | |
| 0.00 | 1.91 | 0.00 | 1.01 | -17.48 | 232.16 | 3.53 | 189.27 | 0.3658 | -972.0 | -875.1 | |
| 0.00 | 1.18 | 0.00 | 0.61 | -13.41 | 230.06 | 1.43 | 184.73 | 0.2947 | -739.0 | -520.5 | |
| 0.00 | 0.73 | 0.00 | 0.38 | -14.36 | 225.88 | -2.75 | 171.41 | 0.3131 | -772.0 | -680.5 | |
| 0.00 | 1.27 | 0.00 | 0.69 | -19.48 | 225.34 | -3.29 | 172.14 | 0.3972 | -717.0 | -523.0 | |
| 0.00 | 1.09 | 0.00 | 0.60 | -17.88 | 215.36 | -13.27 | 149.07 | 0.4267 | -714.0 | -601.0 | |
| 0.00 | 0.54 | 0.00 | 0.30 | -17.95 | 214.86 | -13.77 | 148.23 | 0.4318 | -864.0 | -732.3 | |
| 0.00 | 0.91 | 0.00 | 0.56 | -27.37 | 207.67 | -20.96 | 148.12 | 0.6038 | -701.0 | -604.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
