SDO HMI 2014-07-07 23:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 31.69 | 162.71 | 17.22 | 88.77 | 6.61 | 204.03 | -24.61 | 82.00 | 0.4193 | -783.2 | -398.3 | |
|
previous
or next observation for the same group /

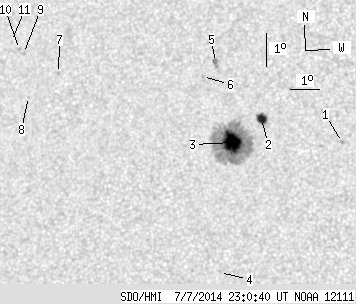

back to the solar disc SDO HMI 2014-07-07 23:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.36 | 0.00 | 0.72 | 6.50 | 207.89 | -20.74 | 81.15 | 0.3577 | -912.0 | -783.1 | |
| 7.08 | 9.62 | 3.83 | 5.20 | 7.18 | 205.17 | -23.46 | 80.29 | 0.4024 | -1035.2 | -619.2 | |
| 24.61 | 139.92 | 13.39 | 76.18 | 6.42 | 204.24 | -24.40 | 82.38 | 0.4158 | -1354.1 | -427.7 | |
| 0.00 | 0.82 | 0.00 | 0.45 | 2.45 | 203.93 | -24.70 | 91.96 | 0.4194 | 694.0 | 569.0 | |
| 0.00 | 4.72 | 0.00 | 2.59 | 8.85 | 203.51 | -25.12 | 76.92 | 0.4324 | -902.0 | -709.4 | |
| 0.00 | 0.82 | 0.00 | 0.45 | 8.41 | 203.10 | -25.53 | 78.08 | 0.4376 | -821.0 | -662.8 | |
| 0.00 | 1.00 | 0.00 | 0.58 | 8.36 | 198.07 | -30.56 | 79.67 | 0.5134 | 891.0 | 666.0 | |
| 0.00 | 0.91 | 0.00 | 0.53 | 7.63 | 197.05 | -31.58 | 81.29 | 0.5272 | 559.0 | 454.9 | |
| 0.00 | 1.09 | 0.00 | 0.64 | 8.93 | 196.75 | -31.88 | 78.90 | 0.5337 | 892.0 | 616.4 | |
| 0.00 | 1.54 | 0.00 | 0.90 | 9.05 | 196.60 | -32.03 | 78.72 | 0.5362 | 580.0 | 478.4 | |
| 0.00 | 0.91 | 0.00 | 0.53 | 9.29 | 196.28 | -32.35 | 78.36 | 0.5413 | 579.0 | 389.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
