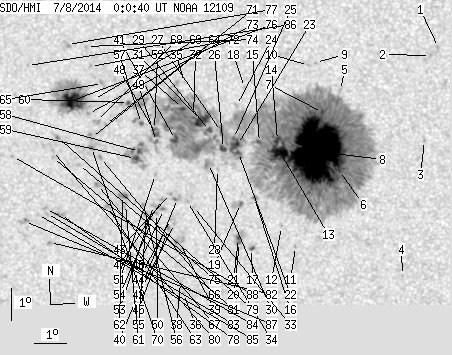

SDO HMI 2014-07-08 00:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 317.91 | 1870.94 | 162.18 | 955.97 | -7.90 | 220.64 | -7.44 | 147.88 | 0.2403 | 670.7 | 197.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-08 00:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.45 | 0.00 | 0.73 | -4.77 | 225.87 | -2.21 | 165.20 | 0.1512 | 925.0 | 718.3 | |
| 0.00 | 1.36 | 0.00 | 0.68 | -5.01 | 225.62 | -2.46 | 164.09 | 0.1564 | 946.0 | 818.4 | |
| 0.00 | 0.91 | 0.00 | 0.46 | -7.64 | 225.42 | -2.66 | 166.74 | 0.2012 | 741.0 | 629.8 | |
| 0.00 | 0.91 | 0.00 | 0.47 | -11.87 | 224.70 | -3.38 | 167.79 | 0.2741 | 561.0 | 462.8 | |
| 0.00 | 2.45 | 0.00 | 1.24 | -6.10 | 222.85 | -5.23 | 151.71 | 0.1920 | 153.0 | 114.7 | |
| 0.27 | 1571.20 | 0.14 | 800.90 | -8.59 | 222.79 | -5.29 | 156.62 | 0.2307 | 1097.7 | 351.8 | |
| 1.63 | -6.00 | 0.83 | -6.00 | -6.79 | 222.29 | -5.79 | 150.91 | 0.2069 | 1150.3 | 999999 | |
| 218.11 | -6.00 | 110.93 | -6.00 | -8.00 | 222.09 | -5.99 | 152.75 | 0.2268 | 1730.6 | 999999 | |
| 0.00 | 1.18 | 0.00 | 0.60 | -5.24 | 222.09 | -5.99 | 145.90 | 0.1861 | -903.0 | -685.8 | |
| 0.00 | 1.36 | 0.00 | 0.69 | -5.34 | 221.88 | -6.20 | 145.24 | 0.1895 | -741.0 | -554.9 | |
| 0.00 | 1.09 | 0.00 | 0.56 | -10.97 | 221.37 | -6.70 | 155.48 | 0.2774 | -798.0 | -599.7 | |
| 0.00 | 0.64 | 0.00 | 0.33 | -10.35 | 220.95 | -7.13 | 153.10 | 0.2710 | 822.0 | 603.3 | |
| 15.07 | -6.00 | 7.68 | -6.00 | -8.04 | 220.97 | -7.11 | 148.67 | 0.2366 | 1217.1 | 999999 | |
| 3.81 | -6.00 | 1.94 | -6.00 | -7.66 | 220.88 | -7.19 | 147.51 | 0.2320 | 1107.0 | 999999 | |
| 1.91 | -6.00 | 0.97 | -6.00 | -7.73 | 220.33 | -7.75 | 145.69 | 0.2382 | 562.3 | 999999 | |
| 0.54 | 3.18 | 0.28 | 1.63 | -9.44 | 220.13 | -7.95 | 148.80 | 0.2644 | 929.3 | 713.3 | |
| 0.91 | 2.18 | 0.47 | 1.13 | -11.05 | 220.00 | -8.08 | 151.32 | 0.2888 | -884.5 | -688.0 | |
| 0.00 | 0.91 | 0.00 | 0.46 | -6.03 | 219.89 | -8.19 | 139.64 | 0.2197 | 771.0 | 574.7 | |
| 0.64 | 7.72 | 0.33 | 3.97 | -9.64 | 219.69 | -8.39 | 147.79 | 0.2710 | 903.4 | 319.8 | |
| 0.82 | 9.26 | 0.42 | 4.79 | -10.86 | 219.62 | -8.45 | 149.90 | 0.2892 | -1074.9 | -644.9 | |
| 1.27 | -20.00 | 0.66 | -20.00 | -10.74 | 219.60 | -8.48 | 149.59 | 0.2876 | -1154.8 | 999999 | |
| 1.63 | -6.00 | 0.84 | -6.00 | -8.04 | 219.67 | -8.41 | 144.25 | 0.2490 | 1201.8 | 999999 | |
| 2.45 | -6.00 | 1.25 | -6.00 | -7.80 | 219.64 | -8.44 | 143.57 | 0.2459 | 1324.3 | 999999 | |
| 0.00 | 2.09 | 0.00 | 1.06 | -6.59 | 219.63 | -8.44 | 140.38 | 0.2298 | 148.0 | 75.1 | |
| 1.00 | -6.00 | 0.51 | -6.00 | -7.61 | 219.52 | -8.56 | 142.72 | 0.2446 | 886.2 | 999999 | |
| 3.27 | -6.00 | 1.67 | -6.00 | -7.92 | 219.20 | -8.88 | 142.49 | 0.2521 | 940.8 | 999999 | |
| 1.36 | -6.00 | 0.70 | -6.00 | -7.40 | 219.15 | -8.93 | 141.00 | 0.2456 | 1006.6 | 999999 | |
| 0.00 | 1.36 | 0.00 | 0.70 | -8.58 | 219.00 | -9.08 | 143.42 | 0.2630 | 589.0 | 370.3 | |
| 2.27 | -6.00 | 1.16 | -6.00 | -7.37 | 218.78 | -9.30 | 139.78 | 0.2493 | 1110.0 | 999999 | |
| 0.00 | 7.72 | 0.00 | 3.96 | -8.40 | 218.72 | -9.36 | 142.16 | 0.2633 | 148.0 | 17.2 | |
| 12.44 | -6.00 | 6.36 | -6.00 | -7.06 | 218.54 | -9.54 | 138.23 | 0.2480 | 1082.5 | 999999 | |
| 1.00 | -6.00 | 0.51 | -6.00 | -6.97 | 218.29 | -9.79 | 137.25 | 0.2497 | 887.6 | 999999 | |
| 0.00 | 1.45 | 0.00 | 0.75 | -9.74 | 218.22 | -9.86 | 143.71 | 0.2865 | -607.0 | -547.4 | |
| 0.00 | 1.00 | 0.00 | 0.52 | -9.59 | 218.03 | -10.05 | 142.88 | 0.2863 | -852.0 | -713.6 | |
| 0.00 | 1.00 | 0.00 | 0.51 | -5.89 | 218.03 | -10.05 | 133.38 | 0.2398 | -608.0 | -426.8 | |
| 0.00 | 1.00 | 0.00 | 0.52 | -12.49 | 217.80 | -10.28 | 147.76 | 0.3279 | -817.0 | -682.5 | |
| 2.27 | -6.00 | 1.16 | -6.00 | -6.69 | 217.95 | -10.13 | 135.52 | 0.2503 | 583.5 | 999999 | |
| 0.00 | 1.18 | 0.00 | 0.62 | -12.14 | 217.72 | -10.36 | 146.96 | 0.3239 | -771.0 | -513.8 | |
| 0.00 | 7.26 | 0.00 | 3.78 | -10.85 | 217.74 | -10.34 | 144.65 | 0.3060 | -714.0 | -743.5 | |
| 0.00 | 4.09 | 0.00 | 2.11 | -9.50 | 217.72 | -10.36 | 141.84 | 0.2882 | -765.0 | -709.0 | |
| 4.36 | -6.00 | 2.24 | -6.00 | -7.66 | 217.71 | -10.37 | 137.44 | 0.2649 | -1006.1 | 999999 | |
| 0.00 | 1.36 | 0.00 | 0.71 | -10.28 | 217.60 | -10.48 | 143.17 | 0.2998 | -927.0 | -743.7 | |
| 0.00 | 1.36 | 0.00 | 0.70 | -9.34 | 217.51 | -10.57 | 140.92 | 0.2885 | -865.0 | -750.3 | |
| 0.00 | 1.09 | 0.00 | 0.57 | -10.16 | 217.48 | -10.60 | 142.60 | 0.2994 | -1100.0 | -899.1 | |
| 0.00 | 1.91 | 0.00 | 0.99 | -10.44 | 217.41 | -10.67 | 142.99 | 0.3039 | -943.0 | -794.5 | |
| 0.00 | 2.09 | 0.00 | 1.08 | -9.85 | 217.27 | -10.81 | 141.40 | 0.2975 | -890.0 | -677.4 | |
| 0.00 | 1.45 | 0.00 | 0.75 | -9.53 | 217.25 | -10.83 | 140.67 | 0.2937 | -886.0 | -770.6 | |
| 2.09 | -6.00 | 1.07 | -6.00 | -7.51 | 217.12 | -10.96 | 135.47 | 0.2699 | -994.0 | 999999 | |
| 0.64 | -6.00 | 0.33 | -6.00 | -7.73 | 217.12 | -10.96 | 136.02 | 0.2726 | -857.3 | 999999 | |
| 0.00 | 1.54 | 0.00 | 0.80 | -9.97 | 217.04 | -11.03 | 141.10 | 0.3015 | -928.0 | -725.5 | |
| 0.00 | 1.54 | 0.00 | 0.80 | -8.76 | 217.05 | -11.02 | 138.40 | 0.2859 | -775.0 | -528.5 | |
| 0.82 | -6.00 | 0.42 | -6.00 | -7.36 | 217.06 | -11.02 | 134.91 | 0.2688 | -1210.9 | 999999 | |
| 0.00 | 2.63 | 0.00 | 1.37 | -9.73 | 216.96 | -11.12 | 140.35 | 0.2992 | -934.0 | -821.7 | |
| 0.00 | 0.91 | 0.00 | 0.47 | -10.16 | 216.91 | -11.17 | 141.16 | 0.3053 | -690.0 | -577.2 | |
| 0.00 | 2.00 | 0.00 | 1.04 | -10.01 | 216.73 | -11.35 | 140.38 | 0.3053 | -777.0 | -820.3 | |
| 0.00 | 1.18 | 0.00 | 0.61 | -9.70 | 216.64 | -11.43 | 139.50 | 0.3022 | -990.0 | -850.2 | |
| 0.82 | 5.99 | 0.42 | 3.08 | -7.17 | 216.66 | -11.42 | 133.40 | 0.2715 | -1068.8 | -832.9 | |
| 2.09 | 31.87 | 1.08 | 16.47 | -8.04 | 216.57 | -11.51 | 135.45 | 0.2828 | -1166.1 | -821.6 | |
| 2.91 | -58.00 | 1.50 | -58.00 | -8.26 | 216.44 | -11.64 | 135.67 | 0.2869 | -1087.0 | 999999 | |
| 1.00 | 18.07 | 0.51 | 9.28 | -6.53 | 216.27 | -11.81 | 130.65 | 0.2691 | -1123.0 | -908.9 | |
| 0.00 | 2.18 | 0.00 | 1.13 | -9.70 | 216.08 | -12.00 | 138.14 | 0.3085 | -650.0 | -617.9 | |
| 0.00 | 5.09 | 0.00 | 2.65 | -9.42 | 215.99 | -12.09 | 137.32 | 0.3061 | -1063.0 | -982.0 | |
| 0.00 | 3.00 | 0.00 | 1.56 | -9.77 | 215.50 | -12.58 | 136.97 | 0.3158 | -823.0 | -667.9 | |
| 0.00 | 1.36 | 0.00 | 0.70 | -7.22 | 215.53 | -12.55 | 130.83 | 0.2861 | -957.0 | -779.8 | |
| 0.00 | 3.27 | 0.00 | 1.68 | -5.95 | 215.47 | -12.61 | 127.14 | 0.2736 | -1096.0 | -803.2 | |
| 0.00 | 1.63 | 0.00 | 0.85 | -8.25 | 215.34 | -12.74 | 133.04 | 0.2999 | -1079.0 | -938.6 | |
| 0.00 | 3.18 | 0.00 | 1.66 | -9.09 | 215.21 | -12.87 | 134.78 | 0.3111 | -944.0 | -791.4 | |
| 0.00 | 3.90 | 0.00 | 2.02 | -7.13 | 215.25 | -12.83 | 129.96 | 0.2887 | -902.0 | -791.1 | |
| 0.00 | 0.73 | 0.00 | 0.38 | -6.45 | 215.17 | -12.91 | 127.93 | 0.2826 | -139.0 | -171.4 | |
| 0.45 | 4.09 | 0.24 | 2.12 | -7.94 | 215.06 | -13.01 | 131.66 | 0.2999 | -1173.2 | -839.4 | |
| 0.00 | 2.72 | 0.00 | 1.41 | -7.63 | 215.07 | -13.00 | 130.89 | 0.2963 | -779.0 | -863.8 | |
| 0.00 | 2.09 | 0.00 | 1.08 | -5.43 | 215.10 | -12.97 | 124.81 | 0.2734 | -816.0 | -629.0 | |
| 0.00 | 1.27 | 0.00 | 0.66 | -6.88 | 215.00 | -13.08 | 128.77 | 0.2893 | -938.0 | -777.1 | |
| 0.00 | 1.18 | 0.00 | 0.61 | -4.81 | 214.99 | -13.09 | 122.68 | 0.2692 | -848.0 | -669.0 | |
| 0.00 | 1.91 | 0.00 | 0.99 | -8.47 | 214.63 | -13.44 | 132.06 | 0.3111 | -689.0 | -567.4 | |
| 30.06 | 98.61 | 15.56 | 51.07 | -6.49 | 214.51 | -13.57 | 126.65 | 0.2918 | -1234.2 | -474.6 | |
| 0.00 | 3.63 | 0.00 | 1.87 | -4.76 | 214.40 | -13.68 | 121.36 | 0.2773 | -896.0 | -720.8 | |
| 0.00 | 4.63 | 0.00 | 2.43 | -10.05 | 214.00 | -14.08 | 134.34 | 0.3364 | -850.0 | -739.5 | |
| 0.00 | 2.63 | 0.00 | 1.37 | -7.64 | 214.00 | -14.08 | 128.69 | 0.3103 | -1078.0 | -830.9 | |
| 0.00 | 1.00 | 0.00 | 0.52 | -8.05 | 213.83 | -14.25 | 129.37 | 0.3167 | -865.0 | -650.0 | |
| 0.00 | 0.82 | 0.00 | 0.43 | -8.27 | 213.82 | -14.26 | 129.89 | 0.3191 | -773.0 | -579.9 | |
| 0.00 | 1.63 | 0.00 | 0.86 | -10.93 | 213.60 | -14.48 | 135.41 | 0.3511 | -797.0 | -680.5 | |
| 0.00 | 1.73 | 0.00 | 0.91 | -10.02 | 213.55 | -14.53 | 133.39 | 0.3414 | -828.0 | -705.7 | |
| 0.00 | 1.91 | 0.00 | 1.00 | -9.86 | 213.53 | -14.55 | 133.01 | 0.3400 | -802.0 | -656.7 | |
| 0.00 | 1.27 | 0.00 | 0.67 | -10.06 | 213.26 | -14.82 | 132.91 | 0.3453 | -614.0 | -465.1 | |
| 0.00 | 1.09 | 0.00 | 0.57 | -5.43 | 213.12 | -14.96 | 121.06 | 0.3013 | -819.0 | -640.5 | |
| 0.00 | 4.54 | 0.00 | 2.40 | -10.28 | 212.83 | -15.25 | 132.59 | 0.3529 | -897.0 | -792.5 | |
| 0.00 | 0.91 | 0.00 | 0.48 | -8.26 | 212.54 | -15.54 | 127.48 | 0.3354 | -776.0 | -674.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
