SDO HMI 2014-07-08 00:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 20.53 | 84.81 | 11.18 | 46.10 | 7.35 | 252.21 | 24.13 | 279.94 | 0.4135 | 286.9 | 318.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-08 00:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |

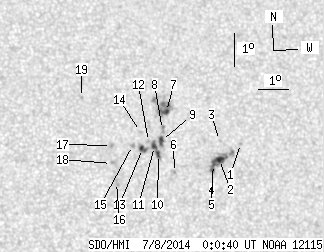

| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.27 | 0.00 | 0.70 | 7.20 | 254.51 | 26.43 | 278.92 | 0.4489 | -814.0 | -676.0 | |
| 5.18 | 22.07 | 2.85 | 12.14 | 6.73 | 253.76 | 25.68 | 278.04 | 0.4365 | -1089.6 | -765.4 | |
| 0.00 | 0.64 | 0.00 | 0.35 | 7.31 | 253.80 | 25.72 | 279.35 | 0.4380 | -549.0 | -465.7 | |
| 1.45 | -2.00 | 0.80 | -2.00 | 6.59 | 253.55 | 25.47 | 277.75 | 0.4329 | -1063.6 | 999999 | |
| 1.27 | -2.00 | 0.70 | -2.00 | 6.43 | 253.51 | 25.43 | 277.41 | 0.4321 | -951.4 | 999999 | |
| 0.00 | 1.36 | 0.00 | 0.74 | 6.38 | 252.22 | 24.14 | 277.55 | 0.4117 | 594.0 | 386.5 | |
| 2.00 | 24.06 | 1.09 | 13.07 | 8.25 | 252.06 | 23.98 | 282.12 | 0.4131 | 791.3 | 743.7 | |
| 0.00 | 3.36 | 0.00 | 1.82 | 7.70 | 251.89 | 23.81 | 280.86 | 0.4091 | 777.0 | 649.2 | |
| 3.00 | 15.07 | 1.62 | 8.16 | 7.37 | 251.84 | 23.76 | 280.07 | 0.4075 | 844.3 | 618.2 | |
| 2.09 | -9.00 | 1.13 | -9.00 | 6.94 | 251.71 | 23.63 | 279.06 | 0.4047 | 790.9 | 999999 | |
| 2.36 | -9.00 | 1.28 | -9.00 | 7.19 | 251.59 | 23.51 | 279.71 | 0.4033 | 976.8 | 999999 | |
| 0.00 | 1.54 | 0.00 | 0.83 | 7.35 | 251.40 | 23.32 | 280.17 | 0.4006 | 952.0 | 711.5 | |
| 3.18 | 5.81 | 1.71 | 3.13 | 7.14 | 251.19 | 23.11 | 279.72 | 0.3968 | 972.6 | 817.4 | |
| 0.00 | 1.45 | 0.00 | 0.78 | 7.66 | 251.15 | 23.07 | 281.03 | 0.3974 | 69.0 | 108.5 | |
| 0.00 | 1.73 | 0.00 | 0.93 | 7.24 | 250.86 | 22.78 | 280.08 | 0.3918 | 912.0 | 771.2 | |
| 0.00 | 2.91 | 0.00 | 1.56 | 6.12 | 250.27 | 22.19 | 277.38 | 0.3803 | 761.0 | 663.0 | |
| 0.00 | 1.91 | 0.00 | 1.02 | 7.26 | 250.16 | 22.08 | 280.38 | 0.3808 | 894.0 | 726.9 | |
| 0.00 | 0.54 | 0.00 | 0.29 | 6.71 | 250.13 | 22.06 | 278.95 | 0.3791 | 693.0 | 598.5 | |
| 0.00 | 1.09 | 0.00 | 0.58 | 8.75 | 249.25 | 21.17 | 284.73 | 0.3707 | 659.0 | 530.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
