SDO HMI 2014-07-08 01:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 5.54 | 0.00 | 3.31 | 4.48 | 260.52 | 32.99 | 271.61 | 0.5470 | 640.0 | 567.3 | |
|
previous
or next observation for the same group /

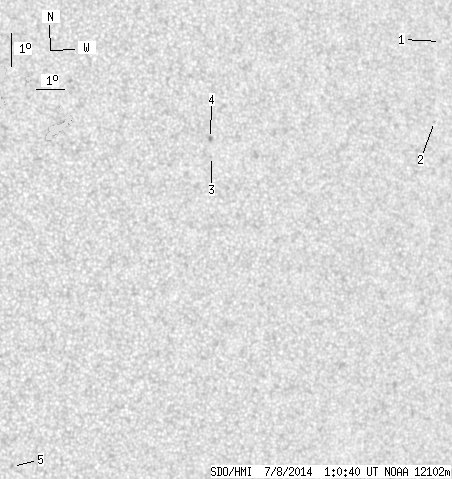

back to the solar disc SDO HMI 2014-07-08 01:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.73 | 0.00 | 0.48 | 8.82 | 268.21 | 40.69 | 279.33 | 0.6551 | 482.0 | 380.8 | |
| 0.00 | 0.91 | 0.00 | 0.59 | 6.39 | 267.69 | 40.16 | 275.63 | 0.6463 | 608.0 | 495.2 | |
| 0.00 | 0.54 | 0.00 | 0.32 | 5.64 | 259.17 | 31.64 | 274.90 | 0.5260 | 651.0 | 503.2 | |
| 0.00 | 2.09 | 0.00 | 1.22 | 6.19 | 259.17 | 31.64 | 275.94 | 0.5264 | 846.0 | 696.6 | |
| 0.00 | 1.27 | 0.00 | 0.70 | -3.62 | 252.15 | 24.63 | 253.90 | 0.4346 | 613.0 | 559.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
