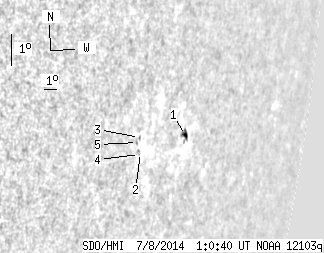

SDO HMI 2014-07-08 01:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.45 | 8.71 | 2.03 | 11.61 | -7.35 | 294.95 | 67.42 | 260.60 | 0.9294 | -113.3 | 43.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-08 01:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.45 | 5.81 | 2.03 | 8.11 | -7.34 | 296.05 | 68.52 | 260.75 | 0.9366 | 399.8 | 308.3 | |
| 0.00 | 0.54 | 0.00 | 0.66 | -7.66 | 292.59 | 65.07 | 259.95 | 0.9144 | -170.0 | -231.5 | |
| 0.00 | 1.18 | 0.00 | 1.42 | -7.18 | 292.39 | 64.86 | 260.44 | 0.9126 | -486.0 | -466.4 | |
| 0.00 | 0.27 | 0.00 | 0.33 | -7.72 | 292.54 | 65.01 | 259.88 | 0.9141 | -304.0 | -391.7 | |
| 0.00 | 0.91 | 0.00 | 1.09 | -7.33 | 292.28 | 64.76 | 260.26 | 0.9119 | -535.0 | -473.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
