SDO HMI 2014-07-08 01:00:40 UT

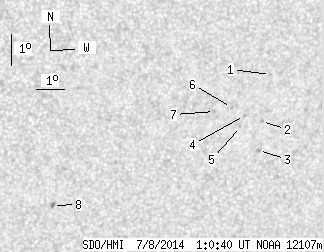

See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 9.81 | 0.00 | 5.91 | -13.45 | 258.02 | 30.49 | 239.81 | 0.5728 | 467.6 | 280.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-08 01:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.73 | 0.00 | 0.44 | -11.48 | 260.21 | 32.69 | 244.66 | 0.5878 | 662.0 | 525.2 | |
| 0.00 | 1.18 | 0.00 | 0.73 | -12.97 | 260.08 | 32.56 | 242.27 | 0.5946 | 516.0 | 469.2 | |
| 0.00 | 1.54 | 0.00 | 0.95 | -13.89 | 260.11 | 32.59 | 240.89 | 0.6006 | 726.0 | 576.0 | |
| 0.00 | 0.91 | 0.00 | 0.55 | -12.75 | 259.42 | 31.90 | 242.14 | 0.5851 | 700.0 | 580.6 | |
| 0.00 | 0.91 | 0.00 | 0.55 | -13.10 | 259.33 | 31.80 | 241.53 | 0.5860 | 675.0 | 505.1 | |
| 0.00 | 1.09 | 0.00 | 0.66 | -12.48 | 258.91 | 31.38 | 242.19 | 0.5770 | 476.0 | 551.2 | |
| 0.00 | 1.18 | 0.00 | 0.71 | -12.59 | 258.30 | 30.78 | 241.58 | 0.5700 | 730.0 | 613.3 | |
| 0.00 | 2.27 | 0.00 | 1.32 | -15.42 | 252.90 | 25.37 | 232.22 | 0.5246 | -744.0 | -654.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
