SDO HMI 2014-07-08 01:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 31.43 | 158.01 | 16.93 | 85.30 | 6.58 | 204.25 | -23.28 | 81.76 | 0.3984 | -1027.8 | -447.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-08 01:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |

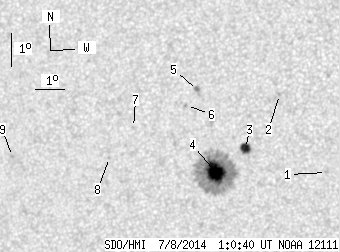

| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.00 | 0.00 | 0.53 | 6.48 | 207.92 | -19.60 | 80.85 | 0.3391 | -772.0 | -627.7 | |
| 0.00 | 1.18 | 0.00 | 0.63 | 8.83 | 206.27 | -21.26 | 75.12 | 0.3723 | -877.0 | -664.9 | |
| 7.27 | 9.44 | 3.90 | 5.06 | 7.16 | 205.23 | -22.30 | 79.98 | 0.3839 | -1023.9 | -652.8 | |
| 24.16 | 138.49 | 13.03 | 74.73 | 6.43 | 204.27 | -23.26 | 82.12 | 0.3978 | -1384.9 | -447.7 | |
| 0.00 | 3.54 | 0.00 | 1.93 | 8.89 | 203.52 | -24.01 | 76.38 | 0.4153 | -906.0 | -726.0 | |
| 0.00 | 1.18 | 0.00 | 0.64 | 8.42 | 203.18 | -24.35 | 77.63 | 0.4193 | -723.0 | -665.8 | |
| 0.00 | 1.18 | 0.00 | 0.65 | 7.71 | 201.42 | -26.11 | 79.88 | 0.4448 | -601.0 | -427.2 | |
| 0.00 | 1.18 | 0.00 | 0.66 | 6.77 | 200.65 | -26.87 | 82.15 | 0.4550 | 501.0 | 441.2 | |
| 0.00 | 0.82 | 0.00 | 0.47 | 6.70 | 197.26 | -30.26 | 82.89 | 0.5064 | 821.0 | 713.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
