SDO HMI 2014-07-08 01:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 14.54 | 88.09 | 39.62 | 259.24 | -19.20 | 149.64 | -77.89 | 110.26 | 0.9849 | 223.5 | -137.7 | |
|
previous
or next observation for the same group /

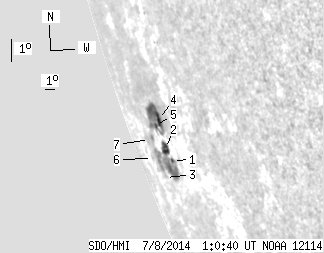

back to the solar disc SDO HMI 2014-07-08 01:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.82 | 45.59 | 2.19 | 135.54 | -19.89 | 150.25 | -77.28 | 111.03 | 0.9835 | 191.8 | -201.0 | |
| 6.72 | -1.00 | 18.79 | -1.00 | -19.53 | 149.78 | -77.75 | 110.60 | 0.9847 | 178.6 | 999999 | |
| 0.00 | 0.36 | 0.00 | 1.25 | -20.61 | 147.73 | -79.79 | 111.44 | 0.9903 | -346.0 | -313.8 | |
| 5.09 | 35.24 | 13.31 | 97.55 | -18.55 | 150.27 | -77.26 | 109.68 | 0.9829 | 472.2 | 0.8 | |
| 1.91 | -4.00 | 5.33 | -4.00 | -18.80 | 149.41 | -78.12 | 109.82 | 0.9855 | 73.8 | 999999 | |
| 0.00 | 0.27 | 0.00 | 1.09 | -20.08 | 146.32 | -81.21 | 110.75 | 0.9931 | -374.0 | -376.0 | |
| 0.00 | 6.63 | 0.00 | 23.81 | -19.39 | 147.24 | -80.29 | 110.17 | 0.9911 | -208.0 | -271.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
