SDO HMI 2014-07-08 02:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 4.18 | 20.62 | 2.48 | 12.92 | -21.69 | 199.06 | -27.92 | 134.61 | 0.6093 | -41.1 | -207.2 | |
|
previous
or next observation for the same group /

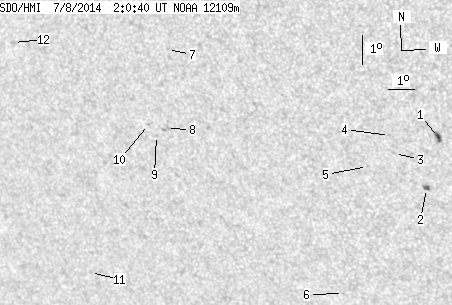

back to the solar disc SDO HMI 2014-07-08 02:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.82 | 4.81 | 1.66 | 2.83 | -21.26 | 205.40 | -21.57 | 140.56 | 0.5415 | 881.0 | 664.1 | |
| 1.36 | 3.18 | 0.82 | 1.91 | -23.00 | 204.69 | -22.29 | 141.81 | 0.5667 | -879.5 | -726.0 | |
| 0.00 | 0.82 | 0.00 | 0.49 | -21.84 | 203.75 | -23.23 | 139.26 | 0.5631 | 684.0 | 605.0 | |
| 0.00 | 0.82 | 0.00 | 0.49 | -21.24 | 203.67 | -23.30 | 138.41 | 0.5577 | 576.0 | 489.8 | |
| 0.00 | 0.27 | 0.00 | 0.17 | -22.31 | 202.69 | -24.29 | 138.63 | 0.5778 | 581.0 | 497.3 | |
| 0.00 | 0.73 | 0.00 | 0.47 | -26.75 | 200.84 | -26.14 | 141.78 | 0.6382 | -472.0 | -407.2 | |
| 0.00 | 0.54 | 0.00 | 0.34 | -18.60 | 196.06 | -30.91 | 127.21 | 0.6136 | -534.0 | -385.0 | |
| 0.00 | 4.36 | 0.00 | 2.81 | -21.25 | 195.44 | -31.54 | 130.18 | 0.6404 | -628.0 | -522.6 | |
| 0.00 | 1.00 | 0.00 | 0.65 | -21.50 | 194.99 | -31.99 | 130.13 | 0.6469 | -533.0 | -335.6 | |
| 0.00 | 1.09 | 0.00 | 0.71 | -21.13 | 194.77 | -32.21 | 129.49 | 0.6464 | -703.0 | -579.1 | |
| 0.00 | 1.00 | 0.00 | 0.71 | -26.34 | 190.86 | -36.12 | 132.76 | 0.7218 | -104.0 | -86.1 | |
| 0.00 | 2.00 | 0.00 | 1.34 | -18.59 | 190.08 | -36.89 | 122.74 | 0.6788 | -121.0 | -217.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
