SDO HMI 2014-07-08 03:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.73 | 8.63 | 2.54 | 11.99 | -7.32 | 294.82 | 68.40 | 260.75 | 0.9354 | -68.7 | -0.5 | |
|
previous
or next observation for the same group /

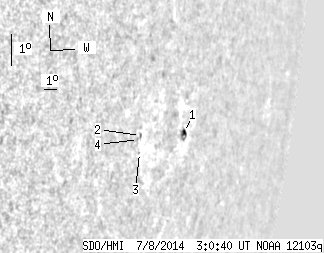

back to the solar disc SDO HMI 2014-07-08 03:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.73 | 5.36 | 2.54 | 7.89 | -7.31 | 296.08 | 69.66 | 260.92 | 0.9433 | 391.8 | 329.2 | |
| 0.00 | 1.36 | 0.00 | 1.71 | -7.18 | 292.41 | 65.99 | 260.59 | 0.9203 | -461.0 | -447.7 | |
| 0.00 | 0.73 | 0.00 | 0.92 | -7.71 | 292.49 | 66.07 | 260.03 | 0.9213 | -326.0 | -305.2 | |
| 0.00 | 1.18 | 0.00 | 1.47 | -7.30 | 292.29 | 65.87 | 260.45 | 0.9196 | -589.0 | -489.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
