SDO HMI 2014-07-08 03:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 87.01 | 441.28 | 60.40 | 305.46 | -11.92 | 268.15 | 41.72 | 248.81 | 0.7009 | 148.8 | -21.5 | |
|
previous
or next observation for the same group /

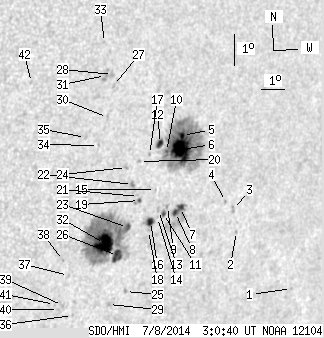

back to the solar disc SDO HMI 2014-07-08 03:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.09 | 0.00 | 0.88 | -15.20 | 275.48 | 49.05 | 247.52 | 0.7911 | 300.0 | 275.3 | |
| 0.00 | 1.27 | 0.00 | 0.95 | -13.23 | 272.36 | 45.93 | 248.81 | 0.7525 | 654.0 | 548.6 | |
| 0.00 | 2.91 | 0.00 | 2.16 | -12.52 | 272.06 | 45.63 | 249.60 | 0.7468 | 614.0 | 447.5 | |
| 0.00 | 1.09 | 0.00 | 0.80 | -12.25 | 271.64 | 45.21 | 249.80 | 0.7413 | 666.0 | 588.7 | |
| 2.54 | 182.30 | 1.78 | 127.81 | -10.07 | 269.36 | 42.93 | 251.84 | 0.7081 | 1025.6 | 280.3 | |
| 30.07 | -5.00 | 21.08 | -5.00 | -10.51 | 269.39 | 42.96 | 251.25 | 0.7099 | 961.9 | 999999 | |
| 3.27 | 20.44 | 2.33 | 14.56 | -12.35 | 269.69 | 43.27 | 248.90 | 0.7200 | 686.6 | 113.2 | |
| 3.18 | -7.00 | 2.26 | -7.00 | -12.50 | 269.51 | 43.08 | 248.62 | 0.7184 | 678.1 | 999999 | |
| 0.00 | 1.36 | 0.00 | 0.96 | -12.29 | 269.13 | 42.70 | 248.74 | 0.7133 | 824.0 | 664.3 | |
| 0.91 | -5.00 | 0.63 | -5.00 | -10.54 | 268.76 | 42.33 | 250.96 | 0.7027 | 953.9 | 999999 | |
| 1.54 | 3.09 | 1.09 | 2.17 | -12.51 | 269.00 | 42.57 | 248.40 | 0.7127 | 630.8 | 494.6 | |
| 3.36 | -5.00 | 2.32 | -5.00 | -10.28 | 268.46 | 42.04 | 251.20 | 0.6983 | 876.6 | 999999 | |
| 0.00 | 2.45 | 0.00 | 1.72 | -12.40 | 268.77 | 42.34 | 248.44 | 0.7096 | 595.0 | 519.3 | |
| 0.00 | 0.54 | 0.00 | 0.38 | -12.62 | 268.77 | 42.34 | 248.14 | 0.7105 | 397.0 | 382.3 | |
| 0.00 | 0.91 | 0.00 | 0.63 | -11.73 | 268.51 | 42.08 | 249.24 | 0.7041 | 386.0 | 369.3 | |
| 3.81 | 6.90 | 2.67 | 4.82 | -12.74 | 268.49 | 42.07 | 247.87 | 0.7078 | 667.9 | 461.0 | |
| 0.00 | 1.00 | 0.00 | 0.69 | -10.61 | 268.06 | 41.63 | 250.59 | 0.6946 | 606.0 | 596.9 | |
| 0.00 | 0.91 | 0.00 | 0.64 | -13.02 | 268.47 | 42.04 | 247.48 | 0.7086 | 205.0 | 211.4 | |
| 0.82 | 3.45 | 0.56 | 2.38 | -12.05 | 267.90 | 41.47 | 248.54 | 0.6982 | 554.7 | 553.1 | |
| 0.00 | 1.73 | 0.00 | 1.18 | -10.81 | 267.68 | 41.25 | 250.15 | 0.6909 | 629.0 | 495.2 | |
| 0.00 | 1.27 | 0.00 | 0.88 | -11.92 | 267.83 | 41.40 | 248.69 | 0.6969 | 378.0 | 346.6 | |
| 0.00 | 2.63 | 0.00 | 1.80 | -11.52 | 267.51 | 41.08 | 249.09 | 0.6916 | 720.0 | 555.5 | |
| 2.63 | 178.58 | 1.82 | 121.78 | -12.89 | 267.56 | 41.13 | 247.25 | 0.6977 | -318.8 | -481.8 | |
| 0.00 | 1.45 | 0.00 | 0.99 | -10.97 | 267.17 | 40.74 | 249.70 | 0.6854 | 678.0 | 585.8 | |
| 0.00 | 1.73 | 0.00 | 1.21 | -14.94 | 267.92 | 41.50 | 244.67 | 0.7106 | -593.0 | -465.6 | |
| 8.45 | -23.00 | 5.83 | -23.00 | -13.77 | 267.32 | 40.90 | 245.94 | 0.6987 | -689.4 | 999999 | |
| 0.00 | 1.82 | 0.00 | 1.20 | -8.37 | 266.26 | 39.84 | 253.04 | 0.6649 | 445.0 | 521.0 | |
| 0.00 | 2.45 | 0.00 | 1.62 | -8.03 | 266.18 | 39.76 | 253.51 | 0.6627 | 859.0 | 664.5 | |
| 0.00 | 1.82 | 0.00 | 1.27 | -15.33 | 267.30 | 40.87 | 243.84 | 0.7054 | -627.0 | -517.2 | |
| 0.00 | 2.18 | 0.00 | 1.45 | -9.36 | 266.15 | 39.73 | 251.55 | 0.6670 | 593.0 | 493.9 | |
| 0.00 | 5.00 | 0.00 | 3.28 | -8.05 | 265.91 | 39.48 | 253.37 | 0.6593 | 664.0 | 638.8 | |
| 26.43 | -23.00 | 18.03 | -23.00 | -13.36 | 266.70 | 40.27 | 246.20 | 0.6897 | -1068.0 | 999999 | |
| 0.00 | 0.73 | 0.00 | 0.47 | -7.02 | 265.75 | 39.33 | 254.84 | 0.6539 | 659.0 | 593.4 | |
| 0.00 | 1.00 | 0.00 | 0.66 | -10.23 | 265.91 | 39.49 | 250.20 | 0.6674 | 539.0 | 429.8 | |
| 0.00 | 1.45 | 0.00 | 0.96 | -9.96 | 265.35 | 38.93 | 250.35 | 0.6594 | 378.0 | 423.4 | |
| 0.00 | 1.09 | 0.00 | 0.74 | -15.62 | 265.87 | 39.45 | 242.70 | 0.6908 | -477.0 | -368.2 | |
| 0.00 | 0.73 | 0.00 | 0.49 | -14.32 | 265.43 | 39.00 | 244.22 | 0.6794 | -331.0 | -358.2 | |
| 0.00 | 0.73 | 0.00 | 0.49 | -13.83 | 265.12 | 38.70 | 244.74 | 0.6736 | -751.0 | -640.2 | |
| 0.00 | 1.82 | 0.00 | 1.23 | -15.28 | 265.39 | 38.96 | 242.90 | 0.6837 | -630.0 | -579.2 | |
| 0.00 | 1.00 | 0.00 | 0.68 | -15.40 | 265.25 | 38.82 | 242.66 | 0.6827 | -567.0 | -566.2 | |
| 0.00 | 1.00 | 0.00 | 0.67 | -15.23 | 265.05 | 38.62 | 242.77 | 0.6796 | -533.0 | -507.8 | |
| 0.00 | 1.36 | 0.00 | 0.86 | -8.15 | 263.01 | 36.59 | 252.01 | 0.6226 | -621.0 | -469.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
