SDO HMI 2014-07-08 03:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 32.88 | 172.22 | 17.57 | 92.37 | 6.70 | 204.06 | -22.36 | 81.20 | 0.3841 | -815.6 | -394.9 | |
|
previous
or next observation for the same group /

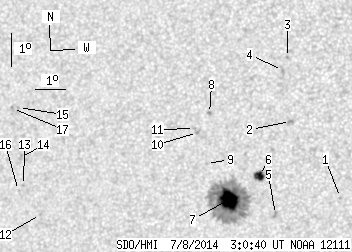

back to the solar disc SDO HMI 2014-07-08 03:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.00 | 0.00 | 0.52 | 6.55 | 207.95 | -18.47 | 80.22 | 0.3209 | -879.0 | -691.7 | |
| 0.00 | 2.91 | 0.00 | 1.54 | 8.84 | 206.22 | -20.21 | 74.49 | 0.3558 | -921.0 | -689.7 | |
| 0.00 | 0.82 | 0.00 | 0.44 | 10.80 | 205.99 | -20.43 | 69.42 | 0.3679 | -758.0 | -626.3 | |
| 0.00 | 3.09 | 0.00 | 1.64 | 10.39 | 205.86 | -20.57 | 70.57 | 0.3680 | -830.0 | -657.9 | |
| 0.00 | 2.45 | 0.00 | 1.30 | 5.99 | 205.86 | -20.57 | 82.61 | 0.3539 | -870.0 | -671.2 | |
| 6.36 | 8.17 | 3.38 | 4.35 | 7.17 | 205.28 | -21.14 | 79.54 | 0.3655 | -1057.0 | -711.8 | |
| 26.52 | 140.34 | 14.19 | 75.10 | 6.41 | 204.29 | -22.13 | 81.90 | 0.3798 | -1375.6 | -424.3 | |
| 0.00 | 1.91 | 0.00 | 1.03 | 9.02 | 203.52 | -22.91 | 75.55 | 0.3987 | -853.0 | -675.1 | |
| 0.00 | 0.82 | 0.00 | 0.44 | 7.49 | 203.51 | -22.92 | 79.37 | 0.3945 | -594.0 | -419.9 | |
| 0.00 | 2.00 | 0.00 | 1.08 | 8.43 | 203.15 | -23.28 | 77.18 | 0.4026 | -922.0 | -671.3 | |
| 0.00 | 0.54 | 0.00 | 0.29 | 8.55 | 203.04 | -23.38 | 76.93 | 0.4046 | -797.0 | -593.2 | |
| 0.00 | 1.09 | 0.00 | 0.61 | 5.79 | 197.94 | -28.49 | 84.53 | 0.4786 | 745.0 | 619.8 | |
| 0.00 | 1.18 | 0.00 | 0.67 | 6.66 | 197.29 | -29.13 | 82.82 | 0.4893 | 765.0 | 638.5 | |
| 0.00 | 2.45 | 0.00 | 1.39 | 7.51 | 197.13 | -29.30 | 81.12 | 0.4930 | 656.0 | 451.3 | |
| 0.00 | 1.00 | 0.00 | 0.57 | 9.03 | 196.93 | -29.49 | 78.11 | 0.4988 | 493.0 | 461.1 | |
| 0.00 | 0.54 | 0.00 | 0.31 | 6.50 | 197.13 | -29.30 | 83.17 | 0.4917 | 672.0 | 525.5 | |
| 0.00 | 1.91 | 0.00 | 1.09 | 9.00 | 196.72 | -29.70 | 78.24 | 0.5019 | 623.0 | 510.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
