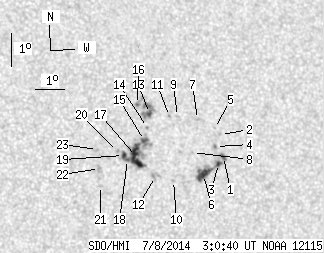

SDO HMI 2014-07-08 03:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 35.61 | 113.62 | 19.64 | 62.62 | 7.17 | 252.20 | 25.77 | 279.00 | 0.4387 | 119.3 | 196.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-08 03:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.54 | 25.71 | 0.87 | 14.36 | 6.96 | 254.43 | 28.01 | 278.01 | 0.4726 | -892.8 | -711.0 | |
| 0.00 | 1.36 | 0.00 | 0.77 | 7.64 | 254.38 | 27.95 | 279.45 | 0.4728 | -603.0 | -523.5 | |
| 2.27 | -1.00 | 1.27 | -1.00 | 6.75 | 254.25 | 27.82 | 277.60 | 0.4695 | -972.6 | 999999 | |
| 0.00 | 1.63 | 0.00 | 0.92 | 7.27 | 254.18 | 27.75 | 278.73 | 0.4692 | -900.0 | -779.2 | |
| 0.00 | 0.91 | 0.00 | 0.51 | 7.83 | 254.18 | 27.76 | 279.90 | 0.4702 | -398.0 | -418.1 | |
| 9.36 | -1.00 | 5.22 | -1.00 | 6.43 | 253.71 | 27.28 | 277.01 | 0.4608 | -1008.3 | 999999 | |
| 0.00 | 1.27 | 0.00 | 0.71 | 8.12 | 253.61 | 27.19 | 280.68 | 0.4622 | -789.0 | -616.7 | |
| 0.00 | 0.64 | 0.00 | 0.35 | 7.12 | 253.37 | 26.94 | 278.57 | 0.4566 | -812.0 | -671.7 | |
| 0.00 | 1.09 | 0.00 | 0.60 | 8.23 | 252.93 | 26.50 | 281.13 | 0.4520 | -345.0 | -264.7 | |
| 0.00 | 1.36 | 0.00 | 0.75 | 6.28 | 252.67 | 26.24 | 276.86 | 0.4445 | -696.0 | -538.1 | |
| 0.00 | 1.18 | 0.00 | 0.65 | 8.24 | 252.66 | 26.23 | 281.24 | 0.4478 | 479.0 | 304.9 | |
| 0.00 | 6.27 | 0.00 | 3.45 | 6.42 | 252.06 | 25.63 | 277.29 | 0.4352 | 150.0 | 74.8 | |
| 2.18 | 13.35 | 1.20 | 7.35 | 8.35 | 251.98 | 25.55 | 281.72 | 0.4376 | 799.1 | 789.6 | |
| 0.00 | 0.91 | 0.00 | 0.50 | 7.92 | 251.88 | 25.45 | 280.78 | 0.4351 | 810.0 | 725.0 | |
| 2.09 | 45.60 | 1.15 | 24.97 | 7.53 | 251.75 | 25.33 | 279.92 | 0.4323 | 744.0 | 401.1 | |
| 0.36 | 4.81 | 0.20 | 2.64 | 8.63 | 251.59 | 25.16 | 282.51 | 0.4324 | 1079.0 | 765.0 | |
| 14.81 | -15.00 | 8.10 | -15.00 | 7.05 | 251.45 | 25.02 | 278.89 | 0.4267 | 837.1 | 999999 | |
| 1.09 | -15.00 | 0.59 | -15.00 | 6.96 | 251.14 | 24.71 | 278.77 | 0.4217 | 867.0 | 999999 | |
| 1.91 | -15.00 | 1.04 | -15.00 | 7.09 | 251.01 | 24.59 | 279.11 | 0.4199 | 1059.4 | 999999 | |
| 0.00 | 1.36 | 0.00 | 0.74 | 7.22 | 250.82 | 24.39 | 279.47 | 0.4171 | 887.0 | 755.1 | |
| 0.00 | 1.45 | 0.00 | 0.79 | 6.20 | 250.19 | 23.76 | 277.15 | 0.4054 | 546.0 | 564.7 | |
| 0.00 | 3.81 | 0.00 | 2.07 | 6.72 | 250.18 | 23.76 | 278.43 | 0.4062 | 871.0 | 717.2 | |
| 0.00 | 0.91 | 0.00 | 0.49 | 7.30 | 250.15 | 23.72 | 279.86 | 0.4067 | 705.0 | 630.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
