SDO HMI 2014-07-08 04:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 47.79 | 256.10 | 29.71 | 158.23 | 14.91 | 261.10 | 35.23 | 290.45 | 0.5963 | -454.8 | -257.6 | |
|
previous
or next observation for the same group /

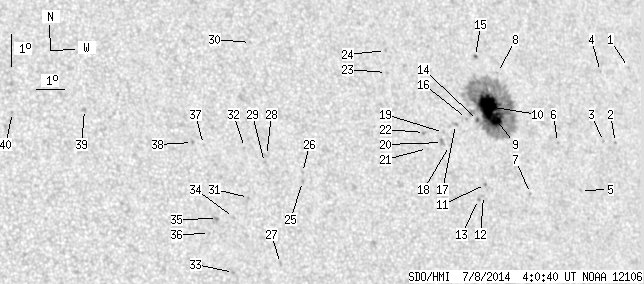

back to the solar disc SDO HMI 2014-07-08 04:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.27 | 0.00 | 0.86 | 16.17 | 267.69 | 41.81 | 289.96 | 0.6835 | -142.0 | -196.4 | |
| 0.00 | 0.73 | 0.00 | 0.48 | 13.87 | 266.59 | 40.71 | 286.92 | 0.6642 | -592.0 | -531.9 | |
| 0.00 | 0.82 | 0.00 | 0.54 | 13.92 | 266.11 | 40.23 | 287.13 | 0.6582 | -705.0 | -569.0 | |
| 0.00 | 0.73 | 0.00 | 0.48 | 16.09 | 266.48 | 40.60 | 290.23 | 0.6687 | -568.0 | -480.9 | |
| 0.00 | 1.09 | 0.00 | 0.70 | 12.45 | 264.88 | 39.00 | 285.21 | 0.6391 | -494.0 | -480.8 | |
| 0.00 | 1.18 | 0.00 | 0.76 | 13.96 | 264.24 | 38.36 | 287.74 | 0.6346 | -441.0 | -403.5 | |
| 0.00 | 1.27 | 0.00 | 0.80 | 12.43 | 262.89 | 37.01 | 285.72 | 0.6129 | -685.0 | -548.1 | |
| 0.00 | 0.73 | 0.00 | 0.46 | 16.22 | 262.32 | 36.44 | 291.96 | 0.6172 | -548.0 | -446.9 | |
| 12.26 | 212.39 | 7.64 | 132.23 | 14.77 | 261.98 | 36.10 | 289.78 | 0.6077 | -944.4 | -308.9 | |
| 34.16 | -9.00 | 21.23 | -9.00 | 15.18 | 261.71 | 35.83 | 290.55 | 0.6056 | -1118.5 | 999999 | |
| 0.00 | 1.09 | 0.00 | 0.67 | 12.77 | 261.20 | 35.32 | 286.81 | 0.5912 | -794.0 | -676.3 | |
| 0.00 | 0.73 | 0.00 | 0.44 | 12.44 | 261.07 | 35.19 | 286.29 | 0.5885 | -642.0 | -572.2 | |
| 0.00 | 1.36 | 0.00 | 0.83 | 12.32 | 260.86 | 34.98 | 286.16 | 0.5853 | -783.0 | -665.7 | |
| 0.82 | -9.00 | 0.50 | -9.00 | 14.76 | 261.24 | 35.36 | 290.06 | 0.5980 | -740.0 | 999999 | |
| 0.55 | 1.45 | 0.34 | 0.91 | 16.75 | 261.57 | 35.69 | 293.11 | 0.6096 | -611.2 | -592.6 | |
| 0.00 | 0.91 | 0.00 | 0.56 | 14.84 | 260.83 | 34.95 | 290.35 | 0.5929 | -745.0 | -623.8 | |
| 0.00 | 2.18 | 0.00 | 1.33 | 14.67 | 260.38 | 34.50 | 290.26 | 0.5862 | -790.0 | -720.2 | |
| 0.00 | 0.64 | 0.00 | 0.39 | 14.03 | 260.03 | 34.16 | 289.33 | 0.5794 | -429.0 | -357.1 | |
| 0.00 | 1.18 | 0.00 | 0.72 | 14.44 | 259.88 | 34.00 | 290.08 | 0.5788 | -541.0 | -502.5 | |
| 0.00 | 3.27 | 0.00 | 1.98 | 14.13 | 259.79 | 33.91 | 289.60 | 0.5764 | -789.0 | -626.0 | |
| 0.00 | 1.45 | 0.00 | 0.87 | 13.96 | 259.19 | 33.31 | 289.57 | 0.5678 | -649.0 | -563.4 | |
| 0.00 | 1.45 | 0.00 | 0.87 | 14.46 | 259.16 | 33.28 | 290.44 | 0.5692 | -772.0 | -648.6 | |
| 0.00 | 1.27 | 0.00 | 0.76 | 16.37 | 258.07 | 32.20 | 294.22 | 0.5627 | 649.0 | 520.4 | |
| 0.00 | 1.09 | 0.00 | 0.65 | 17.06 | 258.17 | 32.29 | 295.32 | 0.5671 | 701.0 | 541.2 | |
| 0.00 | 0.82 | 0.00 | 0.47 | 13.09 | 254.48 | 28.61 | 290.24 | 0.4990 | 772.0 | 619.8 | |
| 0.00 | 0.91 | 0.00 | 0.52 | 13.37 | 254.52 | 28.64 | 290.76 | 0.5007 | 515.0 | 418.4 | |
| 0.00 | 1.45 | 0.00 | 0.82 | 10.60 | 253.42 | 27.54 | 285.77 | 0.4742 | 556.0 | 482.2 | |
| 0.00 | 1.82 | 0.00 | 1.03 | 13.94 | 253.31 | 27.44 | 292.57 | 0.4862 | 791.0 | 627.5 | |
| 0.00 | 1.45 | 0.00 | 0.82 | 13.72 | 253.22 | 27.34 | 292.21 | 0.4838 | 712.0 | 526.2 | |
| 0.00 | 0.73 | 0.00 | 0.42 | 17.47 | 253.26 | 27.39 | 299.28 | 0.5050 | 500.0 | 310.0 | |
| 0.00 | 1.00 | 0.00 | 0.56 | 12.66 | 252.52 | 26.65 | 290.49 | 0.4690 | 752.0 | 593.9 | |
| 0.00 | 0.82 | 0.00 | 0.46 | 14.21 | 252.57 | 26.69 | 293.58 | 0.4771 | 796.0 | 684.9 | |
| 0.00 | 0.82 | 0.00 | 0.45 | 10.37 | 251.77 | 25.89 | 286.05 | 0.4488 | 866.0 | 731.9 | |
| 0.00 | 0.91 | 0.00 | 0.51 | 12.06 | 251.93 | 26.06 | 289.59 | 0.4578 | 709.0 | 583.5 | |
| 0.00 | 1.00 | 0.00 | 0.55 | 12.04 | 251.38 | 25.50 | 289.89 | 0.4496 | 876.0 | 798.0 | |
| 0.00 | 0.55 | 0.00 | 0.30 | 11.59 | 251.06 | 25.18 | 289.10 | 0.4429 | 821.0 | 641.3 | |
| 0.00 | 0.82 | 0.00 | 0.46 | 14.34 | 251.15 | 25.27 | 294.87 | 0.4578 | 655.0 | 536.9 | |
| 0.00 | 1.09 | 0.00 | 0.61 | 14.41 | 250.78 | 24.90 | 295.30 | 0.4529 | 658.0 | 641.6 | |
| 0.00 | 2.27 | 0.00 | 1.23 | 15.53 | 247.20 | 21.32 | 300.99 | 0.4104 | 905.0 | 726.6 | |
| 0.00 | 1.36 | 0.00 | 0.73 | 15.49 | 244.77 | 18.89 | 303.80 | 0.3770 | 686.0 | 438.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
