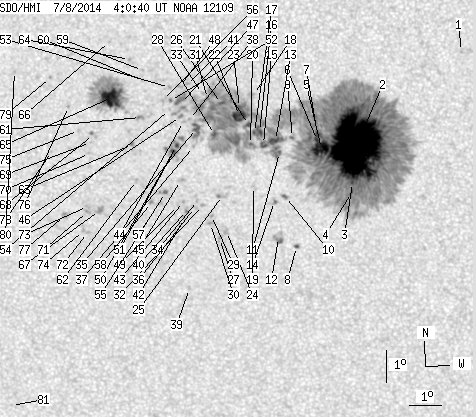

SDO HMI 2014-07-08 04:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 311.41 | 1847.53 | 158.15 | 939.75 | -7.88 | 220.63 | -5.25 | 156.22 | 0.2231 | 727.8 | 209.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-08 04:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.27 | 0.00 | 0.64 | -5.05 | 225.35 | -0.53 | 176.51 | 0.1518 | 743.0 | 599.8 | |
| 211.21 | 1587.27 | 107.06 | 805.90 | -7.96 | 222.11 | -3.77 | 162.03 | 0.2120 | 1750.1 | 360.4 | |
| 1.00 | -2.00 | 0.51 | -2.00 | -9.12 | 221.97 | -3.91 | 163.03 | 0.2315 | 977.5 | 999999 | |
| 2.63 | -2.00 | 1.34 | -2.00 | -9.43 | 221.94 | -3.94 | 163.29 | 0.2368 | 700.0 | 999999 | |
| 16.62 | -2.00 | 8.44 | -2.00 | -8.06 | 221.03 | -4.85 | 157.52 | 0.2200 | 1227.8 | 999999 | |
| 2.27 | -2.00 | 1.15 | -2.00 | -7.81 | 220.91 | -4.97 | 156.57 | 0.2169 | 1157.6 | 999999 | |
| 3.00 | -2.00 | 1.52 | -2.00 | -7.63 | 220.91 | -4.97 | 156.23 | 0.2139 | 1071.4 | 999999 | |
| 1.00 | 2.36 | 0.51 | 1.22 | -11.13 | 220.20 | -5.68 | 159.12 | 0.2736 | -899.1 | -680.3 | |
| 0.45 | -2.00 | 0.23 | -2.00 | -7.72 | 220.14 | -5.74 | 153.23 | 0.2211 | 1068.0 | 999999 | |
| 0.00 | 2.63 | 0.00 | 1.35 | -9.56 | 219.89 | -5.99 | 155.70 | 0.2512 | 1067.0 | 818.6 | |
| 0.73 | -2.00 | 0.37 | -2.00 | -8.19 | 219.73 | -6.15 | 152.58 | 0.2314 | 1152.6 | 999999 | |
| 0.00 | 9.72 | 0.00 | 5.00 | -10.85 | 219.64 | -6.23 | 156.87 | 0.2727 | -882.0 | -740.7 | |
| 7.36 | -2.00 | 3.74 | -2.00 | -7.82 | 219.61 | -6.27 | 151.36 | 0.2267 | 1219.1 | 999999 | |
| 0.36 | 1.73 | 0.19 | 0.88 | -9.72 | 219.54 | -6.34 | 154.74 | 0.2560 | 804.8 | 589.4 | |
| 3.09 | -2.00 | 1.57 | -2.00 | -7.95 | 219.23 | -6.64 | 150.22 | 0.2317 | 991.2 | 999999 | |
| 4.91 | -2.00 | 2.49 | -2.00 | -7.54 | 219.12 | -6.76 | 148.88 | 0.2268 | 1002.2 | 999999 | |
| 1.36 | -2.00 | 0.69 | -2.00 | -7.57 | 218.96 | -6.92 | 148.38 | 0.2286 | 866.0 | 999999 | |
| 0.00 | 1.18 | 0.00 | 0.60 | -6.40 | 218.95 | -6.93 | 145.38 | 0.2119 | -722.0 | -400.7 | |
| 0.00 | 1.09 | 0.00 | 0.56 | -9.26 | 218.90 | -6.98 | 151.68 | 0.2539 | -761.0 | -526.5 | |
| 0.64 | -2.00 | 0.32 | -2.00 | -7.95 | 218.83 | -7.05 | 148.75 | 0.2352 | 928.1 | 999999 | |
| 2.00 | -2.00 | 1.02 | -2.00 | -7.33 | 218.78 | -7.10 | 147.12 | 0.2267 | 1068.7 | 999999 | |
| 11.99 | -2.00 | 6.10 | -2.00 | -7.05 | 218.51 | -7.37 | 145.43 | 0.2254 | 1143.6 | 999999 | |
| 1.82 | -2.00 | 0.92 | -2.00 | -6.80 | 218.51 | -7.37 | 144.81 | 0.2219 | 1016.2 | 999999 | |
| 0.00 | 3.54 | 0.00 | 1.83 | -10.67 | 218.02 | -7.86 | 151.41 | 0.2819 | -724.0 | -653.6 | |
| 0.00 | 5.54 | 0.00 | 2.85 | -9.55 | 217.93 | -7.95 | 149.03 | 0.2663 | -624.0 | -666.0 | |
| 1.91 | -2.00 | 0.97 | -2.00 | -6.68 | 217.96 | -7.92 | 142.50 | 0.2259 | 679.3 | 999999 | |
| 0.00 | 2.91 | 0.00 | 1.50 | -10.90 | 217.80 | -8.08 | 151.11 | 0.2870 | -969.0 | -718.8 | |
| 2.27 | -2.00 | 1.16 | -2.00 | -7.65 | 217.72 | -8.16 | 144.18 | 0.2414 | -977.0 | 999999 | |
| 0.00 | 1.00 | 0.00 | 0.52 | -10.18 | 217.57 | -8.31 | 149.12 | 0.2785 | -783.0 | -709.3 | |
| 0.00 | 2.54 | 0.00 | 1.31 | -10.43 | 217.53 | -8.35 | 149.47 | 0.2824 | -973.0 | -802.9 | |
| 0.64 | -2.00 | 0.32 | -2.00 | -6.53 | 217.53 | -8.35 | 140.60 | 0.2284 | 491.7 | 999999 | |
| 0.00 | 1.73 | 0.00 | 0.89 | -9.86 | 217.29 | -8.58 | 147.70 | 0.2764 | -917.0 | -606.1 | |
| 0.00 | 1.27 | 0.00 | 0.65 | -6.38 | 217.37 | -8.51 | 139.66 | 0.2281 | 9.0 | 36.4 | |
| 0.00 | 1.73 | 0.00 | 0.89 | -9.71 | 217.14 | -8.74 | 146.93 | 0.2756 | -816.0 | -595.6 | |
| 4.09 | -2.00 | 2.09 | -2.00 | -7.46 | 217.17 | -8.71 | 141.92 | 0.2446 | -1027.0 | 999999 | |
| 0.00 | 2.73 | 0.00 | 1.41 | -9.93 | 217.04 | -8.84 | 147.08 | 0.2796 | -719.0 | -644.8 | |
| 0.00 | 1.27 | 0.00 | 0.65 | -8.02 | 217.06 | -8.82 | 142.97 | 0.2532 | -667.0 | -568.6 | |
| 0.00 | 1.27 | 0.00 | 0.65 | -7.19 | 216.95 | -8.92 | 140.52 | 0.2432 | -874.0 | -682.9 | |
| 0.00 | 1.82 | 0.00 | 0.95 | -12.49 | 216.80 | -9.08 | 150.90 | 0.3181 | -725.0 | -439.6 | |
| 0.00 | 2.63 | 0.00 | 1.36 | -10.03 | 216.79 | -9.09 | 146.53 | 0.2833 | -1069.0 | -881.2 | |
| 0.00 | 2.00 | 0.00 | 1.02 | -6.10 | 216.88 | -9.00 | 137.26 | 0.2301 | -911.0 | -780.5 | |
| 0.00 | 2.54 | 0.00 | 1.32 | -10.28 | 216.72 | -9.16 | 146.82 | 0.2875 | -664.0 | -512.8 | |
| 0.00 | 1.09 | 0.00 | 0.56 | -9.74 | 216.70 | -9.18 | 145.71 | 0.2802 | -1055.0 | -854.8 | |
| 0.00 | 1.54 | 0.00 | 0.79 | -7.25 | 216.77 | -9.11 | 140.10 | 0.2460 | -929.0 | -757.2 | |
| 0.00 | 3.36 | 0.00 | 1.73 | -9.09 | 216.63 | -9.25 | 144.10 | 0.2719 | -868.0 | -585.9 | |
| 0.00 | 2.00 | 0.00 | 1.02 | -7.10 | 216.68 | -9.20 | 139.42 | 0.2450 | -1030.0 | -864.2 | |
| 0.00 | 18.26 | 0.00 | 9.31 | -6.69 | 216.68 | -9.19 | 138.34 | 0.2398 | -786.0 | -913.8 | |
| 0.00 | 2.18 | 0.00 | 1.11 | -6.17 | 216.66 | -9.21 | 136.76 | 0.2334 | -958.0 | -791.4 | |
| 0.00 | 1.00 | 0.00 | 0.52 | -9.87 | 216.51 | -9.37 | 145.42 | 0.2838 | -749.0 | -584.7 | |
| 1.45 | 24.71 | 0.75 | 12.67 | -8.00 | 216.53 | -9.35 | 141.29 | 0.2583 | -1202.8 | -814.8 | |
| 2.45 | -50.00 | 1.26 | -50.00 | -8.19 | 216.43 | -9.45 | 141.45 | 0.2618 | -1080.0 | 999999 | |
| 0.00 | 1.00 | 0.00 | 0.51 | -6.60 | 216.37 | -9.50 | 137.14 | 0.2422 | -1180.0 | -1091.5 | |
| 0.00 | 1.73 | 0.00 | 0.88 | -6.20 | 216.35 | -9.53 | 135.91 | 0.2375 | -1096.0 | -875.5 | |
| 0.00 | 1.00 | 0.00 | 0.51 | -6.88 | 216.34 | -9.54 | 137.81 | 0.2461 | -920.0 | -691.6 | |
| 0.82 | 3.72 | 0.42 | 1.92 | -9.47 | 216.15 | -9.73 | 143.54 | 0.2818 | -1141.0 | -852.0 | |
| 0.00 | 1.45 | 0.00 | 0.74 | -6.60 | 216.13 | -9.75 | 136.41 | 0.2451 | -990.0 | -853.8 | |
| 0.00 | 2.36 | 0.00 | 1.22 | -9.81 | 215.92 | -9.96 | 143.64 | 0.2888 | -546.0 | -503.2 | |
| 0.00 | 1.82 | 0.00 | 0.94 | -9.79 | 215.70 | -10.18 | 142.98 | 0.2906 | -921.0 | -762.7 | |
| 0.00 | 1.36 | 0.00 | 0.70 | -5.68 | 215.52 | -10.36 | 131.95 | 0.2416 | -882.0 | -687.2 | |
| 0.00 | 0.82 | 0.00 | 0.42 | -5.99 | 215.52 | -10.36 | 132.88 | 0.2452 | -887.0 | -727.7 | |
| 0.00 | 3.45 | 0.00 | 1.77 | -7.14 | 215.43 | -10.45 | 135.91 | 0.2598 | -1057.0 | -890.0 | |
| 0.00 | 1.64 | 0.00 | 0.85 | -9.10 | 215.25 | -10.63 | 140.29 | 0.2863 | -964.0 | -753.3 | |
| 0.00 | 2.45 | 0.00 | 1.26 | -7.98 | 215.16 | -10.72 | 137.37 | 0.2732 | -1175.0 | -876.4 | |
| 0.00 | 0.82 | 0.00 | 0.42 | -5.35 | 215.12 | -10.75 | 129.82 | 0.2430 | -931.0 | -824.3 | |
| 25.34 | 100.38 | 13.01 | 51.55 | -6.53 | 214.54 | -11.34 | 131.87 | 0.2635 | -1284.2 | -517.5 | |
| 0.00 | 1.00 | 0.00 | 0.51 | -4.80 | 214.51 | -11.37 | 126.50 | 0.2454 | -861.0 | -724.2 | |
| 0.00 | 5.18 | 0.00 | 2.70 | -10.05 | 214.05 | -11.83 | 139.37 | 0.3113 | -1014.0 | -843.7 | |
| 0.00 | 3.36 | 0.00 | 1.74 | -7.68 | 213.94 | -11.94 | 133.54 | 0.2840 | -1010.0 | -725.1 | |
| 0.00 | 0.55 | 0.00 | 0.28 | -7.93 | 213.84 | -12.04 | 133.93 | 0.2881 | -724.0 | -631.8 | |
| 0.00 | 1.00 | 0.00 | 0.52 | -8.28 | 213.80 | -12.08 | 134.69 | 0.2926 | -632.0 | -549.5 | |
| 0.00 | 2.45 | 0.00 | 1.28 | -10.09 | 213.67 | -12.21 | 138.55 | 0.3159 | -816.0 | -741.1 | |
| 0.00 | 1.54 | 0.00 | 0.81 | -10.75 | 213.64 | -12.24 | 139.86 | 0.3244 | -781.0 | -574.8 | |
| 0.00 | 1.91 | 0.00 | 0.99 | -9.93 | 213.67 | -12.20 | 138.22 | 0.3139 | -826.0 | -781.7 | |
| 0.00 | 1.64 | 0.00 | 0.86 | -10.69 | 213.52 | -12.36 | 139.45 | 0.3250 | -846.0 | -657.3 | |
| 0.00 | 1.27 | 0.00 | 0.66 | -7.56 | 213.47 | -12.41 | 132.13 | 0.2884 | -828.0 | -649.1 | |
| 0.00 | 0.82 | 0.00 | 0.42 | -6.82 | 213.18 | -12.70 | 129.49 | 0.2841 | -794.0 | -675.2 | |
| 0.00 | 3.63 | 0.00 | 1.90 | -10.23 | 212.93 | -12.95 | 137.17 | 0.3257 | -832.0 | -756.8 | |
| 0.00 | 0.27 | 0.00 | 0.14 | -8.23 | 212.60 | -13.28 | 131.88 | 0.3067 | -749.0 | -723.0 | |
| 0.00 | 0.91 | 0.00 | 0.47 | -5.93 | 212.64 | -13.24 | 125.82 | 0.2822 | -857.0 | -726.0 | |
| 0.00 | 1.09 | 0.00 | 0.57 | -5.76 | 211.51 | -14.37 | 123.14 | 0.2962 | -751.0 | -647.8 | |
| 0.00 | 1.00 | 0.00 | 0.55 | -16.31 | 210.85 | -15.03 | 143.72 | 0.4222 | -670.0 | -450.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
