SDO HMI 2014-07-08 04:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.73 | 23.61 | 1.59 | 14.25 | -21.43 | 201.52 | -24.36 | 137.94 | 0.5720 | 137.1 | 15.8 | |
|
previous
or next observation for the same group /

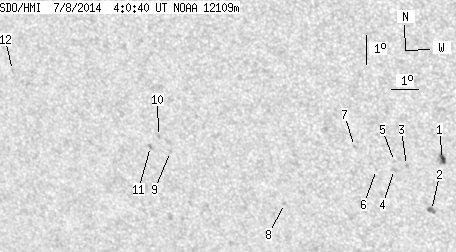

back to the solar disc SDO HMI 2014-07-08 04:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.73 | 6.72 | 1.59 | 3.92 | -21.20 | 205.44 | -20.44 | 141.96 | 0.5304 | 872.2 | 654.7 | |
| 0.00 | 3.91 | 0.00 | 2.32 | -22.93 | 204.78 | -21.10 | 143.21 | 0.5557 | -908.0 | -746.0 | |
| 0.00 | 1.45 | 0.00 | 0.86 | -21.43 | 204.14 | -21.74 | 140.57 | 0.5450 | 721.0 | 640.0 | |
| 0.00 | 2.45 | 0.00 | 1.45 | -21.57 | 203.69 | -22.19 | 140.19 | 0.5507 | 757.0 | 583.5 | |
| 0.00 | 0.64 | 0.00 | 0.38 | -21.30 | 203.73 | -22.14 | 139.91 | 0.5474 | 662.0 | 472.4 | |
| 0.00 | 0.27 | 0.00 | 0.16 | -21.59 | 203.05 | -22.83 | 139.43 | 0.5569 | 626.0 | 618.7 | |
| 0.00 | 1.00 | 0.00 | 0.59 | -20.83 | 202.39 | -23.49 | 137.69 | 0.5554 | 634.0 | 501.3 | |
| 0.00 | 1.36 | 0.00 | 0.84 | -22.83 | 199.47 | -26.40 | 137.00 | 0.6032 | 679.0 | 563.9 | |
| 0.00 | 1.00 | 0.00 | 0.63 | -21.20 | 195.57 | -30.31 | 131.19 | 0.6275 | -669.0 | -522.9 | |
| 0.00 | 1.18 | 0.00 | 0.75 | -20.71 | 195.23 | -30.65 | 130.26 | 0.6271 | -743.0 | -546.0 | |
| 0.00 | 2.36 | 0.00 | 1.51 | -21.05 | 194.84 | -31.04 | 130.37 | 0.6339 | -698.0 | -555.4 | |
| 0.00 | 1.27 | 0.00 | 0.84 | -18.71 | 190.03 | -35.84 | 123.61 | 0.6683 | -722.0 | -548.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
