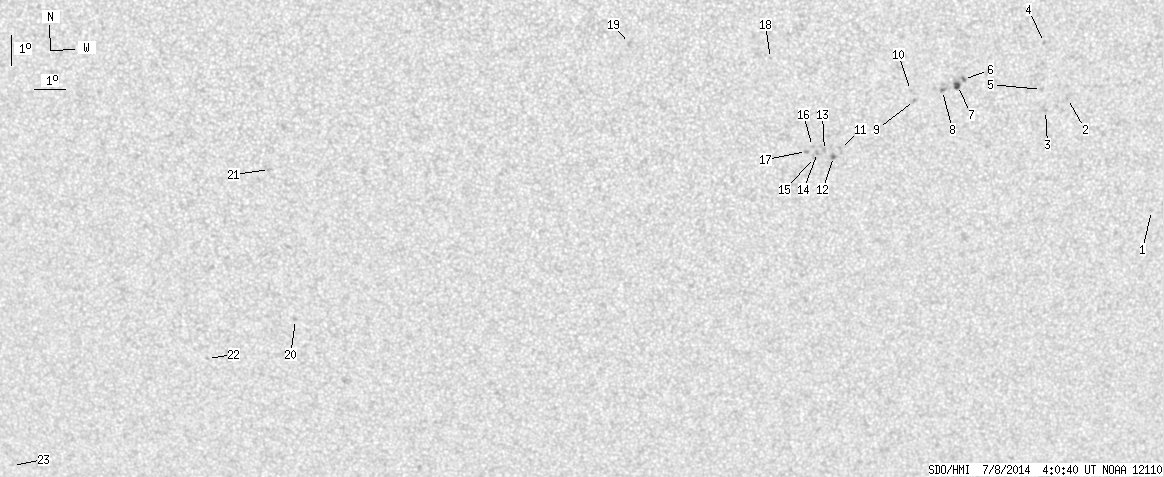

SDO HMI 2014-07-08 04:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.63 | 41.34 | 1.94 | 22.28 | -17.01 | 232.40 | 6.52 | 197.98 | 0.3920 | -54.7 | -104.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-08 04:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.36 | 0.00 | 0.77 | -19.52 | 243.77 | 17.89 | 216.57 | 0.4878 | 718.0 | 608.0 | |
| 0.00 | 1.00 | 0.00 | 0.54 | -15.79 | 240.62 | 14.74 | 216.53 | 0.4131 | 749.0 | 609.8 | |
| 0.00 | 1.36 | 0.00 | 0.74 | -16.17 | 239.93 | 14.05 | 214.69 | 0.4114 | 731.0 | 593.5 | |
| 0.00 | 1.27 | 0.00 | 0.68 | -13.98 | 239.75 | 13.87 | 217.73 | 0.3818 | 848.0 | 668.1 | |
| 0.00 | 1.73 | 0.00 | 0.93 | -15.49 | 239.75 | 13.87 | 215.35 | 0.4010 | 892.0 | 651.2 | |
| 0.45 | 2.27 | 0.24 | 1.21 | -15.13 | 237.20 | 11.32 | 210.61 | 0.3738 | 982.2 | 794.2 | |
| 2.63 | 5.81 | 1.41 | 3.10 | -15.32 | 237.02 | 11.14 | 209.94 | 0.3749 | 964.4 | 536.7 | |
| 0.00 | 1.82 | 0.00 | 0.97 | -15.47 | 236.54 | 10.66 | 208.67 | 0.3733 | 921.0 | 776.0 | |
| 0.00 | 2.00 | 0.00 | 1.07 | -15.78 | 235.66 | 9.78 | 206.25 | 0.3711 | 838.0 | 655.7 | |
| 0.00 | 0.73 | 0.00 | 0.39 | -15.46 | 235.51 | 9.64 | 206.32 | 0.3654 | 759.0 | 660.9 | |
| 0.00 | 2.73 | 0.00 | 1.46 | -17.35 | 233.35 | 7.47 | 199.14 | 0.3800 | -809.0 | -692.8 | |
| 0.55 | 2.09 | 0.29 | 1.12 | -17.57 | 233.13 | 7.25 | 198.42 | 0.3823 | -900.5 | -819.2 | |
| 0.00 | 1.73 | 0.00 | 0.92 | -17.38 | 232.83 | 6.95 | 197.89 | 0.3778 | -838.0 | -689.8 | |
| 0.00 | 2.18 | 0.00 | 1.17 | -17.44 | 232.61 | 6.73 | 197.30 | 0.3777 | -857.0 | -799.3 | |
| 0.00 | 2.18 | 0.00 | 1.17 | -17.60 | 232.52 | 6.64 | 196.95 | 0.3797 | -552.0 | -626.2 | |
| 0.00 | 1.09 | 0.00 | 0.58 | -17.24 | 232.44 | 6.56 | 197.05 | 0.3738 | -713.0 | -623.8 | |
| 0.00 | 1.73 | 0.00 | 0.92 | -17.40 | 232.25 | 6.38 | 196.47 | 0.3754 | -954.0 | -798.9 | |
| 0.00 | 1.00 | 0.00 | 0.52 | -14.38 | 231.02 | 5.15 | 195.70 | 0.3224 | -791.0 | -554.3 | |
| 0.00 | 2.45 | 0.00 | 1.27 | -13.88 | 226.58 | 0.70 | 182.26 | 0.3025 | -759.0 | -663.9 | |
| 0.00 | 1.45 | 0.00 | 0.82 | -23.03 | 215.49 | -10.39 | 159.65 | 0.4794 | -803.0 | -636.4 | |
| 0.00 | 1.54 | 0.00 | 0.84 | -18.02 | 214.98 | -10.89 | 153.96 | 0.4110 | -846.0 | -632.1 | |
| 0.00 | 1.00 | 0.00 | 0.58 | -24.40 | 212.36 | -13.52 | 155.56 | 0.5165 | -669.0 | -546.9 | |
| 0.00 | 0.82 | 0.00 | 0.51 | -28.32 | 204.79 | -21.09 | 148.91 | 0.6157 | -590.0 | -425.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
