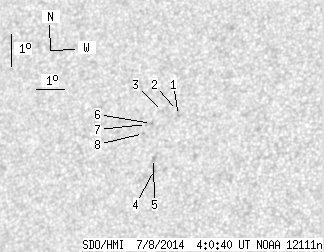

SDO HMI 2014-07-08 04:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 12.36 | 0.00 | 6.98 | 17.09 | 200.09 | -25.79 | 60.13 | 0.4815 | -685.0 | -562.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-08 04:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.18 | 0.00 | 0.67 | 17.84 | 200.76 | -25.12 | 58.13 | 0.4777 | -822.0 | -660.9 | |
| 0.00 | 0.73 | 0.00 | 0.41 | 18.00 | 200.70 | -25.18 | 57.89 | 0.4796 | -448.0 | -362.6 | |
| 0.00 | 1.18 | 0.00 | 0.67 | 17.95 | 200.18 | -25.70 | 58.44 | 0.4861 | -653.0 | -493.3 | |
| 0.00 | 2.54 | 0.00 | 1.43 | 16.13 | 200.16 | -25.72 | 61.90 | 0.4744 | -792.0 | -626.6 | |
| 0.00 | 2.73 | 0.00 | 1.53 | 16.48 | 200.08 | -25.80 | 61.31 | 0.4777 | -676.0 | -568.9 | |
| 0.00 | 1.73 | 0.00 | 0.98 | 17.57 | 199.84 | -26.03 | 59.44 | 0.4879 | -745.0 | -591.8 | |
| 0.00 | 1.18 | 0.00 | 0.67 | 17.53 | 199.67 | -26.21 | 59.66 | 0.4899 | -641.0 | -479.9 | |
| 0.00 | 1.09 | 0.00 | 0.62 | 17.25 | 199.61 | -26.27 | 60.24 | 0.4889 | -703.0 | -541.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
