SDO HMI 2014-07-08 05:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 44.15 | 264.48 | 27.63 | 164.02 | 14.81 | 260.85 | 35.52 | 290.14 | 0.5999 | -414.5 | -243.9 | |
|
previous
or next observation for the same group /

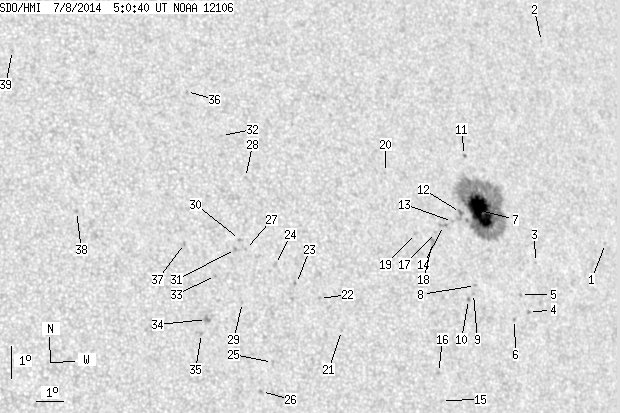

back to the solar disc SDO HMI 2014-07-08 05:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.18 | 0.00 | 0.79 | 13.85 | 266.63 | 41.30 | 286.73 | 0.6714 | -605.0 | -498.3 | |
| 0.00 | 0.91 | 0.00 | 0.61 | 20.26 | 265.64 | 40.31 | 296.32 | 0.6793 | -419.0 | -320.2 | |
| 0.00 | 0.91 | 0.00 | 0.58 | 13.38 | 263.66 | 38.33 | 286.83 | 0.6327 | -575.0 | -484.1 | |
| 0.00 | 1.36 | 0.00 | 0.86 | 11.85 | 263.11 | 37.78 | 284.58 | 0.6218 | -702.0 | -612.0 | |
| 0.00 | 1.27 | 0.00 | 0.80 | 12.42 | 262.89 | 37.56 | 285.54 | 0.6202 | -652.0 | -495.1 | |
| 0.00 | 0.91 | 0.00 | 0.57 | 11.66 | 262.53 | 37.20 | 284.42 | 0.6136 | -739.0 | -632.2 | |
| 43.33 | 207.77 | 27.12 | 130.31 | 15.07 | 261.77 | 36.44 | 290.13 | 0.6131 | -1112.7 | -308.2 | |
| 0.00 | 1.00 | 0.00 | 0.62 | 12.76 | 261.19 | 35.86 | 286.60 | 0.5984 | -837.0 | -685.5 | |
| 0.00 | 1.00 | 0.00 | 0.62 | 12.52 | 261.07 | 35.75 | 286.24 | 0.5962 | -801.0 | -660.4 | |
| 0.00 | 1.45 | 0.00 | 0.89 | 12.34 | 260.85 | 35.52 | 286.01 | 0.5927 | -777.0 | -714.9 | |
| 0.00 | 1.18 | 0.00 | 0.74 | 16.80 | 261.55 | 36.22 | 292.95 | 0.6165 | -687.0 | -633.2 | |
| 0.82 | 5.45 | 0.51 | 3.38 | 15.04 | 261.02 | 35.69 | 290.37 | 0.6032 | -822.7 | -728.0 | |
| 0.00 | 0.91 | 0.00 | 0.56 | 14.77 | 260.66 | 35.33 | 290.08 | 0.5976 | -843.0 | -740.4 | |
| 0.00 | 3.09 | 0.00 | 1.90 | 14.66 | 260.29 | 34.96 | 290.05 | 0.5923 | -794.0 | -703.6 | |
| 0.00 | 1.18 | 0.00 | 0.71 | 9.28 | 259.42 | 34.09 | 281.16 | 0.5659 | 659.0 | 504.0 | |
| 0.00 | 1.82 | 0.00 | 1.09 | 10.14 | 259.41 | 34.08 | 282.67 | 0.5675 | 54.0 | 104.0 | |
| 0.00 | 1.00 | 0.00 | 0.61 | 14.45 | 259.95 | 34.62 | 289.85 | 0.5870 | -732.0 | -609.3 | |
| 0.00 | 4.27 | 0.00 | 2.60 | 14.15 | 259.78 | 34.45 | 289.41 | 0.5837 | -725.0 | -619.2 | |
| 0.00 | 1.82 | 0.00 | 1.10 | 14.45 | 259.18 | 33.85 | 290.16 | 0.5768 | -799.0 | -559.0 | |
| 0.00 | 0.55 | 0.00 | 0.33 | 16.38 | 258.40 | 33.07 | 293.77 | 0.5742 | 456.0 | 384.8 | |
| 0.00 | 0.73 | 0.00 | 0.42 | 11.55 | 256.01 | 30.68 | 286.33 | 0.5229 | 622.0 | 489.0 | |
| 0.00 | 1.18 | 0.00 | 0.68 | 12.56 | 255.34 | 30.01 | 288.51 | 0.5169 | 720.0 | 612.4 | |
| 0.00 | 0.64 | 0.00 | 0.37 | 13.05 | 254.58 | 29.25 | 289.81 | 0.5079 | 616.0 | 598.1 | |
| 0.00 | 2.45 | 0.00 | 1.40 | 13.66 | 253.91 | 28.58 | 291.34 | 0.5010 | 485.0 | 345.7 | |
| 0.00 | 2.09 | 0.00 | 1.18 | 10.65 | 253.44 | 28.11 | 285.61 | 0.4828 | 572.0 | 448.3 | |
| 0.00 | 1.73 | 0.00 | 0.97 | 9.77 | 252.97 | 27.64 | 284.00 | 0.4731 | 668.0 | 559.5 | |
| 0.00 | 1.09 | 0.00 | 0.62 | 14.15 | 252.90 | 27.57 | 292.90 | 0.4892 | 512.0 | 459.6 | |
| 0.00 | 0.82 | 0.00 | 0.47 | 16.39 | 253.23 | 27.90 | 296.92 | 0.5054 | 664.0 | 574.4 | |
| 0.00 | 0.73 | 0.00 | 0.41 | 12.52 | 252.59 | 27.26 | 289.84 | 0.4773 | 709.0 | 606.8 | |
| 0.00 | 1.09 | 0.00 | 0.62 | 14.47 | 252.73 | 27.40 | 293.62 | 0.4883 | 695.0 | 553.8 | |
| 0.00 | 1.09 | 0.00 | 0.62 | 14.17 | 252.55 | 27.22 | 293.15 | 0.4843 | 803.0 | 719.8 | |
| 0.00 | 1.00 | 0.00 | 0.57 | 17.73 | 252.58 | 27.25 | 299.85 | 0.5048 | 652.0 | 523.6 | |
| 0.00 | 0.91 | 0.00 | 0.51 | 13.38 | 251.75 | 26.42 | 292.10 | 0.4690 | 712.0 | 611.9 | |
| 0.00 | 3.54 | 0.00 | 1.97 | 12.03 | 251.28 | 25.95 | 289.59 | 0.4562 | 935.0 | 761.6 | |
| 0.00 | 1.27 | 0.00 | 0.71 | 11.61 | 251.06 | 25.73 | 288.81 | 0.4512 | 853.0 | 704.9 | |
| 0.00 | 1.45 | 0.00 | 0.83 | 19.15 | 251.56 | 26.23 | 303.24 | 0.5012 | 580.0 | 521.5 | |
| 0.00 | 1.09 | 0.00 | 0.61 | 14.40 | 250.79 | 25.46 | 294.85 | 0.4607 | 845.0 | 699.6 | |
| 0.00 | 1.64 | 0.00 | 0.89 | 15.49 | 247.19 | 21.86 | 300.32 | 0.4175 | 995.0 | 804.1 | |
| 0.00 | 0.91 | 0.00 | 0.50 | 20.61 | 245.64 | 20.31 | 312.29 | 0.4411 | 688.0 | 580.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
