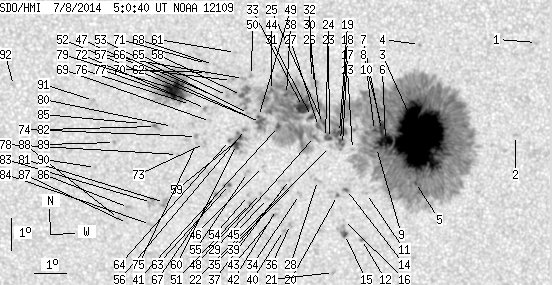

SDO HMI 2014-07-08 05:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 321.33 | 1851.79 | 163.14 | 940.93 | -7.84 | 220.56 | -4.77 | 158.18 | 0.2195 | 680.7 | 220.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-08 05:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.45 | 0.00 | 1.23 | -5.01 | 225.69 | 0.36 | 182.37 | 0.1512 | 731.0 | 633.7 | |
| 0.00 | 2.27 | 0.00 | 1.15 | -7.89 | 225.04 | -0.29 | 178.57 | 0.2008 | 760.0 | 494.0 | |
| 213.77 | 1578.31 | 108.29 | 800.71 | -7.96 | 222.08 | -3.25 | 164.40 | 0.2094 | 1770.3 | 363.2 | |
| 0.00 | 1.09 | 0.00 | 0.55 | -5.08 | 222.11 | -3.22 | 159.69 | 0.1621 | -709.0 | -599.7 | |
| 1.27 | -3.00 | 0.65 | -3.00 | -9.36 | 221.95 | -3.38 | 165.48 | 0.2332 | 844.1 | 999999 | |
| 13.99 | -3.00 | 7.10 | -3.00 | -8.05 | 221.04 | -4.29 | 159.88 | 0.2165 | 1246.7 | 999999 | |
| 3.82 | -3.00 | 1.93 | -3.00 | -7.74 | 220.92 | -4.41 | 158.84 | 0.2123 | 1151.5 | 999999 | |
| 0.27 | -3.00 | 0.14 | -3.00 | -7.59 | 220.92 | -4.41 | 158.58 | 0.2098 | 1135.7 | 999999 | |
| 0.27 | -3.00 | 0.14 | -3.00 | -8.27 | 220.75 | -4.58 | 159.04 | 0.2217 | 1047.0 | 999999 | |
| 1.00 | -3.00 | 0.51 | -3.00 | -7.74 | 220.70 | -4.63 | 157.91 | 0.2136 | 966.4 | 999999 | |
| 0.00 | 0.82 | 0.00 | 0.42 | -9.71 | 220.42 | -4.91 | 159.92 | 0.2466 | 242.0 | 146.1 | |
| 0.36 | 1.82 | 0.19 | 0.93 | -11.16 | 220.24 | -5.09 | 161.17 | 0.2706 | -977.0 | -789.0 | |
| 0.00 | 1.09 | 0.00 | 0.55 | -8.34 | 220.01 | -5.32 | 156.12 | 0.2276 | 597.0 | 449.2 | |
| 0.82 | 2.09 | 0.42 | 1.07 | -9.59 | 219.81 | -5.52 | 157.43 | 0.2485 | 897.0 | 718.2 | |
| 2.45 | 8.81 | 1.26 | 4.53 | -11.00 | 219.72 | -5.61 | 159.17 | 0.2712 | -1062.7 | -675.7 | |
| 0.00 | 0.82 | 0.00 | 0.42 | -10.56 | 219.69 | -5.64 | 158.49 | 0.2644 | 455.0 | 318.0 | |
| 0.27 | -3.00 | 0.14 | -3.00 | -8.18 | 219.70 | -5.63 | 154.62 | 0.2273 | 1172.0 | 999999 | |
| 1.18 | -3.00 | 0.60 | -3.00 | -8.06 | 219.64 | -5.69 | 154.14 | 0.2259 | 1264.7 | 999999 | |
| 8.27 | -3.00 | 4.20 | -3.00 | -7.81 | 219.62 | -5.71 | 153.54 | 0.2223 | 1188.3 | 999999 | |
| 0.55 | 1.64 | 0.28 | 0.84 | -9.78 | 219.52 | -5.81 | 156.71 | 0.2533 | 751.2 | 567.8 | |
| 0.00 | 1.73 | 0.00 | 0.89 | -12.20 | 219.35 | -5.98 | 159.50 | 0.2923 | -796.0 | -651.9 | |
| 0.00 | 1.54 | 0.00 | 0.79 | -8.25 | 219.33 | -6.00 | 153.29 | 0.2311 | 443.0 | 496.2 | |
| 1.09 | -3.00 | 0.55 | -3.00 | -8.00 | 219.31 | -6.02 | 152.69 | 0.2275 | 1052.4 | 999999 | |
| 0.27 | -3.00 | 0.14 | -3.00 | -7.97 | 219.18 | -6.15 | 152.15 | 0.2281 | 936.0 | 999999 | |
| 0.91 | -3.00 | 0.46 | -3.00 | -7.53 | 219.13 | -6.20 | 151.01 | 0.2220 | 1186.3 | 999999 | |
| 1.00 | -3.00 | 0.51 | -3.00 | -7.41 | 219.04 | -6.29 | 150.38 | 0.2209 | 1047.1 | 999999 | |
| 1.91 | -3.00 | 0.97 | -3.00 | -7.63 | 218.97 | -6.36 | 150.61 | 0.2247 | 853.1 | 999999 | |
| 0.00 | 2.18 | 0.00 | 1.12 | -9.31 | 218.91 | -6.42 | 153.74 | 0.2505 | -494.0 | -429.6 | |
| 0.73 | -3.00 | 0.37 | -3.00 | -7.94 | 218.84 | -6.49 | 150.80 | 0.2304 | 1043.4 | 999999 | |
| 0.00 | 6.09 | 0.00 | 3.08 | -6.33 | 218.87 | -6.46 | 147.04 | 0.2066 | -166.0 | -262.2 | |
| 2.18 | -3.00 | 1.11 | -3.00 | -7.32 | 218.76 | -6.57 | 149.09 | 0.2219 | 1059.6 | 999999 | |
| 0.00 | 0.73 | 0.00 | 0.37 | -6.14 | 218.78 | -6.55 | 146.18 | 0.2048 | -695.0 | -421.8 | |
| 16.17 | -3.00 | 8.21 | -3.00 | -7.01 | 218.49 | -6.84 | 147.30 | 0.2199 | 1122.1 | 999999 | |
| 0.00 | 2.73 | 0.00 | 1.40 | -9.75 | 218.34 | -6.99 | 152.57 | 0.2615 | -563.0 | -541.9 | |
| 0.00 | 1.00 | 0.00 | 0.51 | -9.47 | 218.13 | -7.20 | 151.34 | 0.2590 | -821.0 | -659.4 | |
| 0.00 | 2.54 | 0.00 | 1.31 | -10.70 | 218.04 | -7.29 | 153.21 | 0.2779 | -880.0 | -665.9 | |
| 0.00 | 1.73 | 0.00 | 0.88 | -9.29 | 218.04 | -7.29 | 150.69 | 0.2570 | -937.0 | -706.2 | |
| 1.36 | -3.00 | 0.69 | -3.00 | -6.64 | 218.00 | -7.33 | 144.52 | 0.2194 | 486.8 | 999999 | |
| 0.00 | 1.64 | 0.00 | 0.84 | -9.57 | 217.85 | -7.48 | 150.59 | 0.2627 | -889.0 | -771.1 | |
| 0.00 | 1.82 | 0.00 | 0.94 | -10.89 | 217.81 | -7.52 | 152.82 | 0.2825 | -875.0 | -746.5 | |
| 1.82 | -3.00 | 0.93 | -3.00 | -7.64 | 217.73 | -7.60 | 146.08 | 0.2359 | -992.3 | 999999 | |
| 0.00 | 1.64 | 0.00 | 0.84 | -10.23 | 217.61 | -7.72 | 151.06 | 0.2743 | -840.0 | -652.6 | |
| 0.00 | 2.09 | 0.00 | 1.08 | -10.42 | 217.54 | -7.79 | 151.18 | 0.2777 | -966.0 | -787.9 | |
| 0.91 | -3.00 | 0.46 | -3.00 | -6.52 | 217.54 | -7.79 | 142.52 | 0.2224 | 549.8 | 999999 | |
| 0.00 | 2.36 | 0.00 | 1.22 | -9.89 | 217.34 | -7.99 | 149.57 | 0.2716 | -810.0 | -601.3 | |
| 0.00 | 0.73 | 0.00 | 0.37 | -8.89 | 217.21 | -8.12 | 147.14 | 0.2584 | -531.0 | -407.6 | |
| 4.45 | -3.00 | 2.27 | -3.00 | -7.52 | 217.18 | -8.15 | 143.88 | 0.2396 | -937.4 | 999999 | |
| 0.00 | 1.09 | 0.00 | 0.56 | -9.73 | 217.12 | -8.21 | 148.60 | 0.2712 | -966.0 | -716.8 | |
| 0.82 | -3.00 | 0.42 | -3.00 | -7.33 | 217.12 | -8.21 | 143.22 | 0.2377 | -1150.8 | 999999 | |
| 0.00 | 1.82 | 0.00 | 0.92 | -6.06 | 216.92 | -8.41 | 139.08 | 0.2230 | -1038.0 | -783.2 | |
| 0.00 | 1.54 | 0.00 | 0.80 | -10.05 | 216.77 | -8.56 | 148.14 | 0.2789 | -984.0 | -863.9 | |
| 0.00 | 1.27 | 0.00 | 0.65 | -7.36 | 216.84 | -8.49 | 142.38 | 0.2410 | -716.0 | -618.3 | |
| 0.00 | 2.18 | 0.00 | 1.11 | -7.24 | 216.81 | -8.52 | 141.97 | 0.2397 | -913.0 | -707.7 | |
| 0.00 | 1.27 | 0.00 | 0.66 | -9.80 | 216.75 | -8.58 | 147.58 | 0.2755 | -961.0 | -831.0 | |
| 0.00 | 2.91 | 0.00 | 1.49 | -9.08 | 216.74 | -8.59 | 146.06 | 0.2655 | -781.0 | -659.2 | |
| 0.00 | 2.45 | 0.00 | 1.25 | -7.74 | 216.70 | -8.63 | 142.89 | 0.2474 | -1152.0 | -851.5 | |
| 0.00 | 2.18 | 0.00 | 1.11 | -6.16 | 216.67 | -8.66 | 138.53 | 0.2270 | -978.0 | -852.8 | |
| 1.54 | 21.89 | 0.79 | 11.16 | -6.68 | 216.60 | -8.73 | 139.80 | 0.2345 | -1214.6 | -898.0 | |
| 1.54 | 21.44 | 0.79 | 10.98 | -7.99 | 216.54 | -8.79 | 142.99 | 0.2524 | -1253.6 | -767.4 | |
| 3.91 | -59.00 | 2.00 | -59.00 | -8.21 | 216.41 | -8.92 | 143.11 | 0.2567 | -1021.1 | 999999 | |
| 0.00 | 1.18 | 0.00 | 0.60 | -5.35 | 216.44 | -8.89 | 135.30 | 0.2197 | -877.0 | -682.9 | |
| 0.00 | 3.36 | 0.00 | 1.71 | -6.22 | 216.30 | -9.03 | 137.52 | 0.2320 | -946.0 | -819.6 | |
| 0.64 | 3.36 | 0.33 | 1.73 | -9.46 | 216.16 | -9.17 | 145.15 | 0.2762 | -1144.0 | -817.2 | |
| 0.45 | -59.00 | 0.23 | -59.00 | -8.08 | 216.20 | -9.13 | 142.16 | 0.2573 | -937.2 | 999999 | |
| 0.00 | 3.00 | 0.00 | 1.53 | -6.69 | 216.17 | -9.16 | 138.43 | 0.2394 | -979.0 | -784.1 | |
| 0.00 | 0.91 | 0.00 | 0.46 | -6.75 | 215.85 | -9.47 | 137.66 | 0.2438 | -794.0 | -607.2 | |
| 0.00 | 1.73 | 0.00 | 0.89 | -9.77 | 215.71 | -9.62 | 144.53 | 0.2849 | -845.0 | -750.5 | |
| 0.00 | 0.91 | 0.00 | 0.46 | -5.73 | 215.75 | -9.58 | 134.35 | 0.2326 | -782.0 | -520.4 | |
| 0.00 | 1.00 | 0.00 | 0.51 | -7.50 | 215.62 | -9.71 | 138.97 | 0.2559 | -684.0 | -500.2 | |
| 0.00 | 1.27 | 0.00 | 0.65 | -5.98 | 215.53 | -9.80 | 134.45 | 0.2382 | -1057.0 | -785.3 | |
| 0.00 | 1.36 | 0.00 | 0.69 | -5.70 | 215.53 | -9.80 | 133.62 | 0.2349 | -925.0 | -731.1 | |
| 0.00 | 2.36 | 0.00 | 1.21 | -7.10 | 215.47 | -9.86 | 137.48 | 0.2525 | -1142.0 | -931.2 | |
| 0.00 | 2.54 | 0.00 | 1.31 | -8.18 | 215.42 | -9.91 | 140.11 | 0.2669 | -945.0 | -708.8 | |
| 0.00 | 2.73 | 0.00 | 1.40 | -7.97 | 215.17 | -10.16 | 138.89 | 0.2668 | -1350.0 | -905.7 | |
| 0.00 | 0.73 | 0.00 | 0.37 | -8.19 | 215.17 | -10.16 | 139.41 | 0.2697 | -844.0 | -693.9 | |
| 0.00 | 1.27 | 0.00 | 0.65 | -6.98 | 215.01 | -10.32 | 135.84 | 0.2564 | -837.0 | -640.6 | |
| 3.45 | 100.57 | 1.77 | 51.55 | -6.76 | 214.70 | -10.63 | 134.40 | 0.2575 | -1078.9 | -458.8 | |
| 0.00 | 1.27 | 0.00 | 0.66 | -8.54 | 214.56 | -10.77 | 138.61 | 0.2807 | -698.0 | -500.7 | |
| 27.89 | -77.00 | 14.29 | -77.00 | -6.52 | 214.52 | -10.81 | 133.22 | 0.2569 | -1267.3 | 999999 | |
| 0.00 | 0.73 | 0.00 | 0.37 | -7.67 | 214.43 | -10.90 | 136.10 | 0.2715 | -599.0 | -439.5 | |
| 0.00 | 5.18 | 0.00 | 2.69 | -10.04 | 214.10 | -11.23 | 140.82 | 0.3048 | -911.0 | -794.2 | |
| 0.00 | 3.45 | 0.00 | 1.78 | -7.67 | 213.89 | -11.43 | 134.75 | 0.2779 | -1152.0 | -839.8 | |
| 0.00 | 6.00 | 0.00 | 3.12 | -10.05 | 213.69 | -11.64 | 139.82 | 0.3092 | -852.0 | -762.2 | |
| 0.00 | 2.36 | 0.00 | 1.23 | -10.74 | 213.63 | -11.70 | 141.11 | 0.3187 | -806.0 | -668.2 | |
| 0.00 | 1.09 | 0.00 | 0.56 | -7.58 | 213.46 | -11.87 | 133.45 | 0.2821 | -749.0 | -515.8 | |
| 0.00 | 2.91 | 0.00 | 1.52 | -10.21 | 212.96 | -12.37 | 138.44 | 0.3193 | -937.0 | -653.7 | |
| 0.00 | 0.73 | 0.00 | 0.38 | -10.72 | 212.90 | -12.43 | 139.36 | 0.3261 | -656.0 | -513.5 | |
| 0.00 | 1.64 | 0.00 | 0.86 | -10.56 | 212.62 | -12.71 | 138.42 | 0.3272 | -716.0 | -629.4 | |
| 0.00 | 1.45 | 0.00 | 0.75 | -8.19 | 212.59 | -12.74 | 132.96 | 0.2996 | -808.0 | -630.2 | |
| 0.00 | 1.18 | 0.00 | 0.62 | -8.97 | 211.96 | -13.37 | 133.47 | 0.3162 | -803.0 | -544.0 | |
| 0.00 | 1.45 | 0.00 | 0.75 | -6.89 | 211.97 | -13.36 | 128.26 | 0.2935 | -814.0 | -528.6 | |
| 0.00 | 2.27 | 0.00 | 1.19 | -6.46 | 209.44 | -15.89 | 122.44 | 0.3237 | -341.0 | -318.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
